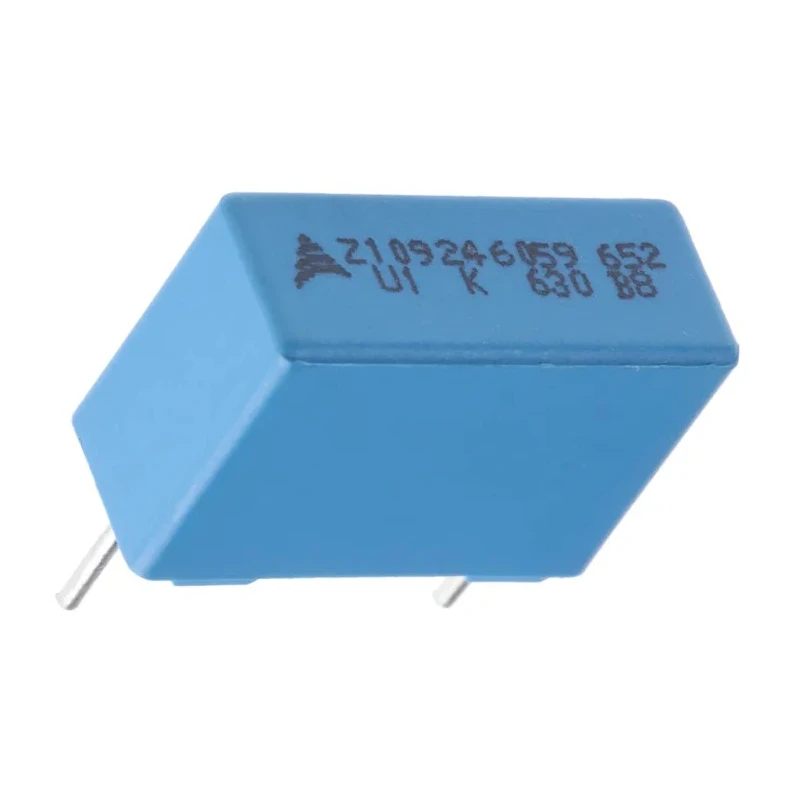

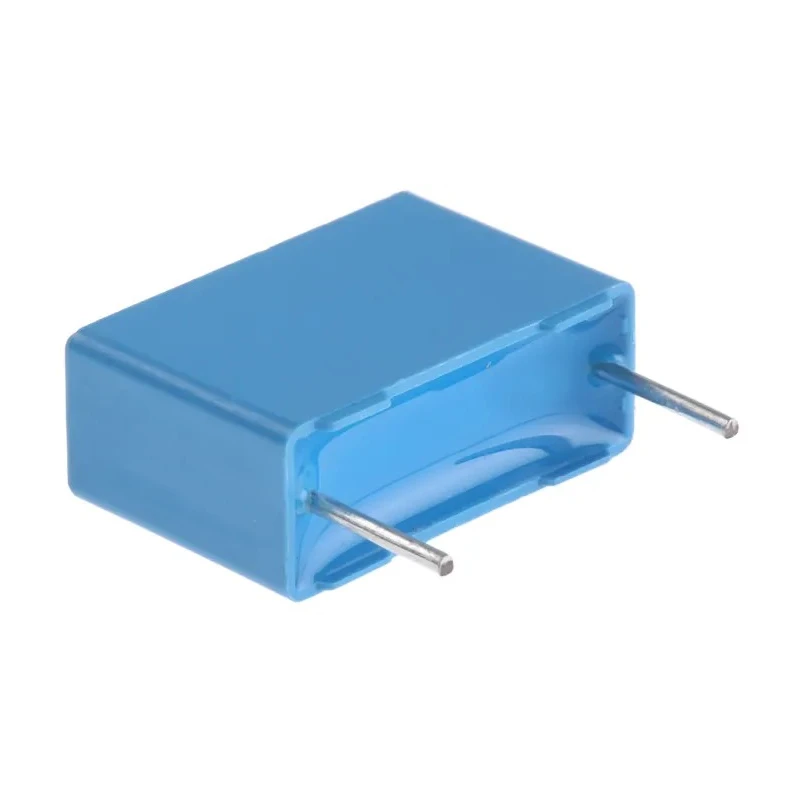

TDK Film Capacitor 100 nF 250V AC 630 V DC Through Hole 2 Pin B32652A6104K000

TDK B32652A6104K000 Film Capacitor is a high-quality passive component designed for electronic applications requiring stable capacitance and high pulse strength. With a capacitance of 100 nF and rated voltages of 250V AC and 630 V DC, this capacitor is suitable for a variety of industrial and commercial electronic uses.

The capacitor features Through Hole mounting style with a 15 mm lead pitch and two pins of 0.8 mm diameter, ensuring secure PCB connections. It is constructed using wound capacitor technology with an internal series connection for voltage ratings greater or equal to 1250 V DC. The component is encapsulated in a flame retardant plastic case compliant with UL 94 V-0 standards, protected further by an epoxy resin seal for optimal durability.

Designed to operate at temperatures up to 100°C, this capacitor meets the automotive standard AEC-Q200 Rev D, demonstrating its suitability for stringent automotive and industrial environments. It maintains high contact reliability and compact dimensions, measuring 18 mm in length, 12.5 mm in height, and 7 mm in width, making it ideal for space-constrained assemblies.

Its robust construction and high pulse strength make it particularly useful in applications such as TV series correction, flyback transformers in televisions, and electronic ballast circuits where stable and reliable performance is critical.

Constructed with wound capacitor technology with internal series connection for VR ≥1250 V DC. Encapsulated in flame retardant plastic case to UL 94 V-0 with epoxy resin sealing. Rated for 250V AC and 630 V DC operation with capacitance of 100 nF.

Through Hole mounting with 15 mm lead pitch and 2 pins, 0.8 mm lead diameter. Meets automotive standard AEC-Q200 Rev D for high reliability in automotive applications. Maximum operating temperature of 100°C enables use in demanding environments.

Dimensions: 18 mm length, 12.5 mm height, 7 mm width. Certified UL and RoHS compliant for quality assurance and environmental safety.

This TDK film capacitor is well-suited for industrial electronics, automotive systems, consumer electronics manufacturing, and other applications requiring durable, high performance capacitors.
