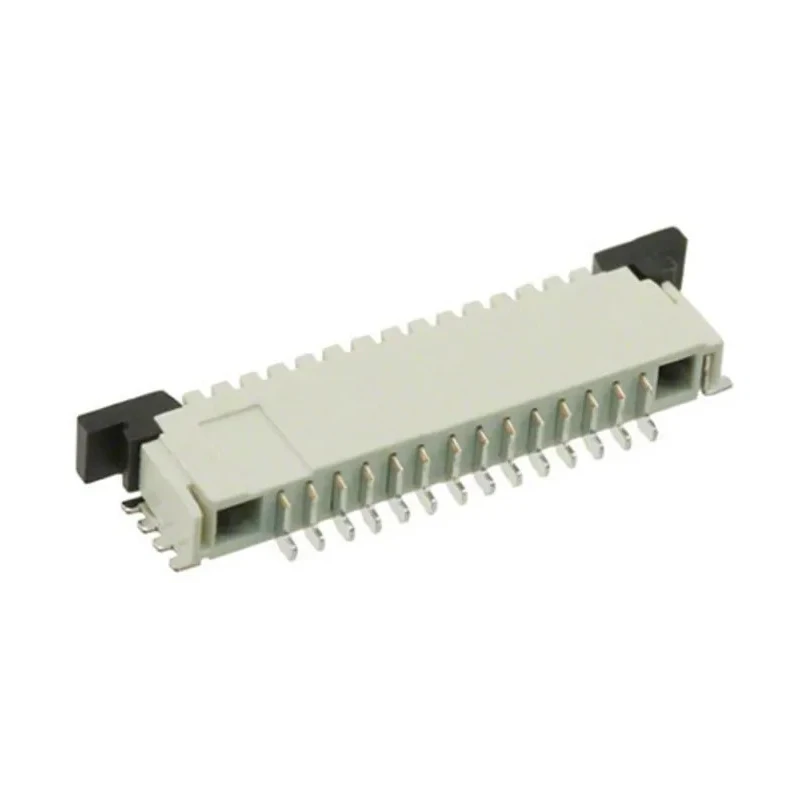

TE Connectivity FPC 1 mm Pitch 14 Way Right Angle Female FPC Connector, Solder 1-84953-4

TE Connectivity 1-84953-4 FPC Connector is a high-quality 14 way female connector featuring a compact 1 mm pitch design. This surface-mount connector is solder terminated and designed with a right angle orientation and top contact position, enabling efficient routing on printed circuit boards where space and reliability are critical.

The contacts are made of phosphor bronze, plated with tin over nickel to ensure excellent electrical conductivity and corrosion resistance. The connector features a Zero Insertion Force (ZIF) slide lock actuator that facilitates easy secure insertion of the flexible printed circuit (FPC) without damaging delicate contacts. This mechanism also improves mating cycle durability and retention, especially in high vibration environments.

The housing is constructed using liquid crystal polymer, providing both mechanical robustness and stability at operating temperatures from -40 to 85 degrees Celsius. The connector supports an operating voltage of 200 volts AC and can handle currents up to 1 ampere, making it suitable for various industrial, electronic, and medical equipment applications.

Solder tabs are included for increased mechanical retention to the PCB during manufacturing and in-field usage. The single-row 14-position design efficiently supports multiple signal paths within a minimal footprint, ideal for compact handheld scanners, set-top boxes, business equipment, and industrial devices.

The connector's compact form factor allows deployment in devices where board space is constrained. The slide lock ZIF actuator reduces connector wear and enhances reliability. The phosphor bronze contact material delivers consistent electrical performance.

Operating temperature range suits a broad spectrum of demanding applications. Right angle orientation optimizes PCB layout in complex assemblies. Solder termination and tabs provide robust join to circuit boards.

These FPC Connectors are fundamental components in modern electronics, facilitating reliable, compact connections between flexible circuits and PCBs in diverse environments including industrial, medical, and commercial electronics.
