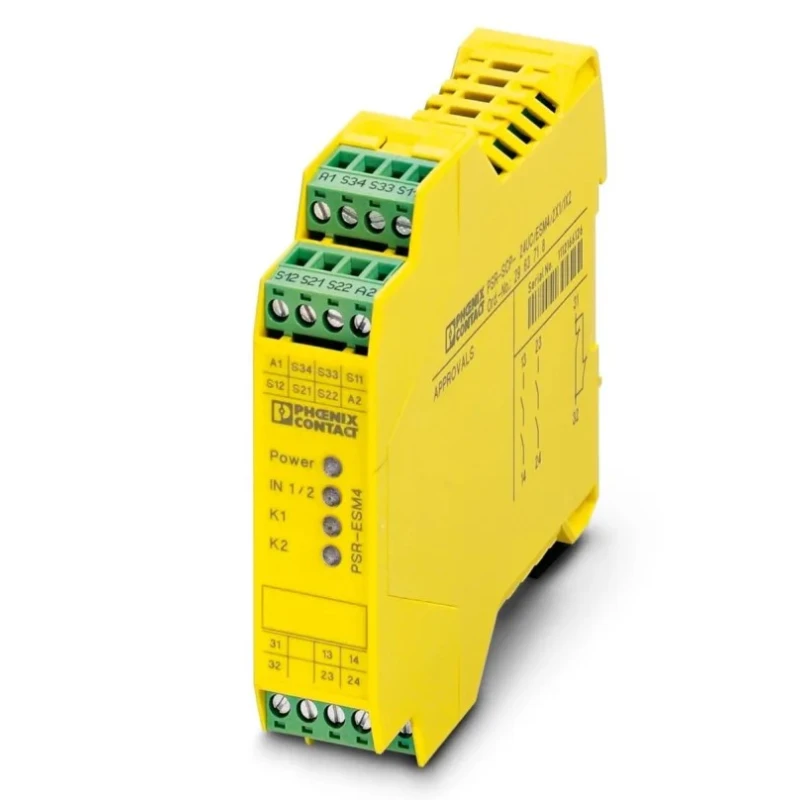

Phoenix Contact Safety Relay 24V dc, 2 Safety Contacts, SPDT, Manual Reset, DIN Rail Mount 2963718
Specifications
| Country of Origin | Germany |
|---|---|
| Power Consumption | 1.56W |
| Brand | Phoenix Contact |
| Height | 99mm |
| Length | 50mm |
| Model | 2963718 |
| IP Rating | IP20 |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | PSR-SCP |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Safety Category | CAT 4, EN ISO 13849 |
| Terminal type | Screw |
| Standards/Approvals | DIN EN 50178/VDE 0160 |
| Reset Method | Manual |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
| Contact Current | 6A |
| Safety Contacts | 2 |
Key Features
- Equipped with 2 safety contacts configured as SPDT for dual operation.
- Manual reset method enhances safety by requiring operator intervention.
- DIN rail mount ensures easy and secure installation in control panels.
- Operates at coil voltage of 24V dc with a power consumption of 1.56W.
- Rated for switching voltages up to 250V ac/dc with a contact current of 6A.
- Operating temperature range from -20°C to 55°C supports various environments.
- IP20 rated enclosure offers protection against solid objects but not liquids.
- Designed with screw terminals for reliable electrical connections.
Product Description
The Phoenix Contact 2963718 is a high-quality safety relay designed for emergency stop and safety door monitoring applications. Operating at 24V dc coil voltage, this device includes two enabling current paths and one signalling current path, ensuring reliable and safe operation in industrial automation systems.
It features manual reset functionality, requiring operator intervention to restart after a safety event, thus enhancing workplace safety. The relay is housed in a compact enclosure suitable for DIN rail mounting, simplifying integration into control panels.
With a switching capacity of up to 250V ac/dc and a contact current rating of 6A, it supports a wide range of electrical loads. The device also meets stringent safety standards, including CAT 4 per EN ISO 13849, making it suitable for safety-critical environments.
The relay has an operating temperature range from -20°C to 55°C and comes with an IP20 protection rating, providing defense against solid objects. Screw-type terminals allow secure and durable electrical connections.
Two safety contacts with SPDT configuration for versatile control. Manual reset method to enhance operational safety. Compact design optimized for DIN rail mounting. Coil voltage: 24V dc with low power consumption of 1.56W.
Switching voltage rated at 250V ac/dc with a 6A current capacity. Compliance with DIN EN 50178 and VDE 0160 standards. Safety category CAT 4 per EN ISO 13849 certification. Size dimensions: 99mm height, 50mm length, and 22.5mm width.
This safety relay is ideal for industrial automation, manufacturing, electrical control panels, and safety monitoring systems. Its robust construction and compliance with international standards ensure dependable performance in demanding applications.
EnvMart offers this Phoenix Contact Safety Relay with guaranteed product integrity and technical support for industrial and laboratory applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this safety relay is 24V dc.
It features a contact configuration of SPDT (Single Pole Double Throw) with two safety contacts.
The maximum switching voltage for this safety relay is 250V ac/dc.
The contact current rating of this relay is 6A.
The dimensions of this safety relay are 99mm in height, 50mm in length, and 22.5mm in width.
The power consumption of this safety relay is 1.56W.
The operating temperature range for this unit is from -20°C to 55°C.
This safety relay uses a manual reset method, requiring operator intervention to restart after a safety event.
It is designed with screw-type terminals for reliable electrical connections.
The IP rating of this safety relay is IP20, providing protection against solid objects but not liquids.
This relay complies with safety category CAT 4 per EN ISO 13849 and meets DIN EN 50178 and VDE 0160 standards.
This safety relay is designed for DIN rail mounting, allowing for easy and secure installation in control panels.
