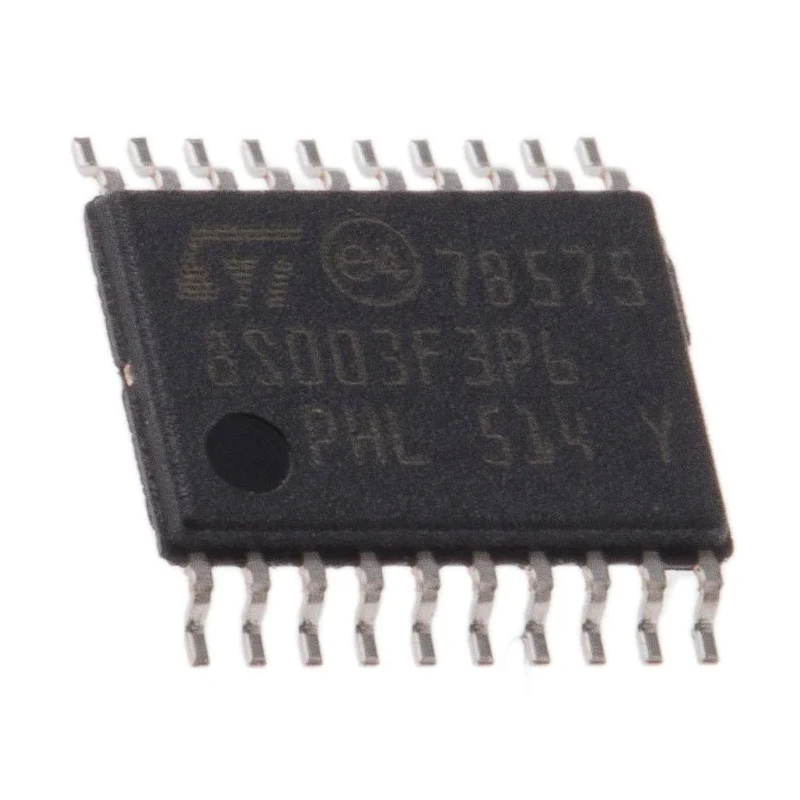

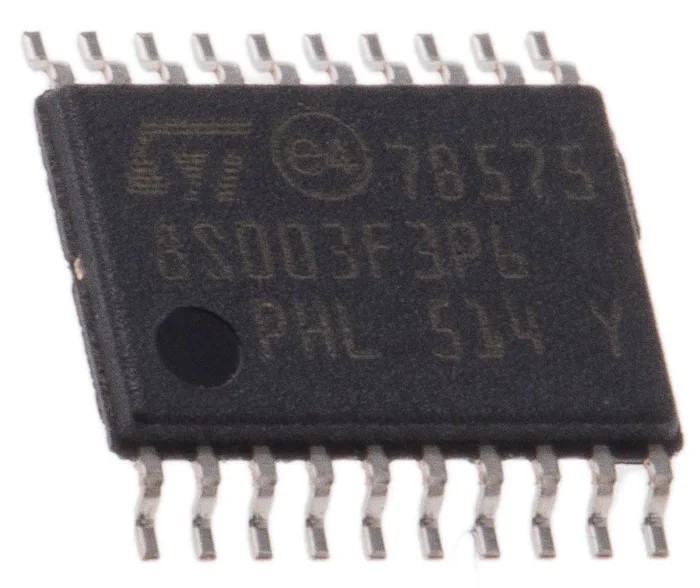

STMicroelectronics 8-bit STM8S Microcontroller 16 MHz 8kB Flash, 20-Pin TSSOP STM8
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 6.6mm |
| Model | STM8 |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | STM8S |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Interface Type | UART, SPI, I2P |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 330mW |
| Minimum Supply Voltage | 2V |
| Device Core | STM8 |
| Program Memory Size | 8kB |
| Maximum Clock Frequency | 16MHz |
| Number of Programmable I/Os | 22 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8kB |
| Number of Timers | 1, 2 |
| Instruction Set Architecture | Harvard |
| ADCs | 5 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- This microcontroller offers a maximum clock frequency of 16 MHz for efficient processing.
- It has a built-in 8kB program memory of FLASH type, suitable for complex embedded applications.
- The device supports UART, SPI, and I2P interfaces facilitating diverse communication options.
- Operating voltage ranges from 2V to 5.5V, ensuring compatibility with various power supplies.
- It includes 22 programmable I/O pins and 1kB of RAM to handle multiple tasks.
- The microcontroller integrates five 10-bit ADC channels and two analogue comparators for precise signal measurement.
- Its operating temperature range extends from -40°C to 85°C, suitable for industrial environments.
- The compact 20-Pin TSSOP package measures 6.6mm length, 4.5mm width, and 1.05mm height.
Product Description
STMicroelectronics STM8S003F3P6 is a high-performance 8-bit STM8S series microcontroller designed for advanced embedded control applications. Operating at a clock speed of 16 MHz, this device provides an optimal balance of processing capability and power efficiency.
The microcontroller features an 8kB FLASH program memory allowing for sophisticated firmware development with rapid program execution. Coupled with 1kB of RAM, it supports multitasking and complex algorithms effectively.
It is housed in a 20-Pin Thin Shrink Small Outline Package (TSSOP), ensuring a compact footprint suitable for space-constrained designs. The device supports multiple communication interfaces including UART, SPI, and I2P, making it versatile for integration into a variety of embedded systems.
The STM8S003F3P6 includes 22 programmable input/output pins providing flexible system interface options, along with five 10-bit ADC channels and two analogue comparators that enable precise sensing and monitoring capabilities.
This microcontroller operates reliably within a wide voltage range from 2V up to 5.5V and functions across a temperature range of -40°C to 85°C, making it well suited for industrial, automotive, consumer electronics, and general embedded control applications.
Additional features include Harvard architecture for efficient instruction processing, a single and dual timer for timing control, and a maximum power dissipation of 330mW contributing to robust performance with low energy consumption.
This device supports the STM8S mainstream 8-bit microcontroller series with advanced features. Its package and pin configuration offer ease of PCB design and integration. Application areas include industrial automation, instrumentation, and consumer electronics.
The microcontroller complies with RoHS standards ensuring environmental safety. Developers benefit from a rich peripheral set and support ecosystem by STMicroelectronics. Explore more Microcontrollers and electronic components at EnvMart to find the right device for your projects and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM8S003F3P6 microcontroller has a maximum clock frequency of 16 MHz, which allows for efficient processing in embedded applications.
It features an 8kB FLASH program memory, suitable for complex firmware development and rapid program execution.
This microcontroller supports UART, SPI, and I2P interfaces, facilitating diverse communication options for integration into embedded systems.
The operating voltage range for this microcontroller is from 2V to 5.5V, ensuring compatibility with various power supplies.
This model includes 22 programmable I/O pins, providing flexible options for system interfacing.
It operates within a temperature range of -40°C to 85°C, making it suitable for industrial environments.
The TSSOP package of this microcontroller measures 6.6mm in length, 4.5mm in width, and 1.05mm in height.
This microcontroller has a RAM size of 1kB, which supports multitasking and complex algorithms effectively.
It integrates five 10-bit ADC channels, allowing for precise signal measurement.
The maximum power dissipation for the STM8S003F3P6 is 330mW, contributing to its efficient performance.
The STM8S003F3P6 utilizes Harvard architecture for efficient instruction processing.
This model is suitable for applications in industrial automation, instrumentation, and consumer electronics due to its versatile features.
