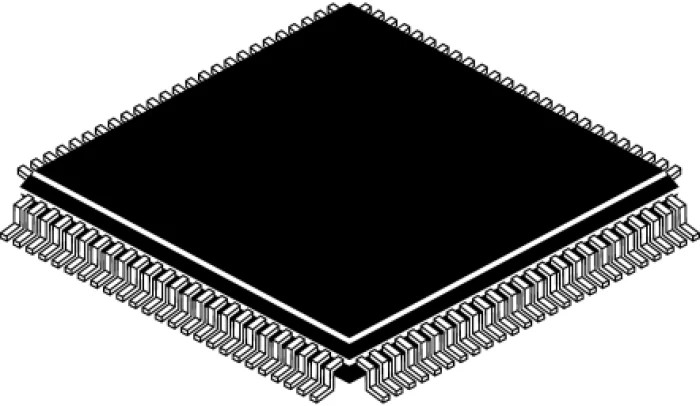

STMicroelectronics STM32F4 Series 32-Bit ARM Cortex M4 Microcontroller 168 MHz 1.024MB Flash 100-Pin LQFP STM32F405VGT7TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 14.2mm |
| Model | STM32F405VGT7TR |
| Width | 14.2mm |
| Mount Type | Surface |
| Series | STM32F4 |
| Maximum Operating Temperature | 105°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB OTG (High Speed support) |
| Audio | audio PLL and 2 full duplex I²S |
| Ram size | 192kB |
| Communication Interfaces | USARTs, SPI, I²C, CAN, SDIO |
| Timers | 16-bit and 32-bit (168MHz) |
| Standards/Approvals | FBI |
| Pin Count | 100 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 465mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | ARM Cortex M4 |
| Program Memory Size | 1.024MB |
| Maximum Clock Frequency | 168MHz |
| Number of Timers | 2, 12 |
| Instruction Set Architecture | DSP |
| ADCs | 16 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 12 Bit |
| Temperature ranges | -40 to +85°C or -40 to +105°C |
| Operation Voltage | 1.7 to 3.6V |
| Analogue | 12-bit DACs, 12-bit ADCs |
| STM32F415 only | integrates a crypto/hash processor |
Key Features
- Operates using ARM Cortex M4 core with DSP and floating point unit.
- Features 192kB RAM and FLASH program memory size of 1.024MB.
- Maximum clock frequency is up to 168 MHz for efficient processing.
- Package type is 100-pin LQFP suitable for surface mount technology.
- Supports multiple communication interfaces including USART, SPI, I²C, CAN, and SDIO.
- Includes 16× 12-bit ADCs and 2× 12-bit DACs for advanced analog functions.
- Operating voltage ranges from 1.8V minimum to 3.6V maximum.
- Temperature range from -40°C to 105°C supports harsh environments.
Product Description
STMicroelectronics STM32F405VGT7TR is a high-performance 32-bit ARM Cortex M4 microcontroller from the STM32F4 series designed for embedded applications requiring complex processing and peripheral integration.
Featuring a 168 MHz clock frequency, 1.024MB FLASH memory, and 192kB RAM, this MCU delivers powerful computing with low power consumption capabilities. The device is housed in a 100-pin LQFP package optimized for surface mounting.
The microcontroller includes a floating point unit (FPU) and digital signal processing (DSP) instructions to accelerate signal processing tasks. It supports multiple communication protocols including USARTs, SPI, I²C, CAN, and SDIO, enabling versatile connectivity options for industrial, automotive, consumer electronics, and communication systems.
Advanced analog features include 16 channels of 12-bit ADCs and 2 channels of 12-bit DACs. The microcontroller also supports USB OTG with high-speed capabilities and provides audio functionality with audio PLL and full duplex I²S interfaces.
It operates across a voltage range of 1.8V to 3.6V and ensures reliable operation in temperatures from -40°C up to 105°C, making it suitable for demanding and harsh operating environments. Maximum power consumption is low at 465 mW, supporting energy efficient system designs.
ARM Cortex M4 core with DSP and FPU for high performance. 168 MHz maximum clock frequency with 1.024MB FLASH memory. 192kB RAM, 16x 12-bit ADCs, and 2x 12-bit DACs for analog interfacing. Supports USART, SPI, I²C, CAN, SDIO, USB OTG interfaces.
Operation voltage 1.8V to 3.6V, temperature range -40°C to +105°C. 100-Pin LQFP package suitable for surface mount applications. Low power dissipation of 465 mW promotes energy efficiency.
This microcontroller is ideal for industrial automation, embedded control systems, automotive electronics, and consumer device applications requiring high processing capability with integrated peripherals.
Explore STMicroelectronics STM32F4 series and other Microcontroller solutions on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F405VGT7TR microcontroller has a maximum clock frequency of 168 MHz, enabling efficient processing capabilities.
It features a program memory size of 1.024MB FLASH, allowing for substantial code storage.
This model supports multiple communication interfaces including USARTs, SPI, I²C, CAN, and SDIO for versatile connectivity options.
The microcontroller operates within a voltage range of 1.8V to 3.6V, ensuring compatibility with various power supply systems.
It includes 192kB of RAM, which supports efficient data handling and processing tasks.
This microcontroller is housed in a 100-pin LQFP package, which is suitable for surface mount technology.
The STM32F405VGT7TR operates effectively in temperatures ranging from -40°C to +105°C, making it suitable for harsh environments.
This microcontroller features 16 channels of 12-bit ADCs and 2 channels of 12-bit DACs for advanced analog functions.
The dimensions of this microcontroller are 14.2mm in length and width, with a height of 1.45mm.
It is ideal for applications in industrial automation, embedded control systems, automotive electronics, and consumer devices that require high processing capability.
The maximum power dissipation for the STM32F405VGT7TR is 465 mW, supporting energy-efficient designs.
This model operates using the ARM Cortex M4 core, which includes a floating point unit and DSP instructions for enhanced performance.
