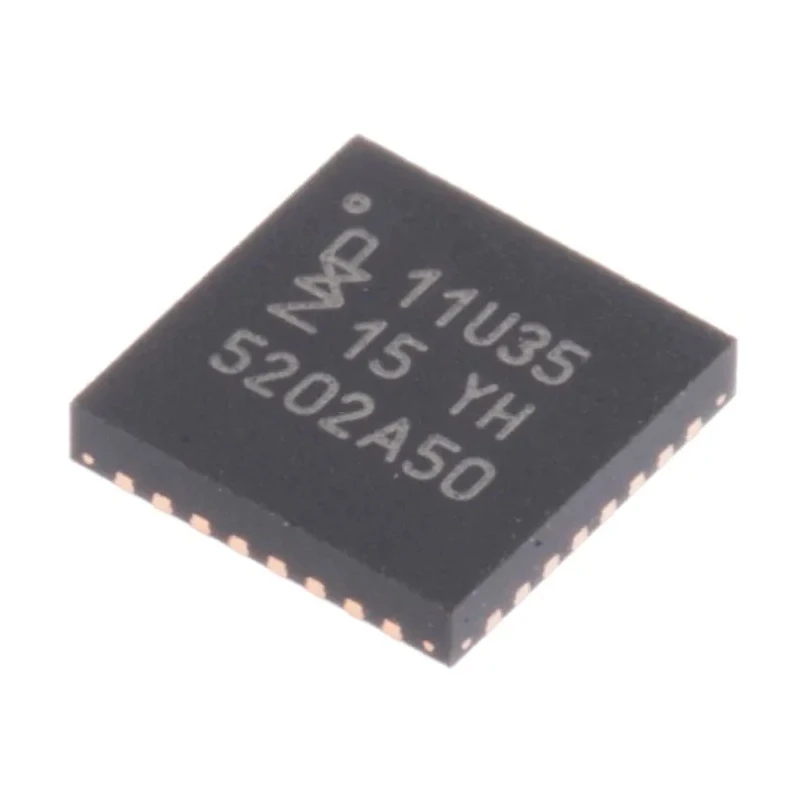

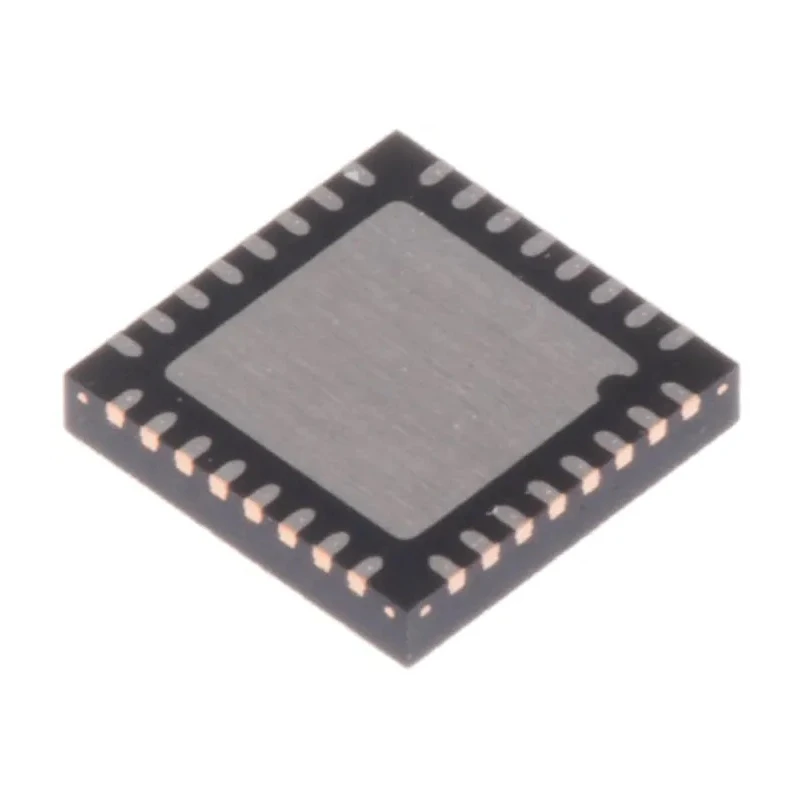

NXP 32 bit ARM Cortex M0 Microcontroller LPC11U35FHI33/501, 50 MHz, 64kB FLASH, 33-Pin QFN

The NXP LPC11U35FHI33/501 is a high-efficiency 32 bit ARM Cortex M0 microcontroller designed to deliver advanced processing power suitable for various embedded applications. Operating at a speed of 50 MHz, it ensures swift execution for a wide range of control and sensing tasks. It incorporates 64kB FLASH memory, enabling ample program storage while maintaining a compact footprint in a 33-Pin QFN surface mount package measuring 5.1 mm by 5.1 mm, with a height of 850 μm.

Featuring 12kB of RAM, the microcontroller supports complex data operations while having 26 programmable I/Os, allowing connectivity to sensors, actuators, and other peripherals. Its operating voltage range of 1.8V to 3.6V makes it ideal for battery-powered and low-power applications. The device is engineered to operate in harsh environments with an extended temperature range from -40°C to +85°C.

Additional features include four hardware timers, eight 10-bit ADC channels for precise analog measurement, and a low maximum power dissipation of 1.5W to favor energy efficiency. The architecture utilizes the RISC instruction set optimized for the ARM Cortex M0 core, providing high performance with reduced code size beneficial for embedded system developments.

This microcontroller is suitable for use in industrial control, consumer electronics, home automation, and portable devices. Its compact size and integrated analog and digital peripherals reduce the need for additional components, simplifying board design and reducing overall system cost.

Built on ARM Cortex M0 architecture for efficient processing. Operates at a maximum of 50 MHz for high-speed applications. 64kB internal FLASH memory for program storage. Compact 33-pin QFN package for space-saving implementations.

Offers 12kB RAM for data operations. 26 programmable I/O pins for device interfacing. Wide supply voltage range of 1.8V to 3.6V supports diverse power schemes. Extended operating temperature range from -40°C to 85°C. Includes 4 timers and 8 10-bit ADCs for control and sensing.

Low power consumption with maximum power dissipation of 1.5W.

This NXP LPC11U35FHI33/501 microcontroller combines robust performance with low power consumption and compact sizing, making it an excellent choice for modern embedded system designs. Explore the Electronics & Electricals category on EnvMart for more Microcontrollers and related components.
