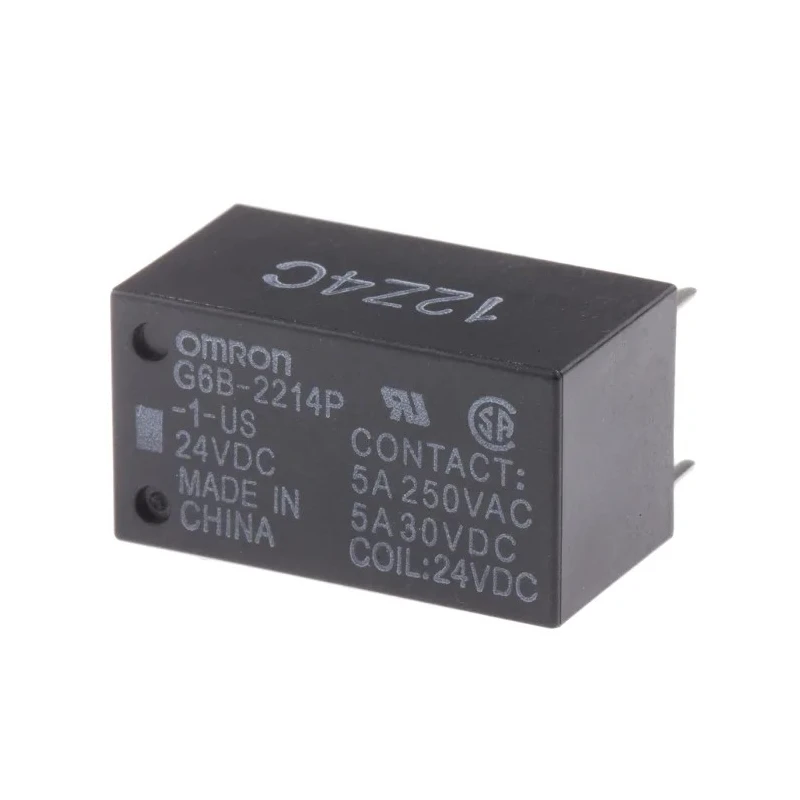

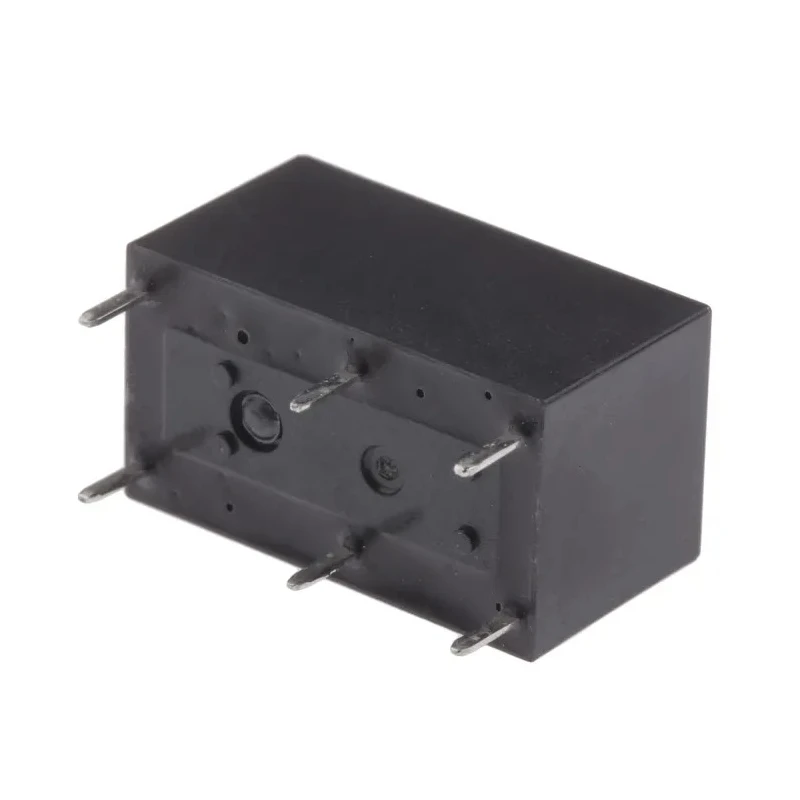

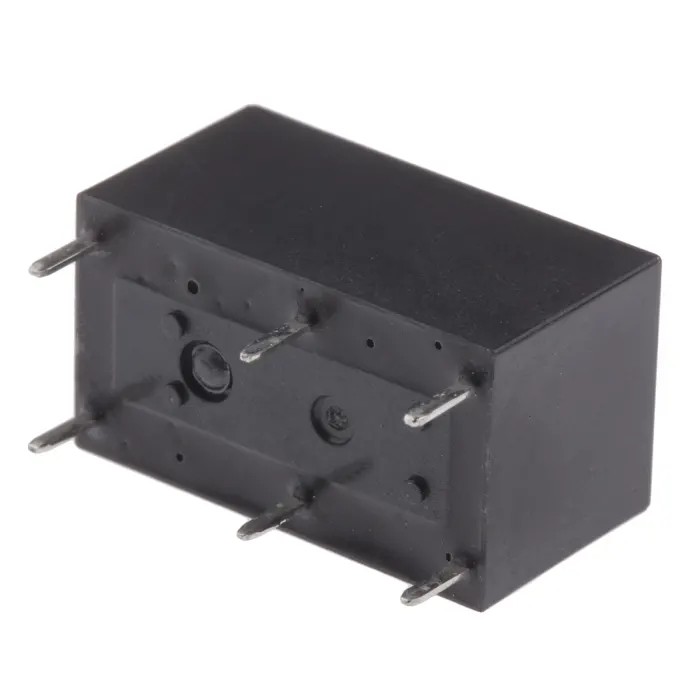

Omron PCB Power Relay 24V DC Coil 5A Switching Current DPST G6B-2214P-1-US DC24
Specifications
| Country of Origin | China |
|---|---|
| Brand | Omron |
| Height | 11mm |
| Length | 20mm |
| Model | G6B-2214P-1-US DC24 |
| Width | 11mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6B |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 5A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 200mW |
| Switching Power | 300mW |
| Subminiature | 20x10x10mm |
Key Features
- Features a DPST contact configuration for dual pole single throw switching.
- Compact subminiature size of 20x10x10mm ensures space-saving PCB mounting.
- Low coil power consumption of 200mW enables energy-efficient operation.
- Silver alloy contact material offers reliable conductivity and durability.
- Suitable for operating temperatures from -25°C to 70°C for varying environments.
- Switching AC voltage up to 380V and DC voltage up to 125V for versatile applications.
- High dielectric strength with impulse withstand voltage of 6kV ensures robustness.
- UL recognized and CSA certified for quality and safety compliance.
Product Description
Omron G6B-2214P-1-US DC24 PCB Power Relay features a 24V DC coil voltage and a maximum switching current of 5A with a DPST contact configuration. This subminiature relay measures 20mm in length, 11mm in width, and 11mm in height, making it suitable for compact PCB mounting. It has a low coil power consumption of 200mW, enhancing energy efficiency in industrial and commercial applications.
Constructed with silver alloy contact material, it ensures excellent conductivity and reliable switching performance. The relay operates efficiently within a temperature range from -25°C to 70°C, supporting robust performance in various environmental conditions. It supports switching AC voltages up to 380V and DC voltages up to 125V, allowing versatile use cases in electrical and automation systems.
The unique moving loop armature design reduces magnetic interference and contact bounce time. The relay features high dielectric strength with an impulse withstand voltage rating of 6kV, ensuring durability and operational safety. Recognized by UL and certified by CSA, this relay meets stringent quality and safety standards.
Omron G6B series Power Relays are ideal for output circuits in control equipment across industrial automation, manufacturing, HVAC systems, and other commercial electrical applications. Their compact size and low power consumption contribute to enhanced production efficiency.
DPST contact configuration for dual pole single throw functionality. Compact subminiature design measuring 20x10x10mm for PCB mounting. Low 200mW coil power consumption minimizes energy use. Silver alloy contacts offer excellent durability and conductivity.
Operating temperature range from -25°C to 70°C suitable for diverse environments. Supports switching AC voltage up to 380V and DC voltage up to 125V. Impulse withstand voltage of 6kV provides high dielectric strength. UL and CSA approvals assure quality and compliance.
Perfect for control output applications in industrial automation and electrical equipment.
This Omron PCB power relay combines compactness, reliability, and efficiency to meet demanding electrical and automation requirements. It is a robust solution for enhancing machine performance and operational safety.
Discover more high-quality relays and electrical components at EnvMart to optimize your industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
The maximum switching current for this model is 5A.
This relay measures 20mm in length, 11mm in width, and 11mm in height.
It features a DPST (Dual Pole Single Throw) contact configuration.
The coil power consumption is 200mW, which enhances energy efficiency.
The relay operates efficiently within a temperature range of -25°C to 70°C.
It supports switching AC voltage up to 380V and DC voltage up to 125V.
The contacts are made of silver alloy, ensuring reliable conductivity.
It has a high dielectric strength with an impulse withstand voltage of 6kV.
This model is designed for PCB mounting.
This relay is UL recognized and CSA certified, meeting quality and safety standards.
The contact resistance is 30mΩ.
