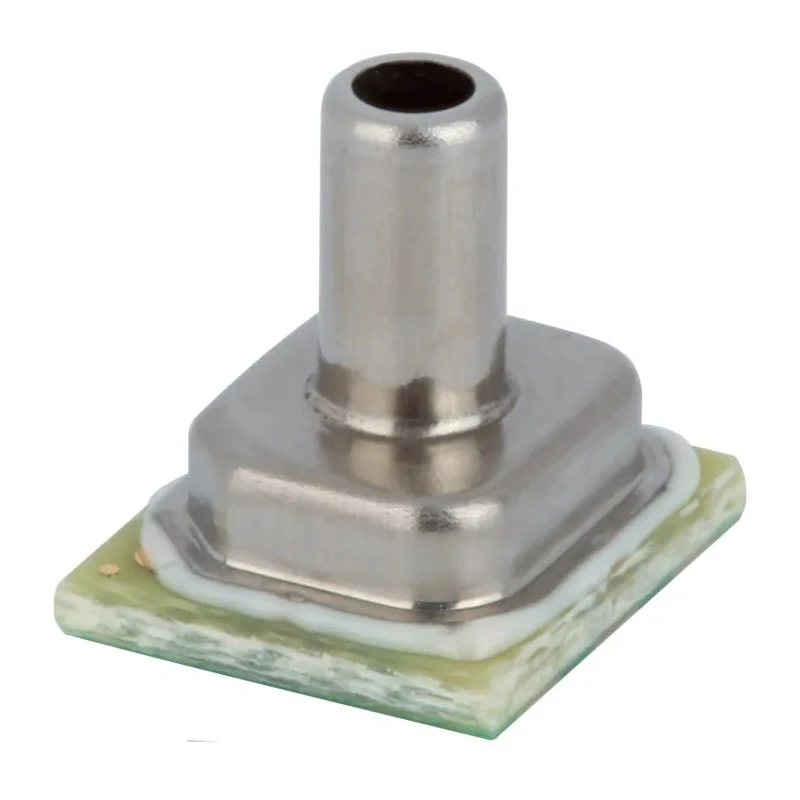

Honeywell Technologies Piezoresistive Pressure Sensor, 206.84 kPa Max Operating Pressure, Polyamide ABP2LANT030PG2A3XX
Specifications
| Country of Origin | China |
|---|---|
| Brand | Honeywell |
| Material | Polyamide |
| Maximum Operating Pressure | 206.84 kPa |
| Response time | 7.5ms |
| Model | ABP2LANT030PG2A3XX |
| Series | ABP2 |
| Maximum Operating Temperature | +110°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, ISO 9001 |
| Minimum Operating Pressure | 206.843kPa |
Key Features
- Offers rapid 7.5 ms response time for transient pressure detection.
- Features polyamide material construction suitable for liquid-media environments.
- Provides calibrated, temperature-compensated output for accuracy.
- Available output options include 24-bit digital (I2C or SPI) and ratiometric analogue signals.
- Compatible with extended temperature ranges from -40°C to +110°C.
- Manufactured under ISO 9001 and RoHS standards ensuring quality and compliance.
- Includes gel protection for electronics to withstand condensation and non-corrosive liquids.
- Ideal for ventilators, HVAC transmitters, patient monitoring, pneumatic control, and IoT industrial applications.
Product Description
Honeywell ABP2LANT030PG2A3XX is a high-performance piezoresistive pressure sensor from the ABP2 series with a maximum operating pressure of 206.84 kPa. It operates reliably across a broad temperature range of -40°C to +110°C, making it suitable for demanding industrial and medical environments. Constructed with polyamide material for wetted surfaces, it provides durability and chemical resistance essential for liquid media applications.
This pressure sensor delivers fast and accurate measurements with a 7.5 ms response time and offers 24-bit digital output options compatible with I2C or SPI protocols along with a ratiometric analogue output. The device supports ultra-low power consumption through standby modes, optimizing energy efficiency in embedded systems.
Calibration and temperature compensation ensure precise pressure readings with minimal offset, sensitivity divergence, and long-term stability. Designed for applications such as ventilators, portable respiratory devices, HVAC transmitters, process gas monitoring, blood-pressure analysers, pneumatic valves, and IoT-enabled industrial automation, this sensor meets both technical performance and regulatory standards, including RoHS and ISO 9001.
The gel coating protects the internal electronics from moisture and condensation, allowing use in challenging environments involving non-corrosive liquids. Manufactured in China under stringent quality controls, this sensor offers robust integration capabilities for various control systems.
Rapid 7.5 ms response time for fast pressure transients. Wide operating temperature range from -40°C to +110°C. Polyamide wetted surfaces for chemical and moisture resistance. Calibrated and temperature-compensated for accuracy.
Multi-output configuration: 24-bit digital (I2C/SPI) and analogue. Gel protection for condensation and liquid exposure. Certified to RoHS and ISO 9001 standards. Suitable for medical, HVAC, industrial automation, and pneumatic control applications.
Explore a wide range of Pneumatic Pressure Sensors at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 206.84 kPa.
This model has a rapid response time of 7.5 ms, suitable for transient pressure detection.
It operates reliably within a temperature range of -40°C to +110°C.
The wetted surfaces of this sensor are constructed from polyamide, providing chemical and moisture resistance.
It offers 24-bit digital output options compatible with I2C or SPI protocols, as well as a ratiometric analogue output.
Yes, it is designed for various applications including ventilators, patient monitoring, and portable respiratory devices.
It is manufactured under ISO 9001 and RoHS standards, ensuring quality and compliance.
Yes, it includes gel protection for the electronics to withstand condensation and exposure to non-corrosive liquids.
Dimensions and weight specifications are not provided in the available data.
It features calibration and temperature compensation to ensure precise pressure readings with minimal offset and long-term stability.
It is suitable for applications such as HVAC transmitters, pneumatic control, and IoT industrial automation.
This model is manufactured in China under stringent quality controls.
