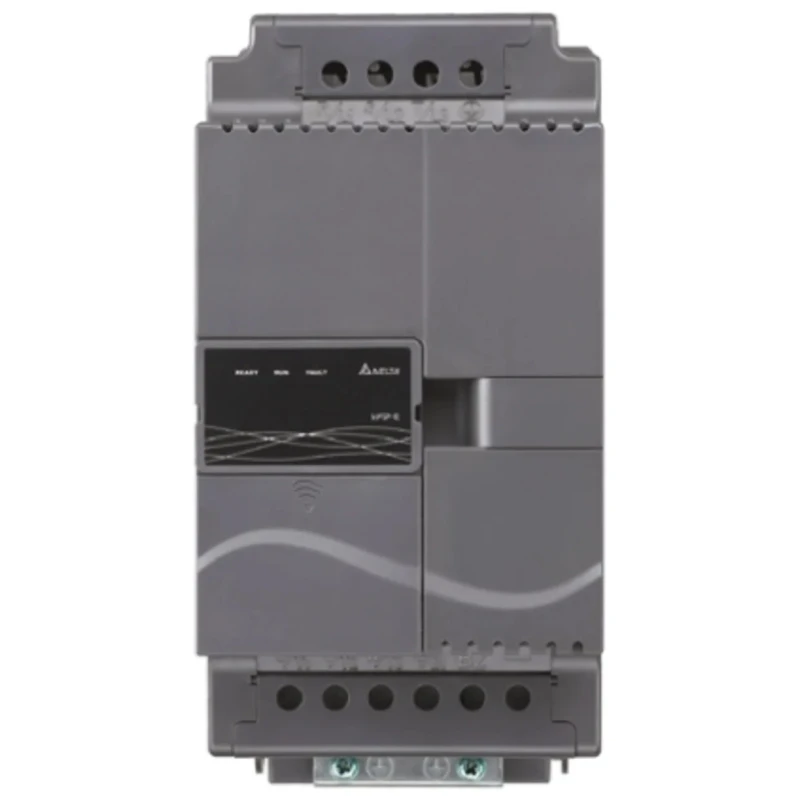

Delta Electronics Inverter Drive 7.5 kW 3 Phase Variable Frequency VFD-E Series 460V AC 18 A VFD075E43A

Delta Electronics VFD075E43A Inverter Drive is a high-performance 7.5 kW variable frequency drive with a 3 phase input and output, designed to operate at 460V AC with a maximum output current of 18 A. This VFD-E Series drive employs sensorless vector AC micro drive technology, delivering constant torque for low horsepower applications. It is IP20 rated and designed for side mounting, making it suitable for compact installation environments.

The modular and compact design allows for flexible extension options, including optional Fieldbus Modules such as DeviceNet, Profibus, LonWorks, and CANopen. The built-in PLC function enables users to program and execute simple Ladder Logic programs directly on the drive, adding versatility and control.

Electrical noise immunity is enhanced by an integrated EMI filter and RFI-switch for mains, reducing interference and ensuring reliable operation. The drive facilitates easy DC BUS sharing, which optimizes multi-drive configurations by reducing wiring complexity and cost.

Robust protection mechanisms are provided to safeguard the drive and connected motors from faults, promoting system reliability. The drive is compatible with AC motors and supports an output frequency range from 0.1 Hz up to 600 Hz, accommodating a wide variety of operational needs.

Operating reliably within ambient temperatures from -10°C to +50°C, this inverter drive is well suited to industrial use in applications such as smaller cranes, washing machines, grinding machines, drilling machines, woodworking machinery, webbing looms, air conditioning units for large buildings, and water supply systems for large facilities.

Employs sensorless vector AC micro drive technology for precise motor control. Modular design with flexible extension capabilities. Built-in PLC function for Ladder Logic programming. Integrated EMI filter and mains RFI-switch for interference protection.

Supports easy DC BUS sharing for multi-drive systems. Complete protection features for enhanced reliability. Optional Fieldbus Modules for communication flexibility. IP20 rated with side mount installation. Wide ambient temperature operation range (-10 to +50°C).

Compatible with AC motors across various applications. Explore the category Inverter Drives on EnvMart to find more power control solutions for industrial and commercial applications from trusted brands like Delta Electronics.
