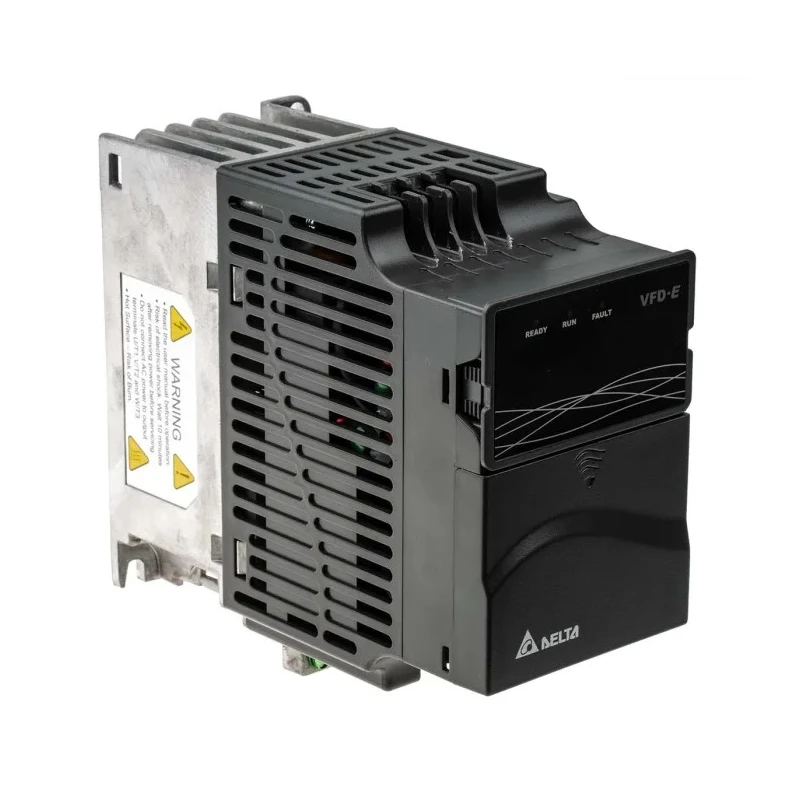

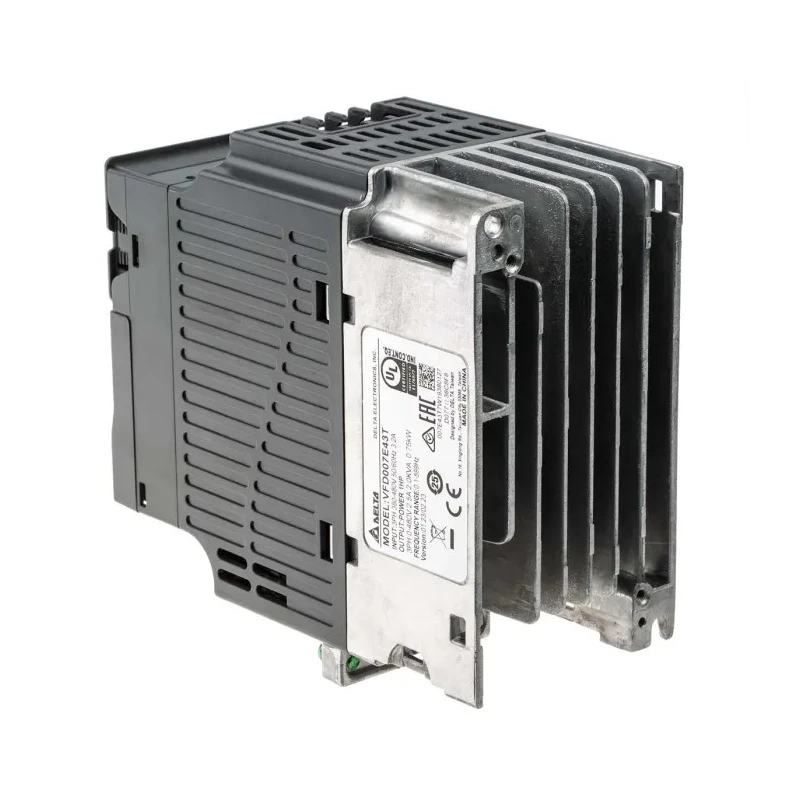

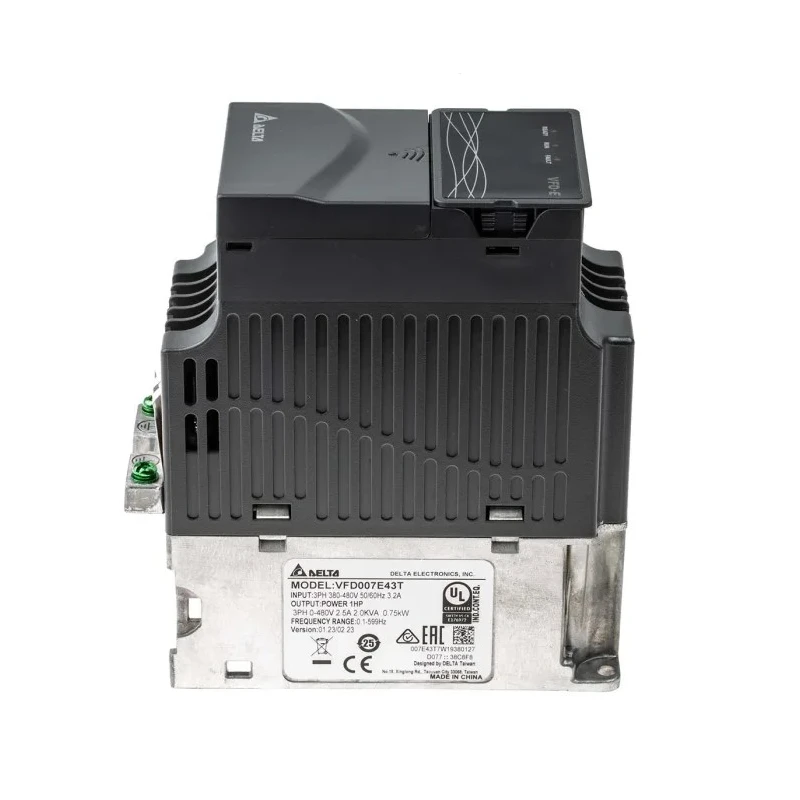

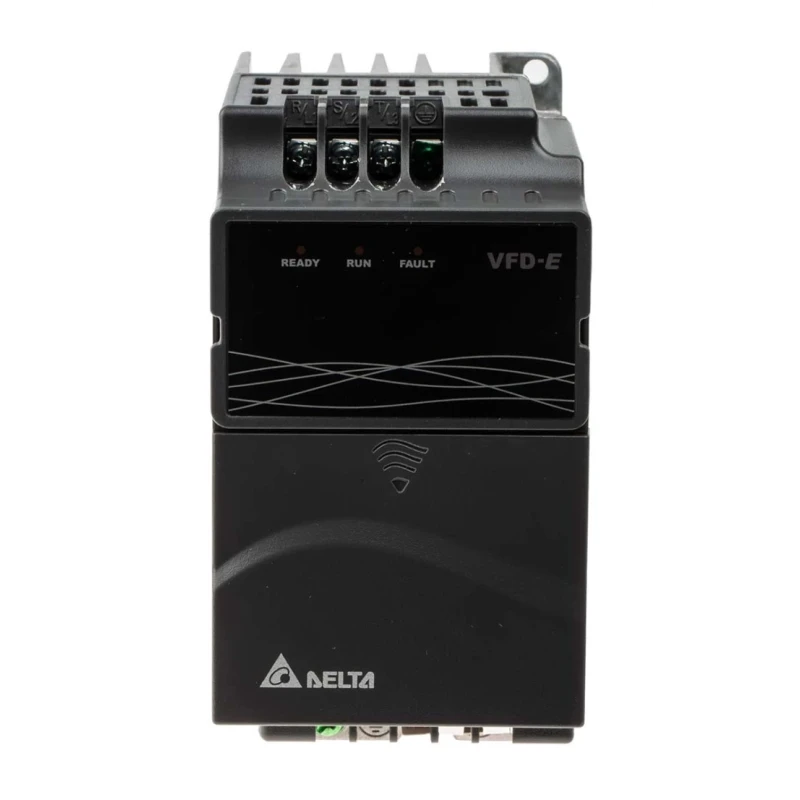

Delta Electronics Inverter Drive 750 W 3 Phase VFD-E Series 460V AC 2.5 A VFD007E43T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Delta Electronics |
| Model | VFD007E43T |
| IP Rating | IP20 |
| Drive Type | Variable Frequency |
| Mount Type | Side |
| Overall Length | 142mm |
| Series | VFD-E |
| Overall Width | 72mm |
| Power Rating | 750W |
| Maximum Operating Temperature | +50°C |
| Output Frequency | 599Hz |
| Minimum Operating Temperature | -10°C |
| Number of Phases | 3 |
| Maximum Output Current | 2.5A |
| Overall Depth | 152mm |
| Minimum Supply Voltage | 460V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | AC Motor |
Key Features
- Rated power output of 750 watts for reliable motor control.
- Designed for three phase AC motor applications.
- Operating voltage of 460 volts AC with IP20 enclosure rating.
- Compact modular design with overall dimensions 142mm length, 72mm width, 152mm depth.
- Output frequency range from 0.1 to 599 Hz for versatile motor speed control.
- Maximum output current of 2.5 amperes with side mounting orientation.
- Built-in PLC function and EMI filter to enhance operational flexibility and interference reduction.
- Suitable for industrial applications such as cranes, washing machines, grinding, drilling, wood machines, and HVAC systems.
Product Description
Delta Electronics VFD007E43T inverter drive is a 750 watt, 3 phase sensorless vector AC micro drive from the VFD-E series, designed to provide precise variable frequency control for AC motors. It operates on 460V AC supply voltage and supports output frequencies up to 599 Hz, suitable for constant torque industrial applications.
The drive features a compact modular design with flexible extension options and a built-in PLC functionality allowing users to execute ladder logic programs for customized control tasks. With an IP20 protection rating and a side mounting type, it fits well in controlled industrial environments.
Additional features include a built-in EMI filter, easy DC BUS sharing capability, RFI-switch for mains interference control, and support for optional fieldbus modules including DeviceNet, Profibus, LonWorks, and CANopen. The drive does not include a keypad; ordering separately is required for user interface needs.
This inverter drive is ideal for a broad range of applications such as smaller cranes, washing machines, grinding machines, drilling machines, wood machinery, webbing looms, large building air conditioning, and water supply systems.
Rated power output of 750 watts for reliable motor control. Designed for three phase AC motor applications. Operating voltage of 460 volts AC with IP20 enclosure rating. Compact modular design with overall dimensions 142mm length, 72mm width, 152mm depth.
Output frequency range from 0.1 to 599 Hz for versatile motor speed control. Maximum output current of 2.5 amperes with side mounting orientation. Built-in PLC function and EMI filter to enhance operational flexibility and interference reduction.
Suitable for industrial applications such as cranes, washing machines, grinding, drilling, wood machines, and HVAC systems. Temperature operating range from -10°C to +50°C. Energy-saving and environmentally conscious design as part of Delta's Better World Product initiative.
Explore additional Inverter Drives and automation solutions by browsing EnvMart’s comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this inverter drive is 750 watts.
The maximum output current for the VFD007E43T is 2.5 amperes.
It has an output frequency range from 0.1 to 599 Hz, allowing for versatile motor speed control.
The overall dimensions are 142 mm in length, 72 mm in width, and 152 mm in depth.
This model is designed for three-phase AC motor applications.
The operating voltage for this unit is 460 volts AC.
The inverter drive has an IP20 enclosure rating.
The operating temperature range is from -10°C to +50°C.
No, the VFD007E43T does not include a keypad; it must be ordered separately for user interface needs.
It includes a built-in PLC function and EMI filter to enhance operational flexibility and reduce interference.
It is suitable for industrial applications such as cranes, washing machines, grinding machines, drilling machines, and HVAC systems.
This inverter drive is part of the VFD-E series.
