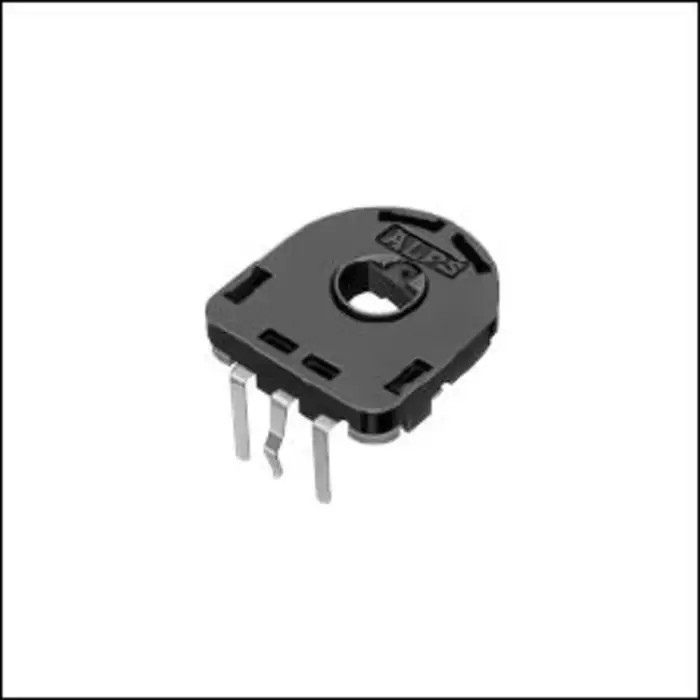

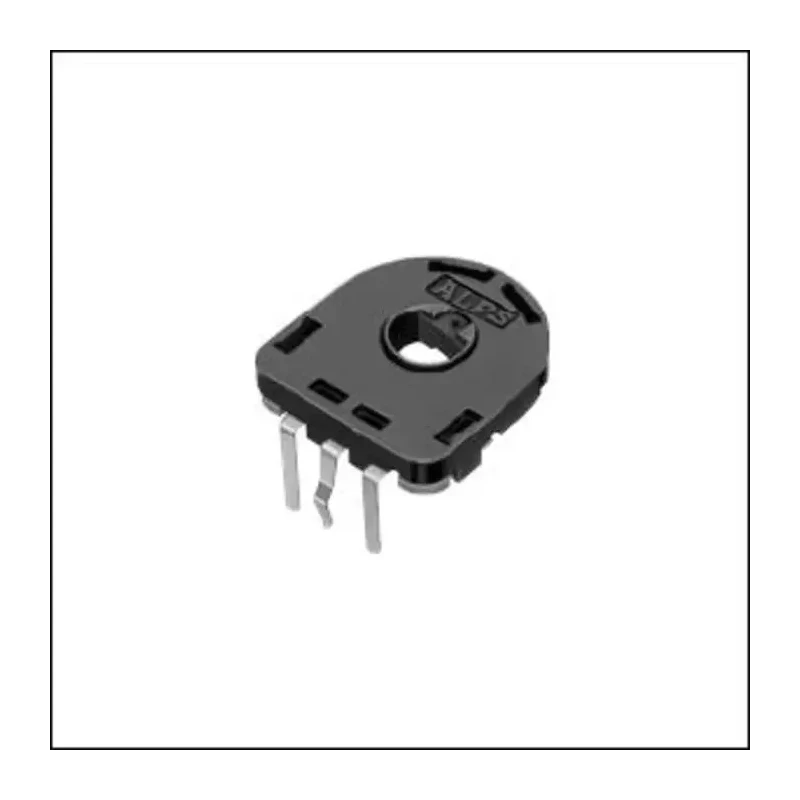

Alps Alpine Through Hole Position Sensor 5V, 3-Pin RDC501051A
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Alps Alpine |
| Height | 5mm |
| Length | 19mm |
| Model | RDC501051A |
| Sensor Type | Position Sensor |
| Width | 6.9mm |
| Mount Type | Through Hole |
| Series | RDC50 |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Supply Voltage | 5V |
Key Features
- Enables accurate position detection in various electronic devices.
- Features a through hole mounting type for secure attachment.
- Operates within a temperature range from -40°C to 120°C.
- Has a total resistance of 10kΩ ensuring reliable electrical performance.
- Compact size with dimensions 19mm length, 6.9mm width, and 5mm height.
- Effective electrical angle is 333.3° for wide measurement range.
- Vertical control part orientation facilitates easy integration on PCBs.
- Manufactured in Japan adhering to high quality standards.
Product Description
The Alps Alpine RDC501051A is a high-quality through hole Position Sensor designed for precise rotary position detection in electronic circuits. Operating at a maximum supply voltage of 5V, this 3-pin sensor provides a total resistance of 10kΩ and an effective electrical angle of 333.3° which makes it ideal for a variety of industrial and commercial applications.
The sensor features a through hole mount type with a vertical control part orientation for robust and reliable installation on printed circuit boards via a manual DIP mounting method. Its compact dimensions of 19mm length, 6.9mm width, and 5mm height enable easy accommodation in dense electronic assemblies.
Designed to operate reliably even in extreme conditions, the RDC501051A functions within a broad temperature range from -40°C to 120°C, making it suitable for automotive, industrial, and consumer electronics applications where thermal resilience is critical.
Manufactured in Japan, this sensor meets rigorous quality standards to ensure consistent performance and durability. Although it does not carry specific industry approvals, its design and build quality adhere to trusted industry practices.
Typical applications include motion control systems, robotics, instrumentation, and other electronic systems requiring accurate position measurement. The sensor’s rotary type mechanism allows for smooth angular sensing over a wide rotation range.
Enables accurate position detection in various electronic devices. Features a through hole mounting type for secure attachment. Operates within a temperature range from -40°C to 120°C. Has a total resistance of 10kΩ ensuring reliable electrical performance.
Compact size with dimensions 19mm length, 6.9mm width, and 5mm height. Effective electrical angle is 333.3° for wide measurement range. Vertical control part orientation facilitates easy integration on PCBs. Manufactured in Japan adhering to high quality standards.
Explore the Electronics & Electricals category at EnvMart for a diverse range of sensors and components from trusted manufacturers like Alps Alpine.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The effective electrical angle of this position sensor is 333.3°, allowing for a wide measurement range in position detection applications.
The dimensions of the RDC501051A are 19mm in length, 6.9mm in width, and 5mm in height, making it compact for integration into electronic assemblies.
This position sensor operates reliably within a maximum temperature of 120°C, suitable for various applications that may encounter high temperatures.
It features a through hole mounting type, which allows for secure attachment to printed circuit boards (PCBs).
The total resistance of this sensor is 10kΩ, ensuring reliable electrical performance during operation.
The minimum operating temperature for the RDC501051A is -40°C, making it suitable for use in extreme cold conditions.
This model is designed with a 3-pin configuration, facilitating easy integration into electronic circuits.
The RDC501051A is manufactured in Japan, adhering to high quality standards.
This position sensor is suitable for applications in motion control systems, robotics, instrumentation, and other electronic systems requiring accurate position measurement.
The maximum supply voltage for the RDC501051A is 5V, making it compatible with various electronic devices.
The RDC501051A belongs to the RDC50 series of position sensors, designed for precise rotary position detection.
The RDC501051A is a position sensor specifically designed for rotary position detection in electronic circuits.
