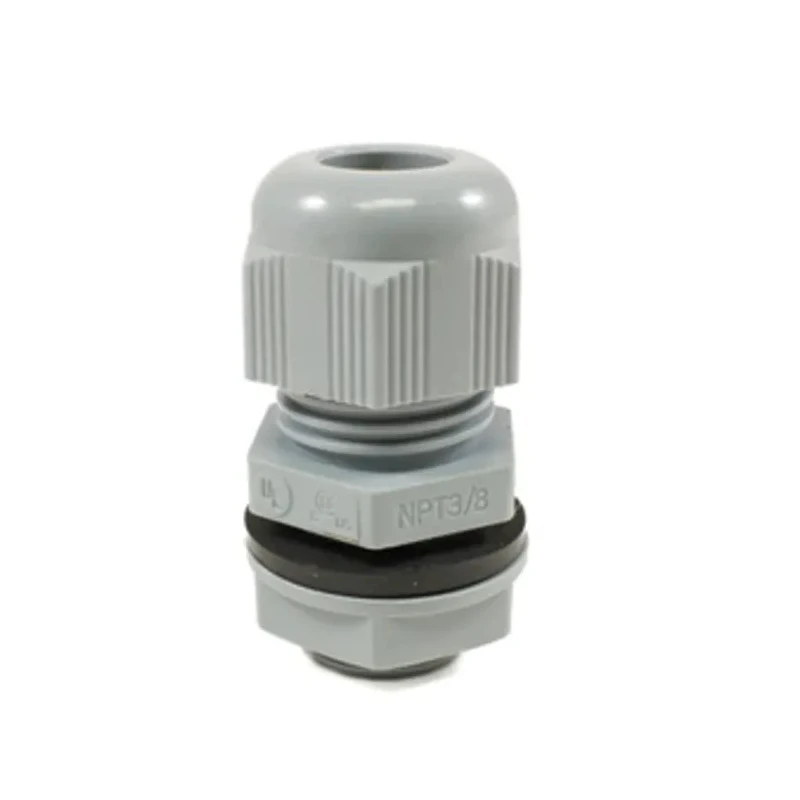

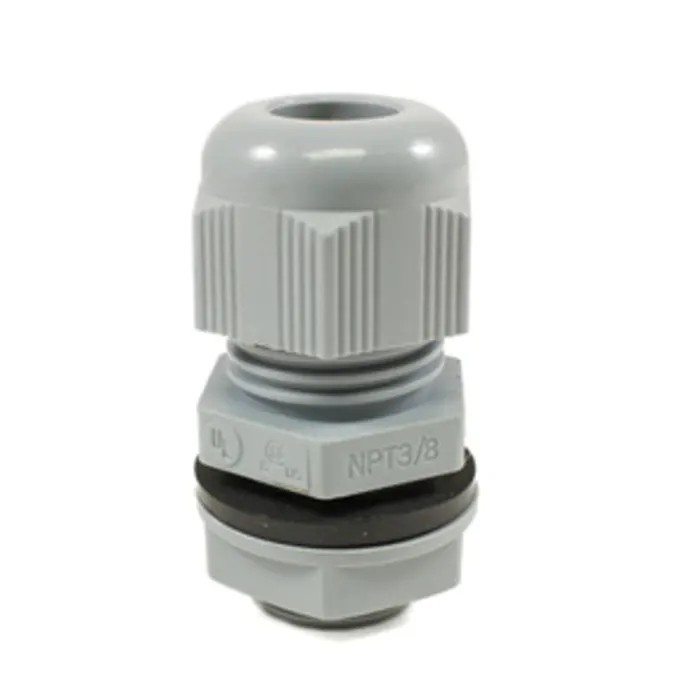

Alpha Wire FIT Wire Management Series Grey Chloroprene Rubber Polyamide Cable Gland M32 Thread Size 15 mm min. PMC32 SL080

Alpha Wire PMC32 SL080 cable gland is part of the FIT Wire Management Series featuring a robust design combining grey Chloroprene rubber and polyamide materials. This cable gland is engineered for industrial and commercial applications requiring reliable strain relief and environmental protection.

It features an M32 thread with a clamping range accommodating cables from 15 mm up to 21 mm in diameter. The polyamide 6 body provides excellent mechanical strength, while the Chloroprene rubber O-ring ensures a secure seal to prevent ingress of dust and water.

This cable gland meets high standards such as CSA, UL 514, and UL 94V-2 for durability and flame retardancy. With an IP68 and IP66 rating, it ensures resistance against dust and water immersion up to 5 bar pressure for 30 minutes, making it suitable for demanding environments. The temperature range supports permanent use between -20°C and +100°C and intermittent exposure up to +150°C.

The gland includes a locknut for secure mounting and has a thread size of M-32x1.5 with a 10 mm thread length and 32 mm thread diameter. Its flame rating is V2 according to UL94 standards, indicating a material flame retardancy where flame extinguishes within 30 seconds.

Alpha Wire cable glands are ideal for use in telecommunications, control and instrumentation, data cables, and electrical power systems, providing effective strain relief and environmental protection. They are designed to protect infrastructure from wear and tear, enhancing system durability in industrial, laboratory, and commercial settings.

Features M32 threaded size with a clamping range of 15 to 21 mm diameter cables. Constructed with polyamide 6 body and Chloroprene rubber O-ring for durability and effective sealing. Rated IP68 and IP66 for dust and water resistance up to 5 bar pressure for 30 minutes.

Operates in a temperature range from -20°C to 150°C intermittently, with permanent use up to 100°C. Includes a locknut for reliable installation and maintains flammability rating V2 according to UL94. Ideal for telecommunications, control, instrumentation, data cables, and electrical power applications.
