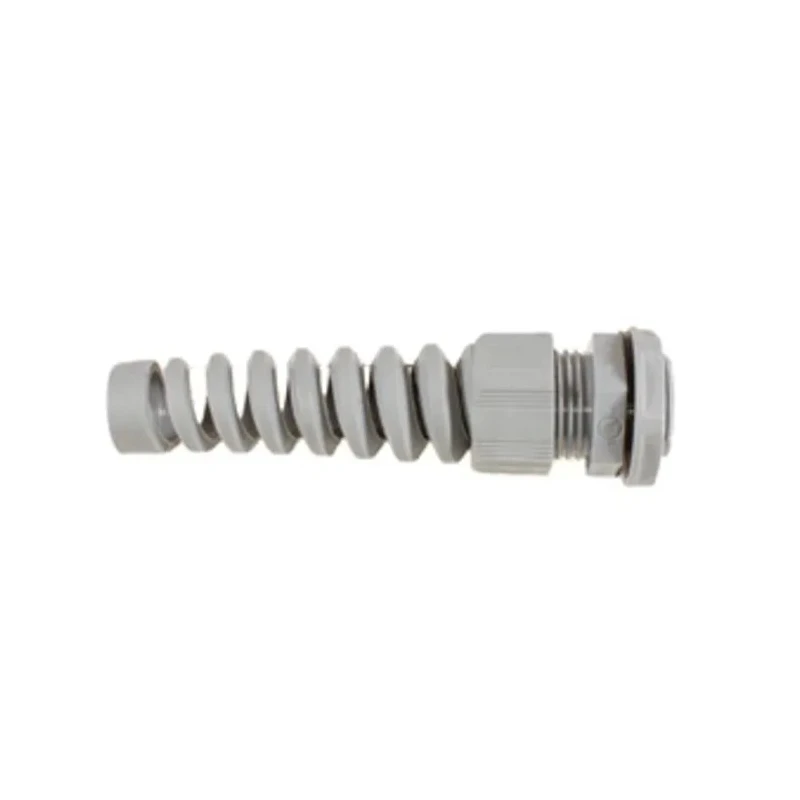

Alpha Wire FIT Wire Management Series Slate Chloroprene Rubber, Polyamide Cable Gland, M12 Thread, 3 mm Min. PMS12 SL080

Alpha Wire PMS12 SL080 cable gland from the FIT Wire Management Series is a high-quality component designed to protect and manage cables with diameters between 3 mm and 6.5 mm. The device features a polyamide 6 body paired with a chloroprene rubber O-ring seal in a slate color, providing not only mechanical protection but also excellent sealing capabilities.

The cable gland is engineered for versatile industrial use with an IP66 and IP68 rating, making it fully dust tight and allowing it to withstand water immersion beyond 1 meter for up to 30 minutes. Its robust construction is rated for a permanent operating temperature from -20°C to +100°C and can tolerate intermittent spikes up to +150°C.

Designed with an M12x1.5 thread size, this gland has a thread length of 8 mm and a 12 mm thread diameter, ensuring compatibility with standard metric threaded conduit systems. The gland includes a locknut for secure attachment and offers significant strain relief, enhancing cable longevity in installations subject to movement or vibration.

Conforming to CSA, UL 514, and UL 94V-2 flammability standards, it ensures safety and reliability in electrical and instrumentation applications. The flammability rating V2 means the material extinguishes burning within 30 seconds in vertical positioning, enhancing fire safety.

Its broad clamping range and rubber seals provide a tight grip, making it suitable for telecommunications, control, instrumentation, data cables, and electrical power wiring. This cable gland supports highly reliable connections and protects infrastructure from wear, dust, water, and sand ingress.

Constructed with durable polyamide 6 body and slate-colored chloroprene rubber seal. Provides IP66 and IP68 protection, resistant to dust and water immersion. Rated temperature range from -20°C to +100°C permanent, -30°C to +150°C intermittent.

Includes locknut for secure installation with strain relief. Complies with CSA, UL 514, and UL 94V-2 flame retardant standards. Thread length of 8 mm and diameter of 12 mm for secure fitting. Robust rubber seals ensure high reliability in harsh environments.

Suitable for telecommunications, control, instrumentation, data and power cables.
