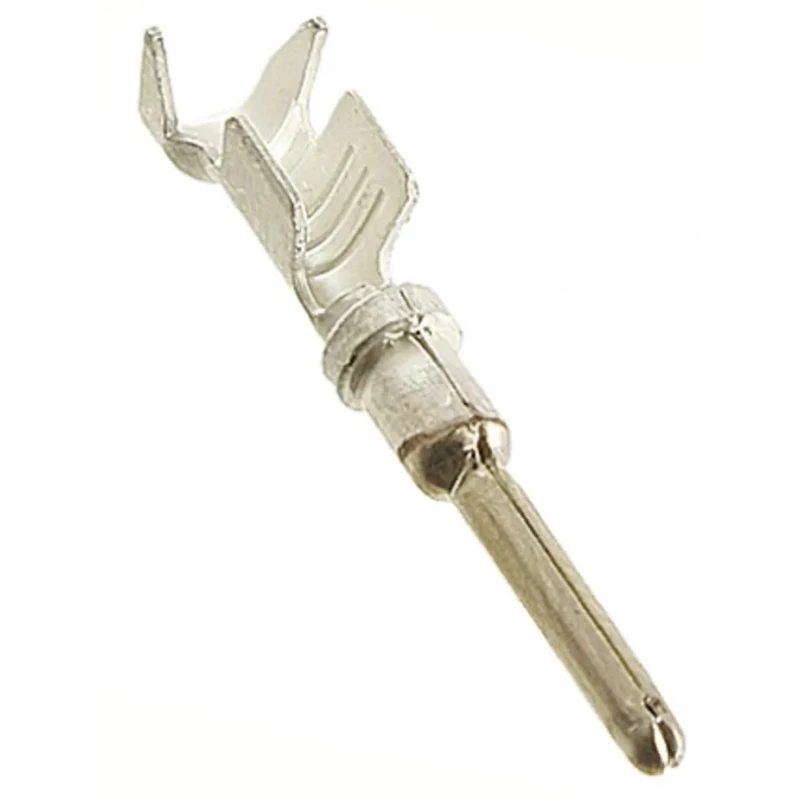

TE Connectivity AMPSEAL 16 Series Male Crimp Terminal, 18 AWG Min Socket, 14 AWG Max 776300-2
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Current | 24A |
| Length | 21.59mm |
| Model | 776300-2 |
| Gender | Male |
| Contact Material | Copper Alloy |
| Series | AMPSEAL 16 |
| Termination Type | Socket |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -40°C |
| For Use With | AMPSEAL 16 Connector Housing |
| Contact Plating | Nickel |
| Minimum Wire Size mm² | 0.75mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 18AWG |
| Maximum Wire Size AWG | 14AWG |
Key Features
- Compatible with AMPSEAL 16 connector housing.
- Constructed from copper alloy with nickel plating for durability.
- Rated for a current of 24 amperes.
- Operating temperature range from -40°C to 120°C.
- Socket termination type with a length of 21.59 mm.
- High performance alloy ensures increased terminal strength and vibration resistance up to 35 G’s.
- Designed for automotive and industrial connector systems.
- Manufactured in the United States ensuring quality standards.
Product Description
TE Connectivity 776300-2 AMPSEAL 16 Series male crimp terminal suitable for robust and reliable electrical connections in automotive, industrial, and electronic applications. This product supports a minimum wire size of 18 AWG and a maximum wire size of 14 AWG with a maximum current rating of 24 A.
Constructed with a copper alloy contact material and nickel plating, this crimp terminal offers enhanced durability and resistance to corrosion. The socket termination type and the precise length of 21.59 mm ensure compatibility with AMPSEAL 16 connector housing systems. It operates efficiently within a temperature range of -40°C to 120°C.
The terminal features a lanceless design with a high-performance alloy base metal providing increased terminal and beam strength, greater resistance to stress relaxation, and improved current carrying capacity due to lower temperature rise by approximately 20%. It also exhibits excellent vibration resistance up to 35 G’s, making it suitable for harsh operating conditions.
This crimp terminal is ideal for use in electronic components, power connectors, and automotive circuits requiring secure and long-lasting connections. Compatible with AMPSEAL 16 connector housing. Made of copper alloy with nickel plating for wear resistance.
Rated current of 24 amperes for reliable conductivity. Wide operating temperature from -40°C to 120°C for diverse environments. Socket-type termination with a 21.59 mm length for precise fit. High-performance alloy base metal ensures durability and strength.
Vibration resistant up to 35 G’s, suitable for automotive use. Manufactured in the United States ensuring quality manufacturing standards.
Explore EnvMart’s selection of high-quality Crimp Terminals and connectors for industrial, automotive, and electronic applications to ensure secure and reliable electrical connections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a maximum current of 24 amperes.
This model supports a minimum wire size of 18 AWG and a maximum wire size of 14 AWG.
The operating temperature range is from -40°C to 120°C.
It is constructed from copper alloy with nickel plating for enhanced durability and corrosion resistance.
The length of the socket termination type is 21.59 mm.
It features a socket-type termination.
It exhibits excellent vibration resistance up to 35 G's, making it suitable for harsh environments.
Yes, it is designed for compatibility with AMPSEAL 16 connector housing.
It is manufactured in the United States, ensuring adherence to quality standards.
This crimp terminal is ideal for use in automotive, industrial, and electronic applications requiring secure electrical connections.
The high-performance alloy base metal provides increased terminal strength and improved current carrying capacity due to lower temperature rise.
The model number is 776300-2.
