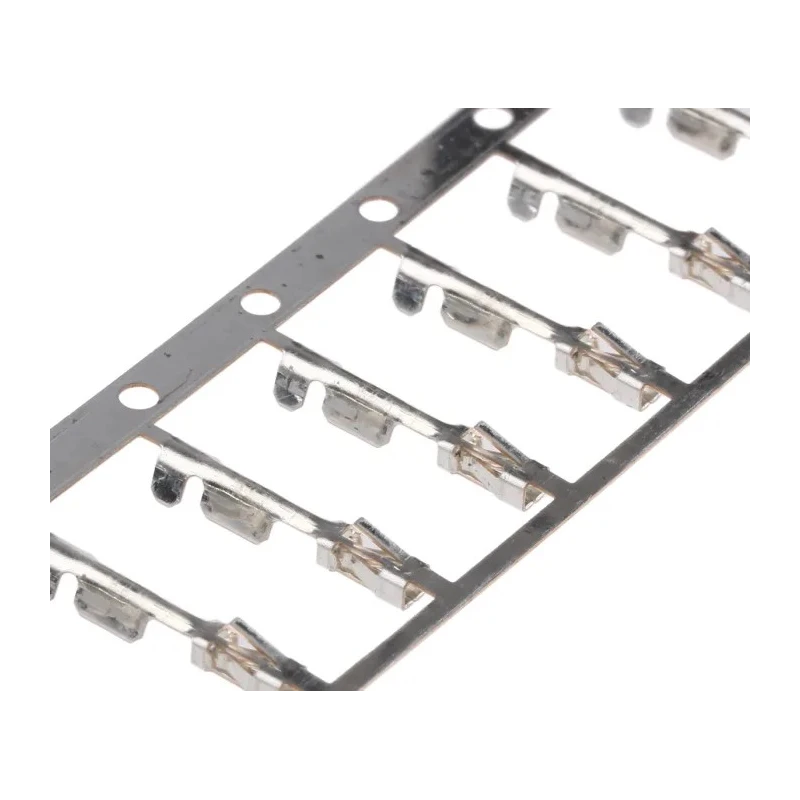

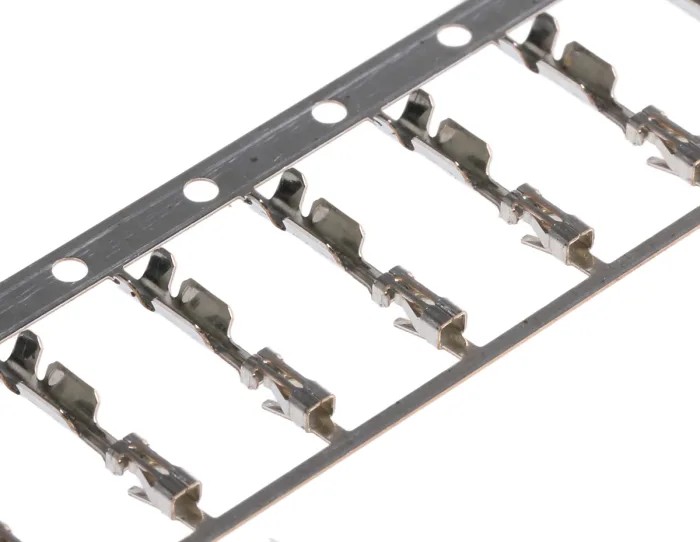

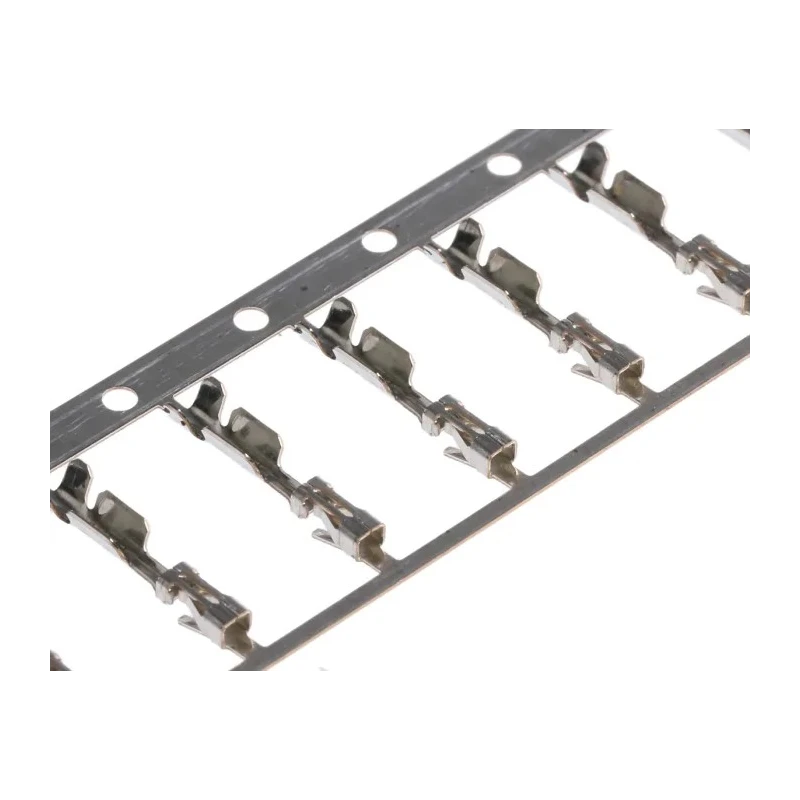

TE Connectivity AMPMODU MOD IV Series Female Crimp Terminal, 24 AWG Min Crimp, 20 AWG Max, Tin Plating, 3A Current 86492-9
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 11.94mm |
| Model | 86492-9 |
| Gender | Female |
| Contact Material | Beryllium Copper Alloy |
| Series | AMPMODU MOD IV |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| For Use With | AMPMODU MOD IV Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 12mΩ |
Key Features
- Constructed with beryllium copper alloy for durability.
- Contact surface plated with tin to ensure excellent conductivity.
- Suitable for use with AMPMODU MOD IV Connector Housing systems.
- Has a maximum contact resistance of 12 milliohms ensuring efficient signal transfer.
- Operates reliably in temperatures ranging from -65°C to 105°C.
- Compact length of 11.94 mm enables precise installation in PCB configurations.
- Termination type is crimp, ensuring secure wire connections.
- Manufactured in the United States adhering to high quality standards.
Product Description
TE Connectivity 86492-9 AMPMODU MOD IV Series Female Crimp Terminal is engineered for precise and dependable electrical connections in electronic equipment. It supports wire sizes ranging from 24 AWG minimum to 20 AWG maximum, suitable for currents up to 3 amperes. Constructed from high-quality beryllium copper alloy, this Crimp Terminal ensures excellent mechanical strength and electrical performance.
The tin plating on the contact surface enhances corrosion resistance and electrical conductivity while maintaining low contact resistance of 12 milliohms. This product features a compact length of 11.94 mm, facilitating its use in space-constrained PCB connector applications.
Operating temperature ranges from -65°C to 105°C make it suitable for various industrial and electronic environments. Designed for crimp termination, this terminal provides secure wire retention within AMPMODU MOD IV Connector Housings, widely used in industrial, electronic, and control equipment manufacturing.
Manufactured in the United States, it meets stringent quality criteria ensuring long-lasting and reliable electrical performance without additional certifications specified. Constructed with beryllium copper alloy for durability.
Contact surface plated with tin to ensure excellent conductivity. Supports wire sizes from 24 AWG to 20 AWG for versatile use. Crimp termination type for secure electrical connection. Operates reliably within temperature range of -65°C to 105°C.
Compact 11.94 mm length for precise PCB installations. Maximum contact resistance of 12 milliohms for efficient conductivity. Current rating of 3 amperes suitable for low power applications. Compatible with AMPMODU MOD IV Connector Housing systems.
Manufactured in the United States ensuring strict quality standards.
This product is ideal for use in industrial, electronic components, PCB assembly, telecommunications, and control systems where reliable and efficient crimp contacts are essential. Browse EnvMart for a wide selection of TE Connectivity connectors and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The crimp terminal has a current rating of 3 amperes, making it suitable for low power applications.
It operates reliably within a temperature range of -65°C to 105°C, accommodating various industrial and electronic environments.
This terminal supports wire sizes ranging from 24 AWG minimum to 20 AWG maximum, which is equivalent to 0.2 mm² to 0.6 mm².
The maximum contact resistance is 12 milliohms, ensuring efficient signal transfer and conductivity.
It is constructed from beryllium copper alloy, which provides mechanical strength and electrical performance, and features tin plating on the contact surface for enhanced conductivity.
The length of this crimp terminal is 11.94 mm, making it compact for precise installation in PCB configurations.
This model uses crimp termination, which ensures secure wire connections within the AMPMODU MOD IV Connector Housing systems.
It is designed for use with AMPMODU MOD IV Connector Housing systems, widely utilized in various applications.
This terminal is manufactured in the United States, adhering to high quality standards.
It is ideal for use in industrial, electronic components, PCB assembly, telecommunications, and control systems where reliable crimp contacts are essential.
This crimp terminal is female, designed for compatibility with male connectors in the AMPMODU MOD IV series.
The tin plating on the contact surface enhances corrosion resistance and electrical conductivity, contributing to efficient performance.
