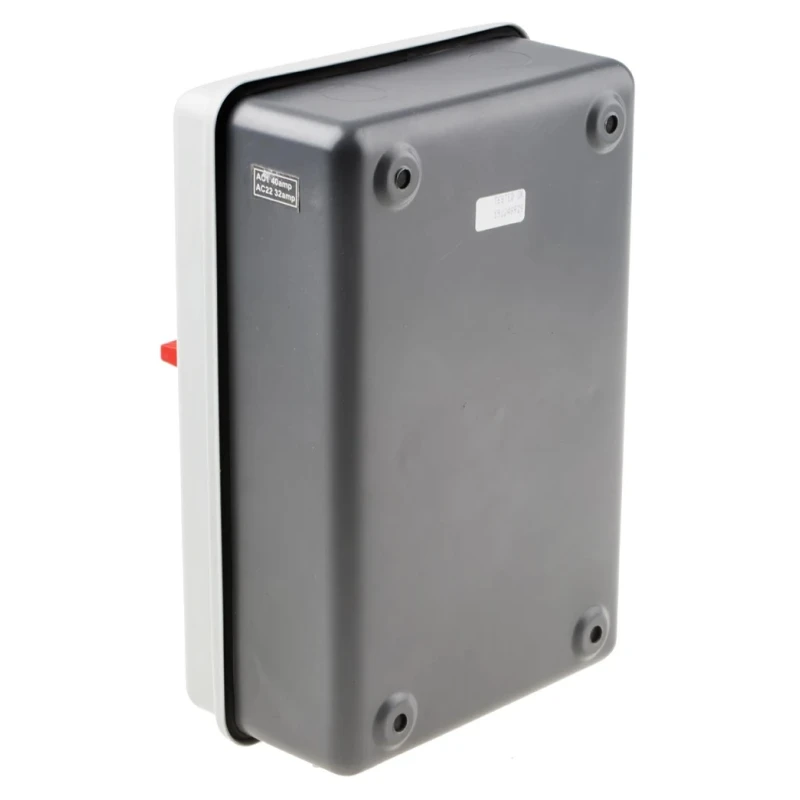

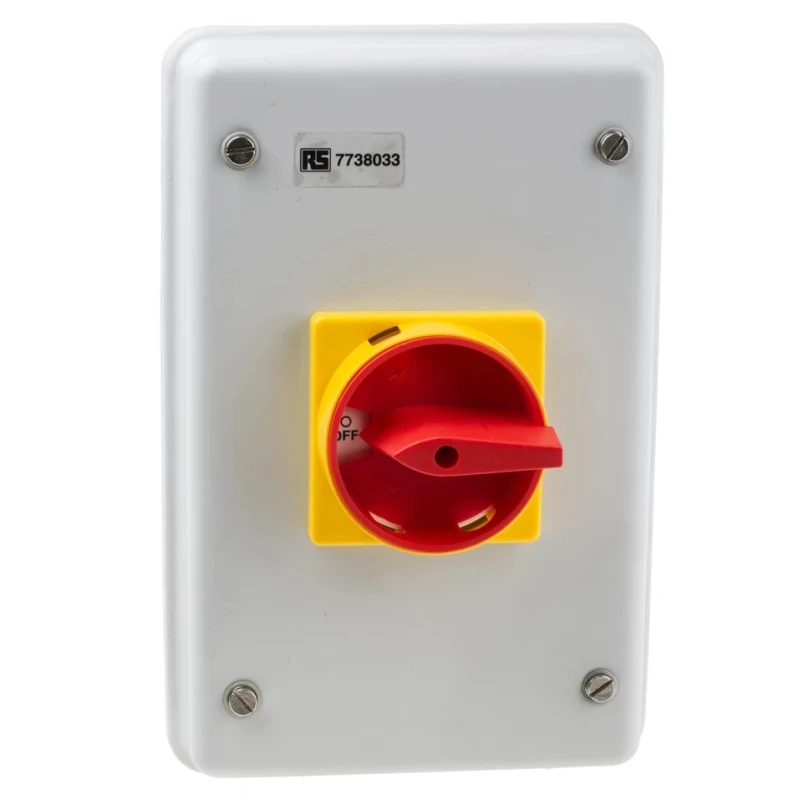

RS PRO 4-Pole Panel Mount Isolator Switch, IP54, Red Handle, 40A, 37 kW, 690V AC, Series RS PRO IP54
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Length | 220mm |
| Model | IP54 |
| Depth | 90mm |
| IP Rating | IP54 |
| Width | 145mm |
| Mount Type | Panel Mount |
| Series | RS PRO |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -25°C |
| Switching Current | 40A |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Handle Colour | Red |
| Number of Poles | 4 |
| Standards/Approvals | EN, RoHS |
| Switching AC Voltage | 690V ac |
| Switching Power | 37kW |
| Squirrel - cage motors | starting, switching off motors during running |
Key Features
- The isolator switch features a robust red handle for clear operation indication.
- IP54 rated for protection against dust ingress and water splashes.
- Rated switching current of 40 amps with switching power of 37 kW at 690V AC.
- Constructed for 3-phase electrical systems with panel mount installation type.
- Includes auxiliary contacts and padlock compatibility for enhanced safety.
- Operates reliably within -25°C to 80°C temperature range.
- Complies with EN and RoHS standards ensuring quality and safety.
- Compact size with dimensions of 220mm length, 145mm width, and 90mm depth.
Product Description
RS PRO IP54 4-Pole Panel Mount Isolator Switch is a high-quality electrical isolator designed for panel mounting in low voltage switchgear applications. It is engineered to provide reliable power distribution, load isolation, and motor control capability. This isolator carries a switching current rating of 40A and switching power capacity of 37 kW at an AC voltage of 690 volts, making it suitable for demanding industrial and commercial electrical systems.
The device features a red handle that offers clear visual identification and ergonomic operation. The isolator is rated IP54, providing protection against dust ingress and water splashes, ensuring durability and safety in harsh environments. Auxiliary contacts enable monitoring and control applications, while the padlock compatibility enhances operational safety by preventing unauthorized switch operation.
Designed for three-phase electrical systems, this 4-pole isolator mount securely on panels with screw terminals providing robust electrical connections. It functions reliably in ambient temperatures from -25°C to a maximum of 80°C, suitable for various climates and conditions.
Compliant with EN and RoHS standards, the RS PRO isolator guarantees performance and safety aligned with international requirements. Its compact dimensions - 220mm length, 145mm width, and 90mm depth - permit easy installation in panel boards with limited space.
The isolator features a red handle for clear operation identification. Rated IP54 for effective dust and water resistance in industrial settings. Designed to handle up to 40A switching current and 37 kW switching power. Suitable for 3-phase electrical installations with panel mount configuration.
Includes auxiliary contacts for integration with control systems. Padlock compatible to ensure safe operation and maintenance. Operates effectively in temperature ranges between -25°C and 80°C. Certified compliant with EN and RoHS standards for safety and environmental compliance.
Compact size allows flexible installation in electrical switchboards. Manufactured in India under the trusted RS PRO brand known for quality and reliability.
This Isolator Switch is ideal for industrial, commercial, and manufacturing settings where safe and efficient motor control, power distribution, and load isolation are essential. Its robust design and safety features make it suitable for non-inductive or slightly inductive loads, switching resistive or motor loads, and electromagnetic load control.
Explore our extensive RS PRO category in EnvMart for more high-quality electrical switchgear and components tailored to meet your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 40A.
It has a switching power capacity of 37 kW at 690V AC.
This isolator switch is rated IP54, providing protection against dust ingress and water splashes.
It operates effectively within a temperature range of -25°C to 80°C.
This model is designed for 3-phase electrical systems.
The dimensions are 220mm in length, 145mm in width, and 90mm in depth.
It uses a panel mount installation type.
Yes, it includes auxiliary contacts and is padlock compatible for enhanced safety.
It complies with EN and RoHS standards, ensuring quality and safety.
It features screw terminals for robust electrical connections.
It is suitable for non-inductive or slightly inductive loads, including motor control and power distribution.
This model is manufactured in India.
