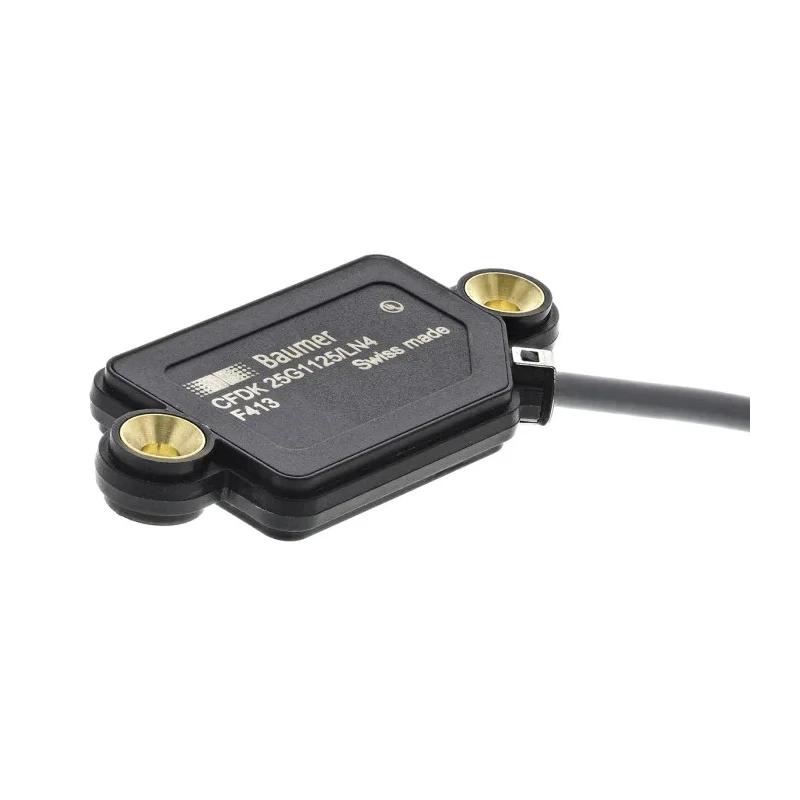

Baumer Block Capacitive Proximity Sensor 8 mm Detection Shielded Mount 30 V dc PNP Output 100mA CFDK 25G1125/LN4
Specifications
| Country of Origin | India |
|---|---|
| Brand | Baumer |
| Length | 52.4mm |
| Model | CFDK 25G1125/LN4 |
| Depth | 6mm |
| IP Rating | IP65 |
| Width | 25mm |
| Mount Type | Shielded |
| Housing Material | Polyamide |
| Output type | PNP |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -25°C |
| Switching Current | 100mA |
| Terminal type | Pre-Cabled |
| Body Style | Block |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 35Hz |
| Standards/Approvals | CE, cULus |
| Maximum Supply Voltage | 30V |
| Maximum Detection | 8mm |
Key Features
- This sensor uses polyamide housing offering IP65 rated protection.
- It operates within temperature range from -25°C to 75°C.
- The compact block style body measures 52.4 mm length, 25 mm width, and 6 mm depth.
- Supplied voltage is 30 V dc with maximum switching frequency of 35 Hz.
- Output current rating is 100 mA with built-in short circuit and reverse polarity protection.
- CE and cULus standards approvals ensure compliance and safety.
- Pre-cabled terminal type allows quick and secure electrical connections.
- The sensor is designed for industrial automation detection of liquids and object presence.
Product Description
Baumer CFDK 25G1125/LN4 is a block capacitive proximity sensor engineered for industrial automation applications requiring precise detection of non-metallic objects and liquid levels. Featuring a compact design with a 6 mm installation height, it fits into space-constrained environments.
The device has a maximum detection range of 8 mm and is shielded in construction with polyamide housing rated at IP65 for protection against dust and water ingress. It operates reliably in ambient temperatures from -25°C up to 75°C.
This sensor operates on a DC power supply of 30 V with a switching frequency of 35 Hz and supports a maximum output current of 100 mA through its PNP output configuration. It includes built-in protections such as short circuit and reverse polarity protection ensuring durability and safety in harsh industrial settings.
Dimensions of the sensor body are 52.4 mm in length, 25 mm in width, and 6 mm in depth, with a pre-cabled terminal for ease of installation. This sensor complies with CE and cULus standards, providing assurance for industrial and commercial deployment.
Applications include fill level detection in tanks, object presence detection under conveyors, and other precise proximity sensing tasks. The LED indicator enables clear status monitoring during operations. Explore more Capacitive Proximity Sensors in the Baumer range at EnvMart for diverse industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 8 mm.
It operates reliably within a temperature range of -25°C to 75°C.
The output current rating is 100 mA.
It provides a PNP output configuration.
The maximum switching frequency is 35 Hz.
The housing is made of polyamide, which offers durability and protection.
The sensor body measures 52.4 mm in length, 25 mm in width, and 6 mm in depth.
Yes, it includes built-in short circuit and reverse polarity protection.
It has an IP65 rating, ensuring protection against dust and water ingress.
It features a pre-cabled terminal type for quick and secure electrical connections.
It complies with CE and cULus standards, ensuring safety and compliance for industrial use.
It is designed for applications such as fill level detection in tanks and object presence detection under conveyors.
