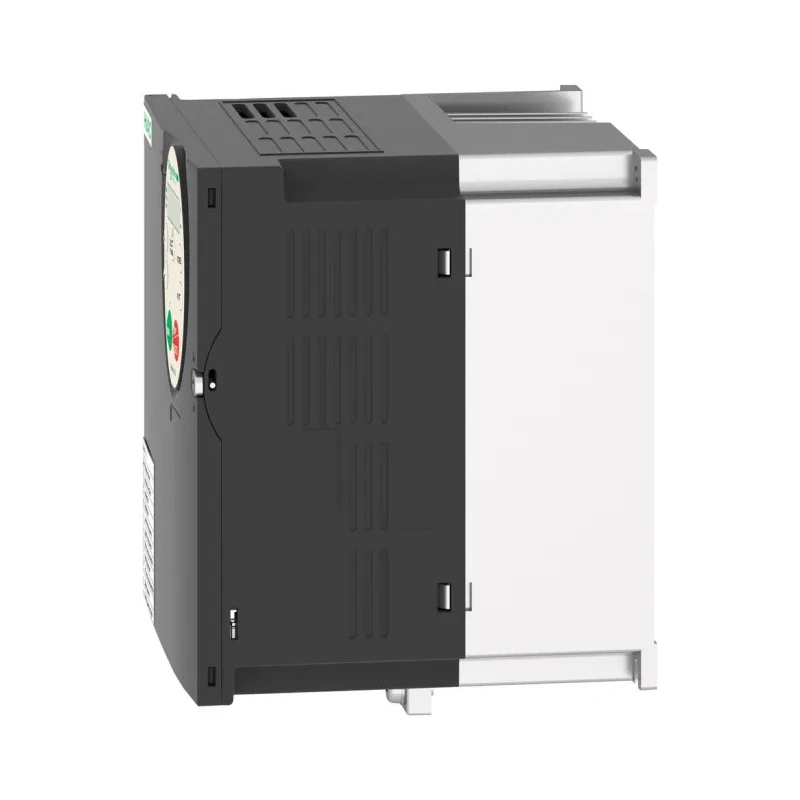

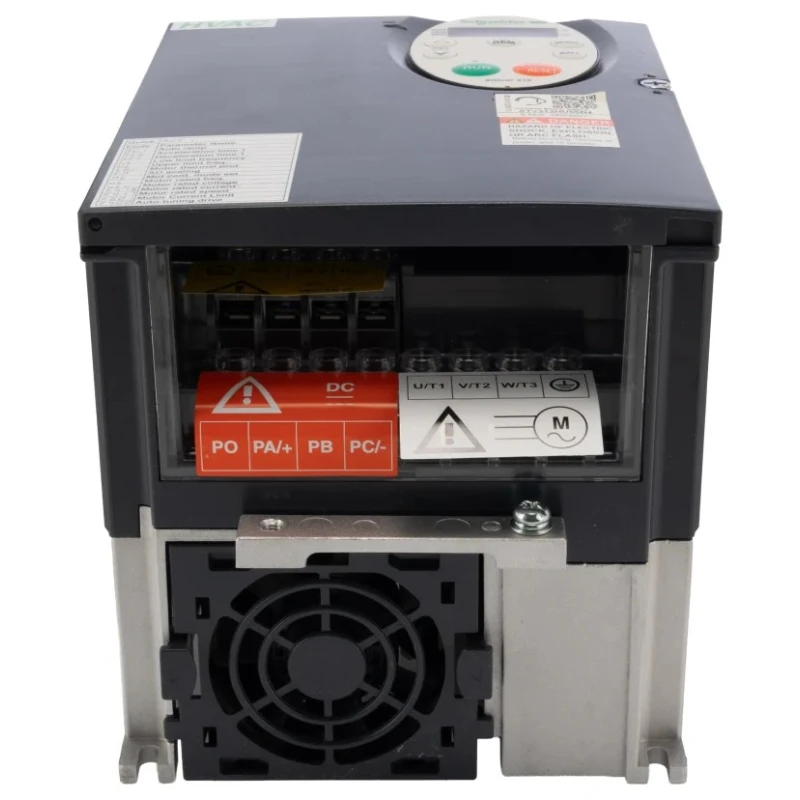

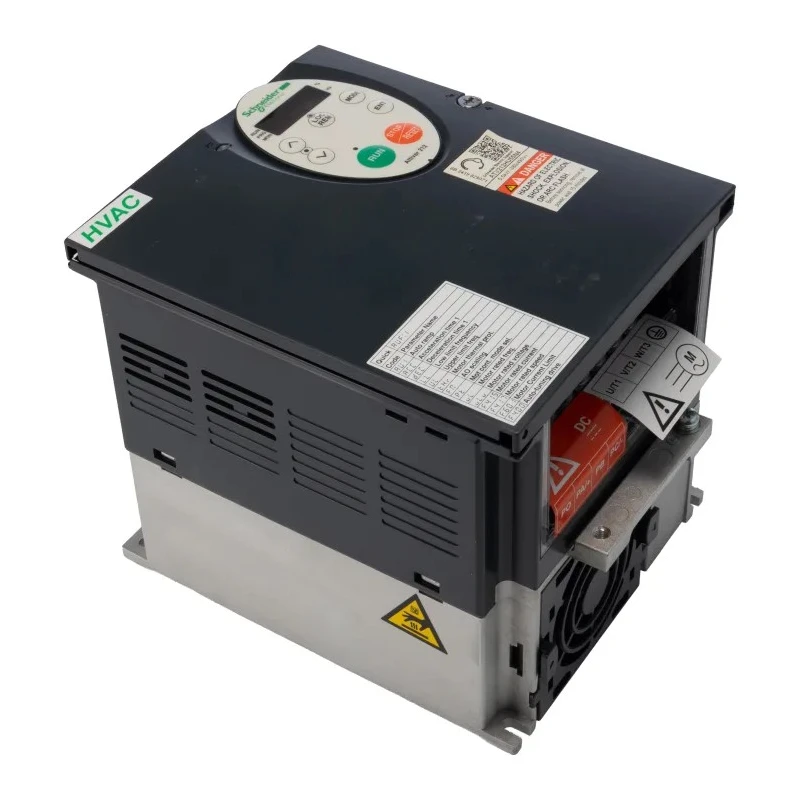

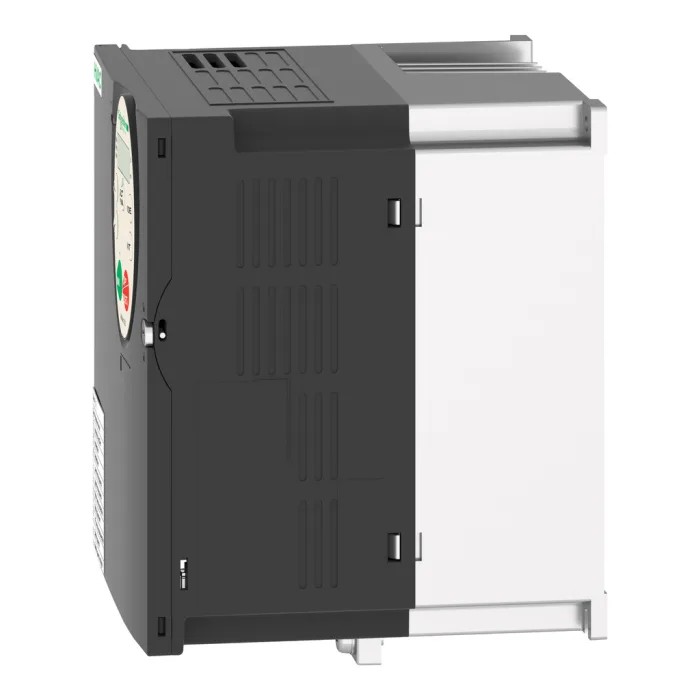

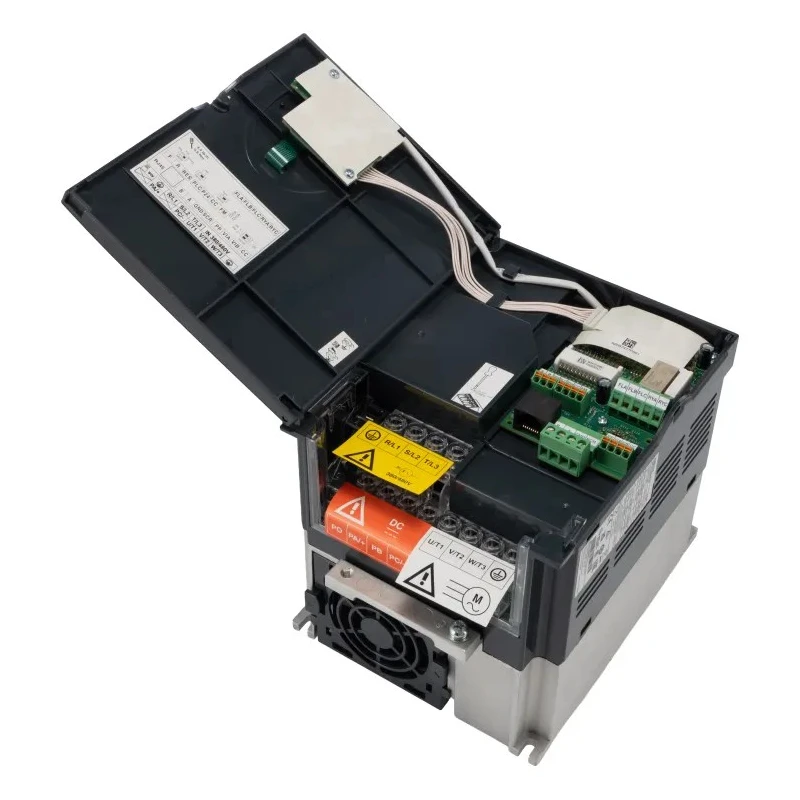

Eaton Inverter Drive 5.5 kW 3 Phase Variable Speed 400V AC 10.9 A ATV212HU55N4
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Eaton |
| Model | ATV212HU55N4 |
| IP Rating | IP20, IP21, IP41 |
| Drive Type | Variable Speed |
| Mount Type | Panel |
| Overall Length | 184mm |
| Series | ATV 212 |
| Overall Width | 142mm |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 50°C |
| Output Frequency | 0.5, 200Hz |
| Minimum Operating Temperature | -10°C |
| Number of Phases | 3 |
| Maximum Output Current | 10.9A |
| Standards/Approvals | CSA certified, UL Listed |
| Overall Depth | 150mm |
| Minimum Supply Voltage | 400V ac |
| Better World Claim | Saves Energy |
| Compatible Motor Type | Asynchronous Motor, AC Motor |
Key Features
- Operates at 400V AC supply voltage with a maximum output current of 10.9 A.
- Compact panel mount with IP21 touch-proof protection rating.
- Wide output frequency range from 0.5 to 200 Hz enhances motor control performance.

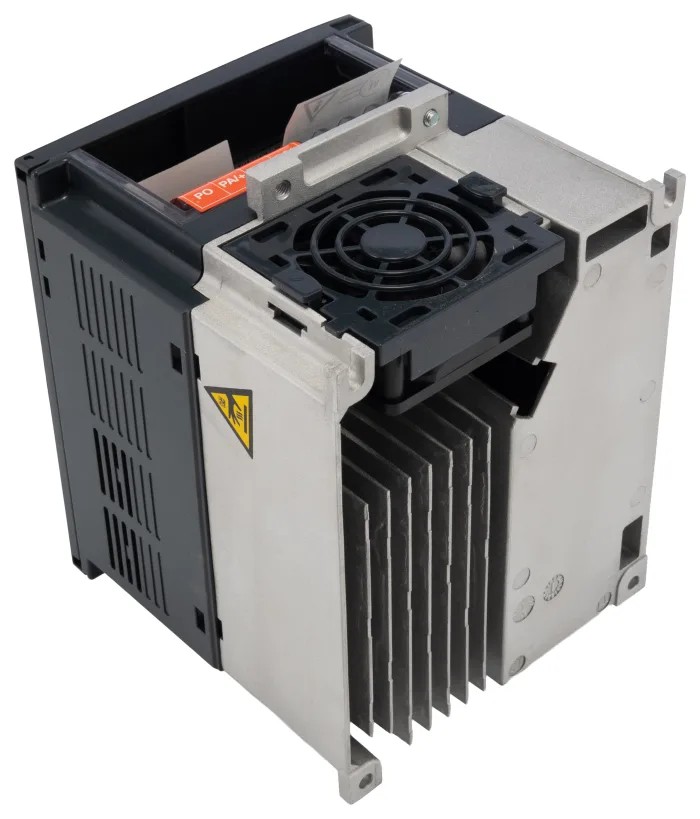

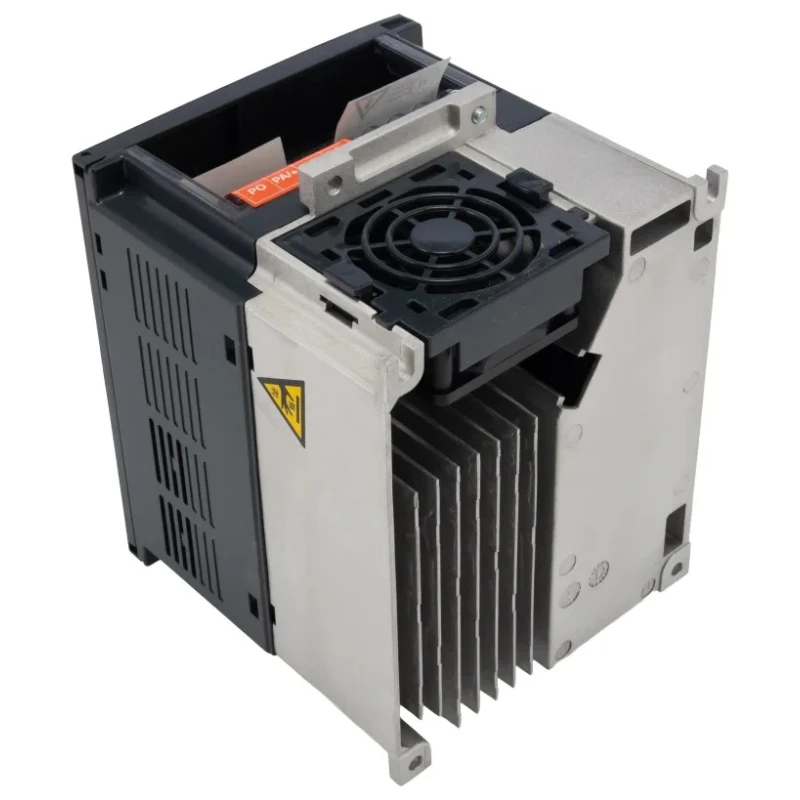

- Equipped with integral heatsink to maintain optimal temperature under heavy-duty use.
- Suitable for HVAC, fluid management, and industrial variable speed applications.
- Supports communication protocols including Modbus, METASYS N2, APOGEE FLN P1, and BACnet.
- Complies with IEC/EN 61800-5-1 and IEC/EN 61800-3 EMC standards.
- Designed for vertical panel mounting with four fixing holes.
Product Description
Schneider Electric ATV212HU55N4 inverter drive is a high-performance 5.5 kW variable speed drive designed for 3-phase asynchronous and AC motors. This drive operates on 400V AC with a maximum output current of 10.9 A and supports output frequencies ranging from 0.5 to 200 Hz, providing precise motor speed control.
Its panel mount design with overall dimensions of 142 mm width, 184 mm height, and 150 mm depth, combined with an IP21 rating, ensures touch-proof protection and shielding from objects larger than 12 mm, ensuring safe maintenance and operation.
The built-in integral heatsink keeps the drive cool even under heavy-duty applications, making it suitable for demanding industrial uses such as HVAC systems, fluid management, pumping, chemical processing plants, lifts, and escalators in the tertiary sector.
This inverter drive features a built-in EMC filter and complies with international EMC standards IEC/EN 61800-5-1 and IEC/EN 61800-3, and is CSA certified and UL listed. Communication protocols include Modbus, METASYS N2, APOGEE FLN P1, and BACnet, enabling seamless integration with building management systems.
The eco-energy design reduces energy consumption by up to 70% compared to conventional control systems, supporting sustainability goals. Additionally, cable temperature rise reduction technology avoids the need for external line or DC chokes.
The Altivar 212 drive is mounted vertically with four fixing holes and includes optional motor chokes to extend cable lengths and reduce disturbances at motor terminals. Operates over a wide temperature range from -10°C to +50°C for versatile industrial environments.
Designed especially for fluid management applications like heating, ventilation, air conditioning, and pumping. Set includes Schneider Electric ATV212HU55N4 Inverter Drive unit. Explore comprehensive automation and control gear solutions in the Electronics & Electricals category at EnvMart for unmatched quality and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton inverter drive has a power rating of 5.5 kW.
This model has a maximum output current of 10.9 A.
The inverter drive supports an output frequency range from 0.5 to 200 Hz.
It is compatible with asynchronous motors and AC motors.
The inverter drive has an IP21 rating, providing touch-proof protection.
The overall dimensions are 142 mm in width, 184 mm in height, and 150 mm in depth.
The operating temperature range is from -10°C to +50°C.
This inverter drive is designed for panel mounting.
It supports communication protocols including Modbus, METASYS N2, APOGEE FLN P1, and BACnet.
The inverter drive is CSA certified and UL listed.
It is suitable for HVAC, fluid management, and various industrial variable speed applications.
The country of origin for this product is Indonesia.
