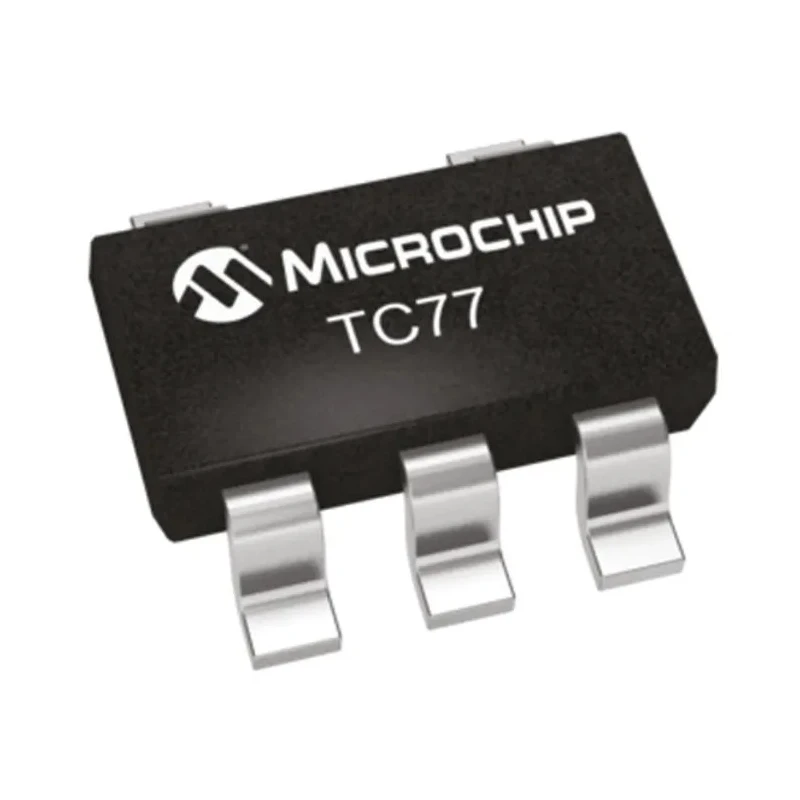

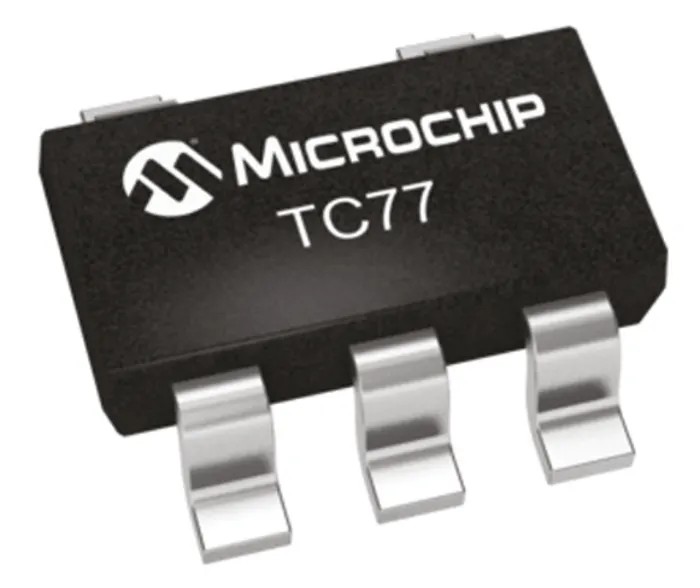

Microchip Digital Output Temperature Sensor, Surface Mount, Serial-Microwire, Serial-SPI, ±3°C Accuracy, 5-Pin SOT-23 TC77
Specifications
| Country of Origin | Thailand |
|---|---|
| Accuracy | ±3°C |
| Brand | Microchip |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | TC77 |
| Width | 1.75mm |
| Mount Type | Surface |
| Output type | Digital |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -55°C |
| Interface Type | Serial-Microwire, Serial-SPI |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
Key Features
- Offers ±3°C accuracy suitable for precise temperature measurement.
- Operates reliably over a wide temperature range from -55°C to 125°C.
- Supports supply voltage between 2.7 V and 5.5 V for flexible integration.
- Compact 5-pin SOT-23 package for space-saving surface mount applications.
- Ideal for thermistor replacement, PC thermal monitoring, thermostat controls, industrial and office equipment.
- 13-bit digital word output enables accurate temperature data communication.
- Solid state thermal sensing element ensures durability and stable readings.
- Surface mount design fits small form factor devices and mobile phones.
Product Description
Microchip TC77 digital output temperature sensor is designed to convert temperature data accurately using its internal thermal sensing element. Featuring a compact 5-pin SOT-23 surface mount package, this sensor supports serial-microwire and serial-SPI interface communication protocols, facilitating integration into electronic systems.
This sensor operates over an extensive temperature range of -55°C to 125°C with an accuracy of ±3°C, making it suitable for critical thermal monitoring and control applications. Its operating voltage range of 2.7 V to 5.5 V provides flexible power supply options for various circuit designs.
TC77 is an excellent choice for replacing thermistors and ensuring thermal protection in personal computers, industrial controllers, thermostat systems, office equipment, and mobile devices. The sensor outputs data as a 13-bit digital word, allowing precise and efficient temperature communication to microcontrollers and processors.
Its solid state construction guarantees durability and stable performance over time. The small footprint of the SOT-23 package aligns with modern industrial and commercial applications where space-saving solutions are critical.
Offers ±3°C accuracy suitable for precise temperature measurement. Operates reliably over a wide temperature range from -55°C to 125°C. Supports supply voltage between 2.7 V and 5.5 V for flexible integration. Compact 5-pin SOT-23 package for space-saving surface mount applications.
Ideal for thermistor replacement, PC thermal monitoring, thermostat controls, industrial and office equipment. 13-bit digital word output enables accurate temperature data communication. Solid state thermal sensing element ensures durability and stable readings.
Surface mount design fits small form factor devices and mobile phones. Manufactured in Thailand ensuring quality and reliability.
The product is supplied on a reel, ready for insertion into manufacturing machinery to enhance production efficiency. This sensor is suitable for use in electronics manufacturing, HVAC systems, industrial instrumentation, and laboratory equipment.
Explore our categories for related Temperature Sensors and compatible components to complete your thermal management solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor operates reliably over a wide temperature range from -55°C to 125°C.
It offers an accuracy of ±3°C, making it suitable for precise temperature measurement.
The TC77 outputs data as a 13-bit digital word, enabling accurate temperature data communication.
The sensor has a height of 1.3mm, a length of 3.1mm, and a width of 1.75mm, making it compact for surface mount applications.
It supports a supply voltage between 2.7 V and 5.5 V for flexible integration into various circuit designs.
The TC77 supports Serial-Microwire and Serial-SPI communication protocols for integration into electronic systems.
This model features a surface mount design, suitable for space-saving applications in electronics.
The product is manufactured in Thailand, ensuring quality and reliability.
It is ideal for thermistor replacement, PC thermal monitoring, thermostat controls, and industrial and office equipment.
The TC77 has a pin count of 5, fitting into compact designs.
The sensor comes in a compact SOT-23 package, designed for surface mount applications.
It utilizes a solid state thermal sensing element, ensuring stable readings and durability over time.
