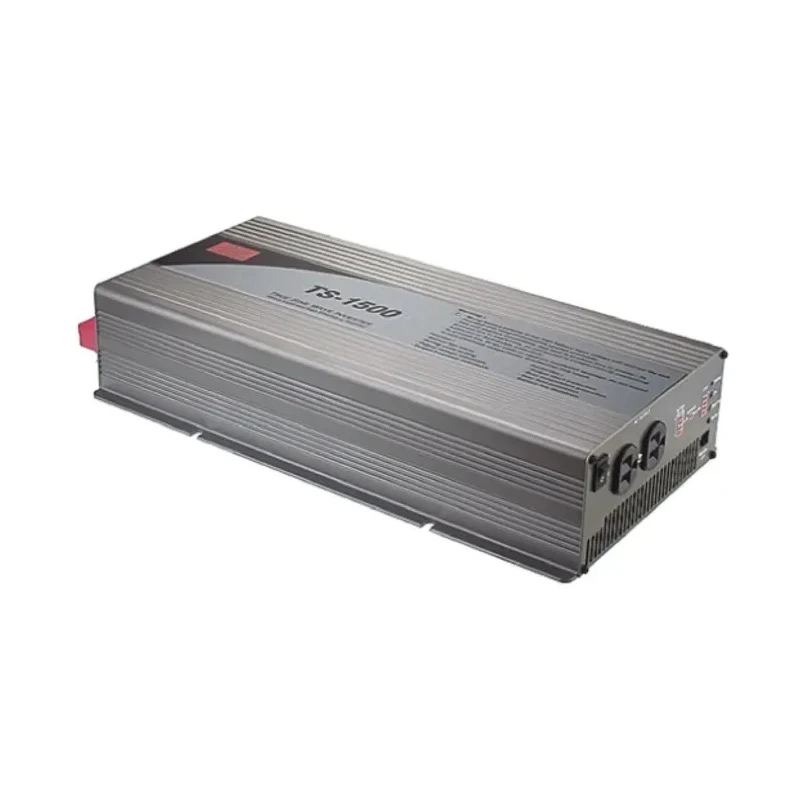

MEAN WELL TS-1500-224B Panel Power Inverter 1.5kW, 21V-30V DC Input, 230V AC Output
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MEAN WELL |
| Efficiency | 90% |
| Length | 420mm |
| Model | TS-1500-224B |
| Depth | 420mm |
| Gross Weight | 6.8kg |
| Width | 220mm |
| Output Power | 1.5kW |
| Mount Type | Panel |
| Series | TS-1500 |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 0°C |
| Protection features | Reverse Polarity Protection |
| Input Voltage | 21, 30V dc |
| Output Voltage | 230V ac |
| Standards/Approvals | FC, CE, cULus |
| Output Connector Type | Euro 2-Pin |
Key Features
- True sine wave output ensures clean power suitable for sensitive equipment.
- High efficiency of up to 90% reduces energy loss during conversion.
- Wide input voltage range from 21V to 30V DC supports variable power sources.
- Panel mount design allows easy integration in control or power distribution panels.
- Equipped with reverse polarity protection for enhanced safety.
- Operating temperature range from 0°C to 40°C accommodates standard industrial environments.
- Low total harmonic distortion (THD) enables stable operation of harsh and inductive loads.
- Compact dimensions 420mm (L) x 220mm (W) x 420mm (D) for space-efficient installation.
Product Description
MEAN WELL TS-1500-224B panel power inverter is a reliable 1.5kW true sine wave DC-AC inverter designed for industrial, automotive, marine, and residential use where clean and stable AC power is required. It accepts a broad DC input voltage range of 21V to 30V and delivers a steady 230V AC output suitable for various electrical equipment.
The inverter employs digital microprocessor control and high frequency circuit topology to achieve a high efficiency of 90%, minimizing energy losses. It supports continuous output power of 1500W with peak surge capabilities of up to 3000W for short durations, making it ideal for powering harsh or inductive loads such as power tools, office devices, and portable equipment in vehicles and mobile homes.
With reverse polarity protection, this inverter ensures safety against incorrect battery connections. It is designed for panel mounting, offering flexibility and ease of installation within existing electrical panels. The operating temperature range of 0°C to 40°C allows operation in typical industrial and outdoor environments.
Low total harmonic distortion (less than 3%) guarantees clean power output, important for sensitive electronics. Compact form factor with 420mm length and depth and 220mm width, weighing 6.8kg, allows installation in confined spaces without compromising performance.
True sine wave output enables compatibility with sensitive and critical electrical loads. High conversion efficiency up to 90% reduces operational costs and heat generation. Reverse polarity protection prevents damage from wiring errors.
Peak surge power of 3000W supports demanding transient loads. Front panel controls allow easy adjustment of output voltage and frequency. Suitable for industrial, automotive, marine, and residential power solutions. CE, FC, and cULus certifications ensure safety and regulatory compliance.
This MEAN WELL TS-1500-224B inverter is an advanced and dependable solution for converting DC battery power into AC electricity. EnvMart offers a wide range of Power Inverters and electrical components ideal for industrial and commercial applications. Explore our MEAN WELL catalog for more power supply solutions designed for durability and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 21V to 30V DC.
It provides a continuous output power of 1.5kW.
The inverter has dimensions of 420mm (L) x 220mm (W) x 420mm (D) and weighs 6.8kg.
The operating temperature range is from 0°C to 40°C, accommodating standard industrial environments.
Yes, it provides true sine wave output, ensuring clean power suitable for sensitive equipment.
It complies with CE, FC, and cULus standards, ensuring safety and regulatory compliance.
This inverter has a peak surge capability of up to 3000W for short durations.
It features a panel mount design, allowing for easy integration into control or power distribution panels.
It is suitable for industrial, automotive, marine, and residential applications where clean and stable AC power is required.
