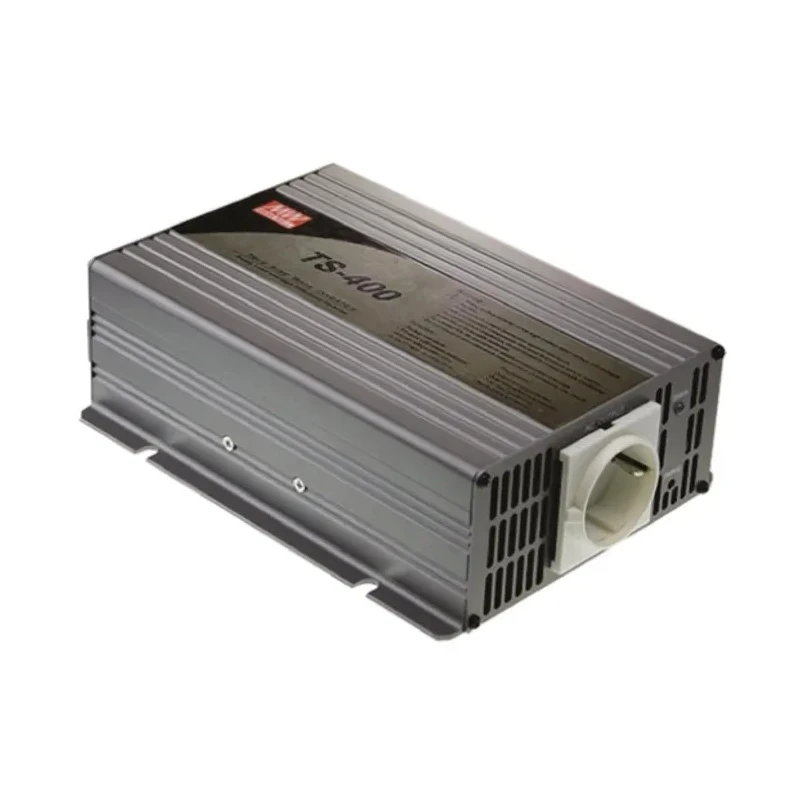

MEAN WELL 400W True Sine Wave DC-AC Power Inverter 21V dc / 30V dc Input 230V ac Output TS-400-224D

MEAN WELL TS-400-224D is a 400W true sine wave DC-AC power inverter designed for industrial, commercial, and mobile power applications. It accepts 21V to 30V DC input and produces a clean 230V AC output, ideal for powering sensitive electronics and power tools in vehicles, yachts, and mobile homes.

This inverter uses advanced digital microprocessor control alongside high frequency circuit topology, improving efficiency to approximately 87.5% and ensuring reliable performance with low total harmonic distortion of less than 3% at peak load. The inverter can continuously provide 400W output, supports 460W for 180 seconds, 600W for 10 seconds, and surge power up to 800W for 30 utility cycles, making it capable of handling harsh and variable electrical loads.

Protection features built into the TS-400-224D include overload protection, over voltage protection, and over temperature protection, safeguarding the device and connected equipment. The inverter supports easy output voltage and frequency adjustments through the front control panel to accommodate different applications.

With compact dimensions measuring 205 mm in length, 158 mm in width, and 67 mm in depth, along with a weight of 1.7 kg, this inverter offers easy portability and installation flexibility. Typical applications include power tools, office and portable equipment in vehicles, yachts, mobile homes, and other environments with inconsistent or poor mains voltage.

True sine wave output with THD less than 3% for clean power supply. High efficiency up to 87.5% minimizes energy loss and heat generation. Digital microprocessor and high frequency circuit technology for stable operation.

Overload, over voltage, and over temperature protection mechanisms. Capable of 800W surge power for short durations supporting heavy loads. Compact and lightweight design simplifies installation and mobility. Adjustable output voltage and frequency via front panel controls.

Ideal for industrial, laboratory, HVAC, and mobile power applications.

MEAN WELL TS-400 series power inverters are trusted solutions for power supply in harsh and fluctuating electrical environments, ensuring continuous and efficient power delivery. Explore more Power Inverters and accessories in the Electronics & Electricals category at EnvMart for your application needs.
