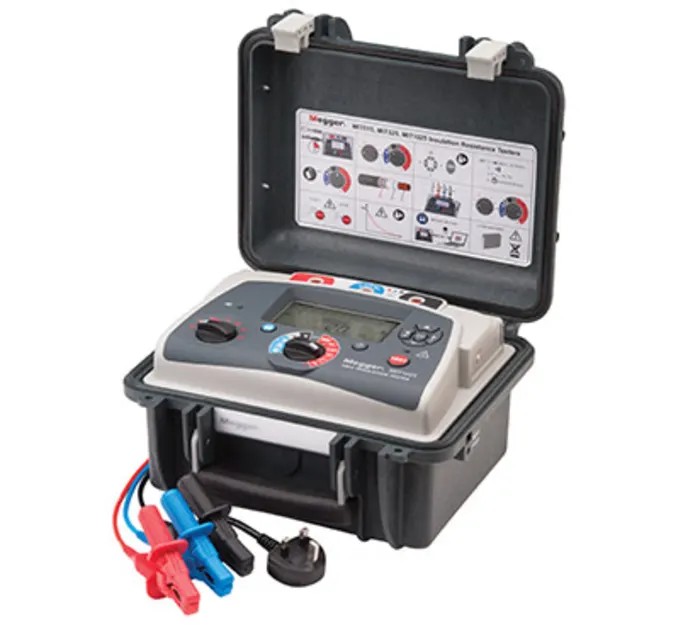

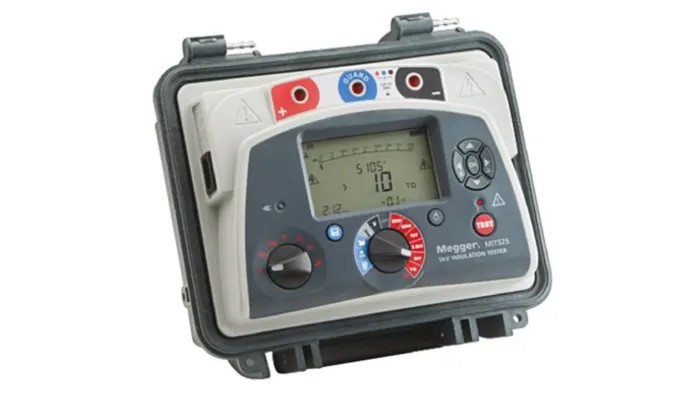

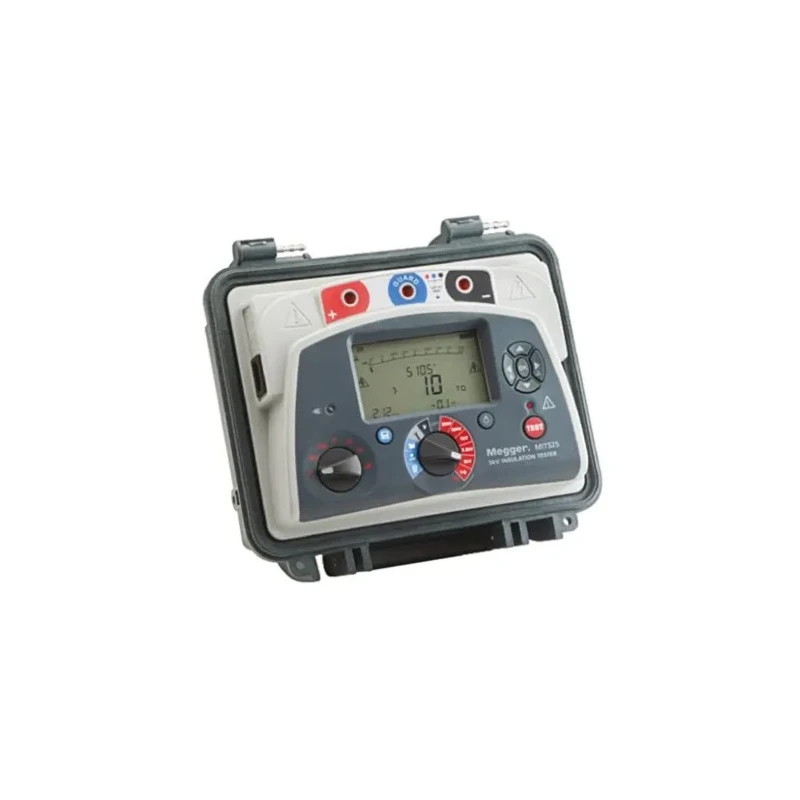

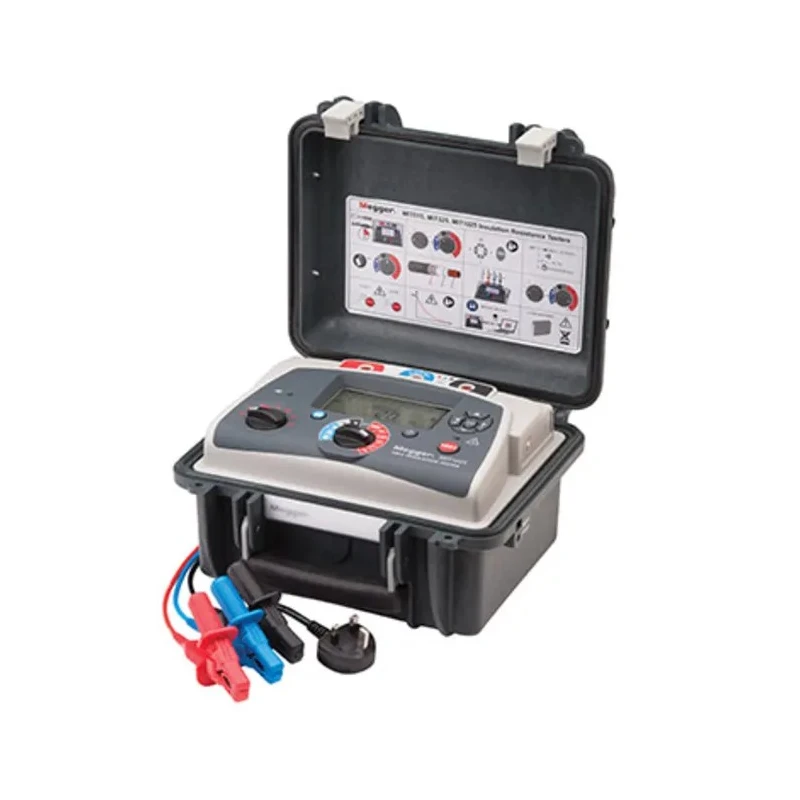

Megger Insulation Tester, LCD Display, 250 V Min Test Voltage, 5 kV Max Test Voltage, 10 TΩ Resistance, Lithium-ion MIT525
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Display Type | LCD |
| Brand | Megger |
| Battery Life | 6h |
| Battery type | Lithium-ion |
| Height | 181mm |
| Length | 315mm |
| Model | MIT525 |
| Gross Weight | 4.5kg |
| Width | 285mm |
| Maximum Operating Temperature | 50°C |
| Tester Type | Insulation Tester |
| Minimum Operating Temperature | -20°C |
| Test Current | 6mA |
| Plug Type | 3-Pin (Global), Type C - EU |
| Minimum test Voltage | 250V |
| Standards/Approvals | IEC 61326-1 |
| Safety Category Level | 1000 V CAT II, 600 V CAT III |
| Safety Category Voltage | 600V |
| Maximum Test Voltage | 5kV |
| Insulation Testing Resistance | 10TΩ |
| Megger Insulation Resistance Tester, 250 V Min, 5 kV Max, 30 TΩ CAT IVBrand | Megger |
Key Features
- Features a clear LCD display for easy result reading.
- Powered by a rechargeable lithium-ion battery offering up to 6 hours of continuous operation.
- Lockable terminals prevent accidental lead disconnections during testing.
- IP65 rated for dust protection and low-pressure water jets.
- Operates in a wide temperature range from -20°C to 50°C for harsh environments.
- Safety rated for use with 1000 V CAT II and 600 V CAT III categories.
- Test current of 6 mA ensures reliable insulation resistance testing.
- Compact and portable with dimensions 315 mm length, 285 mm width, and 181 mm height.
Product Description
Megger MIT525 Insulation Tester is a robust and accurate instrument designed for measuring insulation resistance to prevent electrical hazards. Equipped with an LCD screen, this tester measures insulation resistance up to 10 TΩ, with minimum and maximum test voltages of 250 V and 5 kV respectively.
Its rechargeable lithium-ion battery provides up to six hours of testing time, allowing extended use in field or industrial environments. Lockable terminals eliminate the risk of accidental disconnections, enhancing safety during use.
The device is IP65 rated, making it resistant to dust and low-pressure water jets, suitable for use in harsh conditions with operating temperatures ranging from -20°C to 50°C. It supports safety category voltages of 1000 V CAT II and 600 V CAT III, ensuring user safety in demanding electrical environments.
Typical applications include testing circuit breakers, transformers, electric motors, and generators. The 6 mA test current facilitates precise detection of insulation faults that could lead to equipment failure or hazards.
Its compact design with dimensions of 315 mm length, 285 mm width, and 181 mm height, and a weight of 4.5 kg make it portable for on-site testing needs. Compliance with IEC 61326-1 ensures adherence to relevant electrical testing standards.
Clear LCD display for easy and accurate readings. Long-lasting lithium-ion battery supports 6 hours operation. Lockable terminals safeguard against lead disconnections. High IP65 rating protects against dust and water ingress.
Wide operating temperature range suitable for harsh environments. Safety category rated for high voltages ensuring operator protection. Compact and portable with ergonomic design. IEC 61326-1 certified ensuring compliance to standards.
This Insulation Tester is ideal for industrial, electrical maintenance, construction, manufacturing, and safety compliance testing environments. Explore more Electrical Test & Measurement products on EnvMart for comprehensive solutions in your measurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Megger MIT525 can measure insulation resistance up to 10 TΩ.
This insulation tester has a minimum test voltage of 250 V and a maximum test voltage of 5 kV.
The test current for this model is 6 mA, which ensures reliable insulation resistance testing.
It operates within a temperature range of -20°C to 50°C, making it suitable for harsh environments.
It features a clear LCD display for easy result reading during testing.
The lithium-ion battery provides up to 6 hours of continuous operation.
It is safety rated for use with 1000 V CAT II and 600 V CAT III categories.
This model weighs 4.5 kg, making it portable for on-site testing.
The MIT525 is IP65 rated, providing protection against dust and low-pressure water jets.
It complies with IEC 61326-1, ensuring adherence to relevant electrical testing standards.
The dimensions of the MIT525 are 315 mm in length, 285 mm in width, and 181 mm in height.
Typical applications include testing circuit breakers, transformers, electric motors, and generators.
