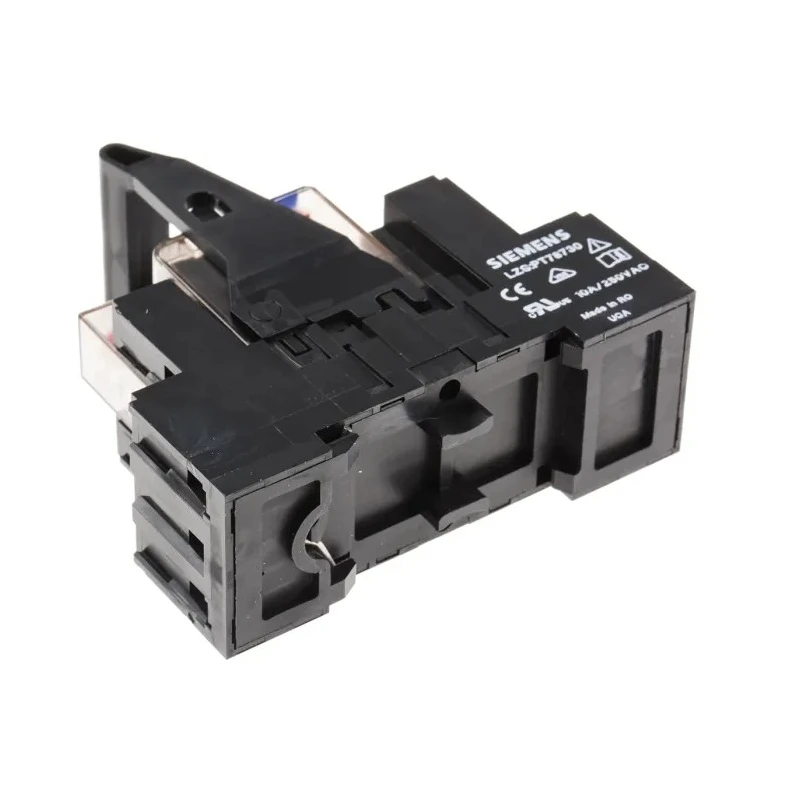

Siemens LZS Series Coupling Relay Plug-in 24V DC Coil 3PDT LZS:PT3A5L24

Siemens LZS:PT3A5L24 Coupling Relay is a plug-in type electromechanical interface relay designed for industrial and automation control applications, powered by a 24V DC coil and featuring a 3PDT contact configuration. It supports reliable switching of up to 8 amperes at 230V AC or 24V DC, making it suitable for a variety of control circuit uses.

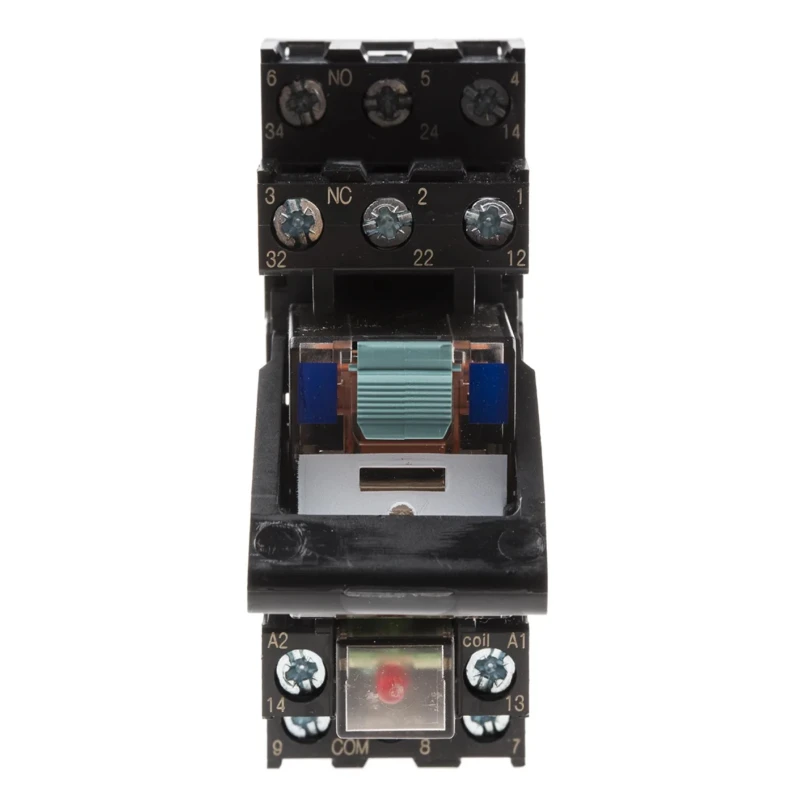

The LZS series relays come as comprehensive devices including the relay module, socket, hold/reject clip, LED indicator module, and inscription label for easy identification, ensuring robustness and ease of maintenance in industrial environments. The relay terminals employ tried and tested screw connections with vibration-proof properties, and hard gold-plated contacts optimize interaction with electronic control systems.

This coupling relay is designed without a latching mechanism, offering standard plug-in switching operation tested to AC-15 and DC-13 switching capacities. Its compact dimensions (28mm length, 28mm width, and 72mm height) allow easy integration into relay panels and electrical control cabinets.

Applications include automation control, electromechanical interface switching, industrial machinery control, and other electrical installations requiring reliable relay switching at low voltage DC coil operation.

Operates at a coil voltage of 24V DC for precise control. Features a 3PDT contact configuration suitable for various switching needs. Plug-in mount delivers fast and secure installation. Screw terminal type assures stable, vibration-resistant connections.

Supports switching currents up to 8 amperes at both AC and DC voltages. Compact design with dimensions: 28mm length × 28mm width × 72mm height. Complies with GOST standards for safety and performance. Full assembly includes socket, LED module, hold/reject clip, and label.

This Siemens LZS relay is ideal for industrial or commercial use in electromechanical switching systems, easily integrated within automation panels and control gear. Explore EnvMart's extensive range of Relays and automation components for your industrial and electrical needs.
