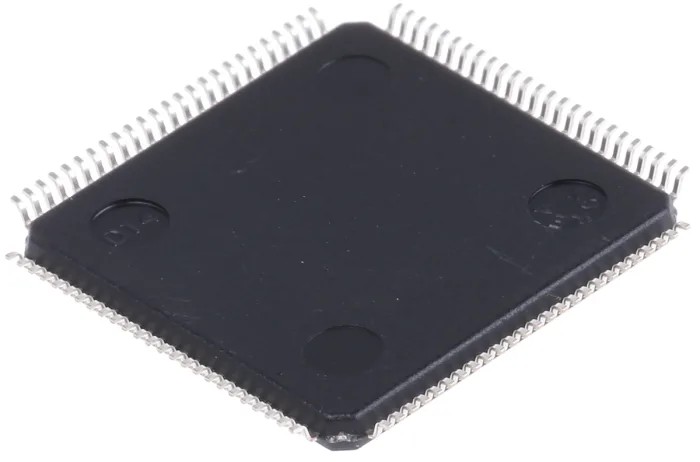

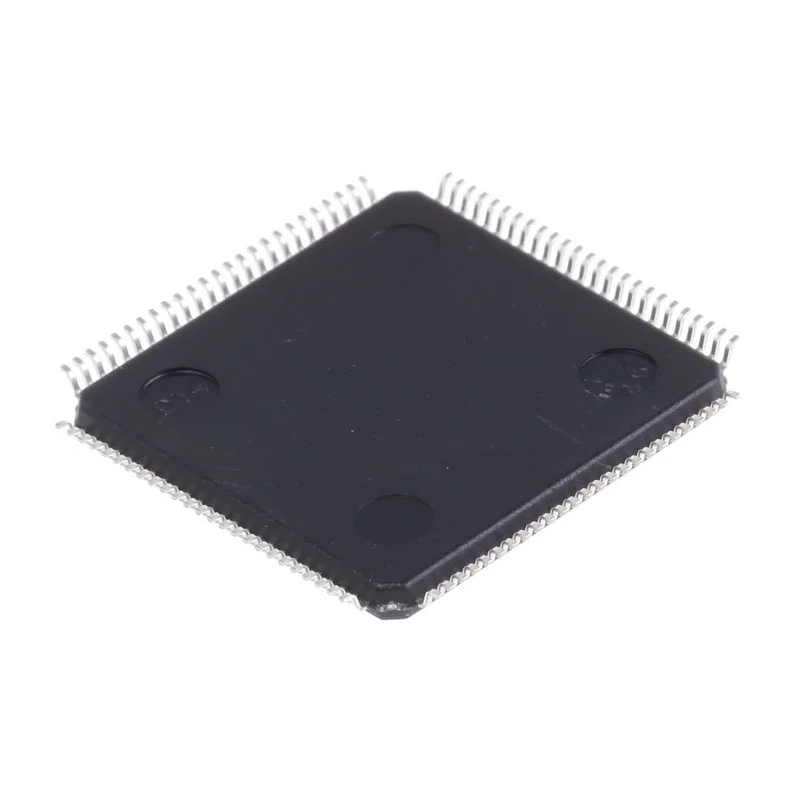

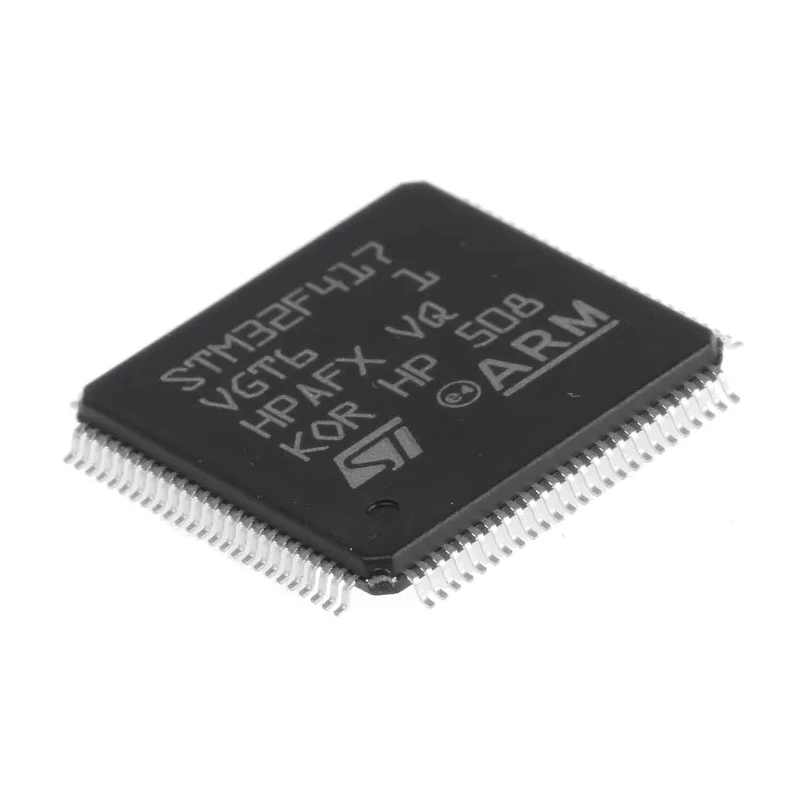

STMicroelectronics STM32F4 Series 32-Bit ARM Cortex M4 Microcontroller 168 MHz 1.024MB FLASH 100-Pin LQFP STM32F417VGT6
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Temperature range | - 40 to +85 °C and - 40 to +105 °C |
| Length | 14.2mm |
| Model | STM32F417VGT6 |
| Width | 14.2mm |
| Mount Type | Surface |
| Series | STM32F4 |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB OTG FS |
| Ram size | 192kB |
| Timers | 16-bit and 32-bit |
| Flash Memory | up to 1 MB, SRAM: up to 192 KB, Back up RAM: up to 4 KB |
| Pin Count | 100 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 465mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | ARM Cortex M4 |
| Program Memory Size | 1.024MB |
| Maximum Clock Frequency | 168MHz |
| Number of Programmable I/Os | 140 |
| Number of Timers | 14 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 12 Bit |
| MCU 32-Bit, ARM Cortex M4, 1MB FlashBrand | STMicroelectronics |
Key Features
- Includes 192kB RAM ensuring efficient memory management.
- Operates within a supply voltage range of 1.8 to 3.6 V for versatile power applications.
- Supports 140 programmable input/output pins and 16 x 12-bit ADC channels for diverse interfacing.
- Features 2 x 12-bit DACs, 14 timers, and comprehensive communication peripherals like USB OTG FS and multiple USARTs.
- Industrial-grade temperature operating range from -40 to 85 °C for robust environment tolerance.
- Compact 100-pin LQFP package with dimensions 14.2 mm x 14.2 mm x 1.45 mm.
- Includes hardware crypto/hash processor to accelerate security algorithms.
- Low power dissipation of 465mW for energy-efficient operation.
Product Description
STMicroelectronics STM32F417VGT6 is a 32-bit ARM Cortex M4 microcontroller designed for high-performance embedded applications. Powered by a 168 MHz CPU, it features 1.024MB of FLASH memory and 192kB RAM to support complex code execution and data storage needs.
The device is housed in a 100-pin LQFP package measuring 14.2 mm by 14.2 mm with a height of 1.45 mm, optimized for surface mounting. It operates with voltage supply from 1.8 V to 3.6 V and sustains industrial operating temperatures from -40 °C to +85 °C, suitable for demanding environments.
Advanced peripherals enhance its versatility, including 140 programmable I/O pins, 16 ADC channels with 12-bit resolution, and 2 DACs also at 12-bit resolution. It includes 14 timers with 16-bit and 32-bit options, supporting PWM and motor control.
Communication interfaces comprise USB OTG FS, multiple USARTs and UARTs, SPI, I2C, and SDIO/MMC for storage interface. The integrated floating-point unit (FPU) and digital signal processing (DSP) instructions improve computational efficiency. The microcontroller also features an embedded crypto/hash processor accelerating AES and hash computations, enhancing security capabilities.
The STM32F4 series targets industrial, HVAC, motor control, video intercom, medical equipment, and home audio applications, offering robust computing performance and peripheral set for diverse embedded solutions.
Includes 192kB RAM ensuring efficient memory management. Operates within a supply voltage range of 1.8 to 3.6 V for versatile power applications. Supports 140 programmable input/output pins and 16 x 12-bit ADC channels for diverse interfacing.
Features 2 x 12-bit DACs, 14 timers, and comprehensive communication peripherals like USB OTG FS and multiple USARTs. Industrial-grade temperature operating range from -40 to 85 °C for robust environment tolerance. Compact 100-pin LQFP package with dimensions 14.2 mm x 14.2 mm x 1.45 mm.
Includes hardware crypto/hash processor to accelerate security algorithms. Low power dissipation of 465mW for energy-efficient operation. Embedded digital signal processing and floating point unit enhances performance for complex applications.
This microcontroller is suitable for industrial control, embedded processing, and real-time applications requiring compute-intensive operations with security needs. Explore more Microcontrollers and semiconductor solutions at EnvMart for your next embedded project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F417VGT6 operates at a maximum clock frequency of 168 MHz.
It operates within a supply voltage range of 1.8 V to 3.6 V.
This model features 1.024 MB of FLASH memory for program storage.
The dimensions of the package are 14.2 mm x 14.2 mm x 1.45 mm.
It supports 140 programmable input/output pins for versatile interfacing.
The microcontroller operates within an industrial-grade temperature range of -40 °C to +85 °C.
It includes USB OTG FS, multiple USARTs, SPI, I2C, and SDIO/MMC interfaces.
This model features 16 ADC channels with 12-bit resolution.
The microcontroller has a low power dissipation of 465 mW.
It includes 14 timers, which support both 16-bit and 32-bit operations.
Yes, it includes a hardware crypto/hash processor to accelerate security algorithms like AES.
This microcontroller has 192 kB of RAM, which aids in efficient memory management.
