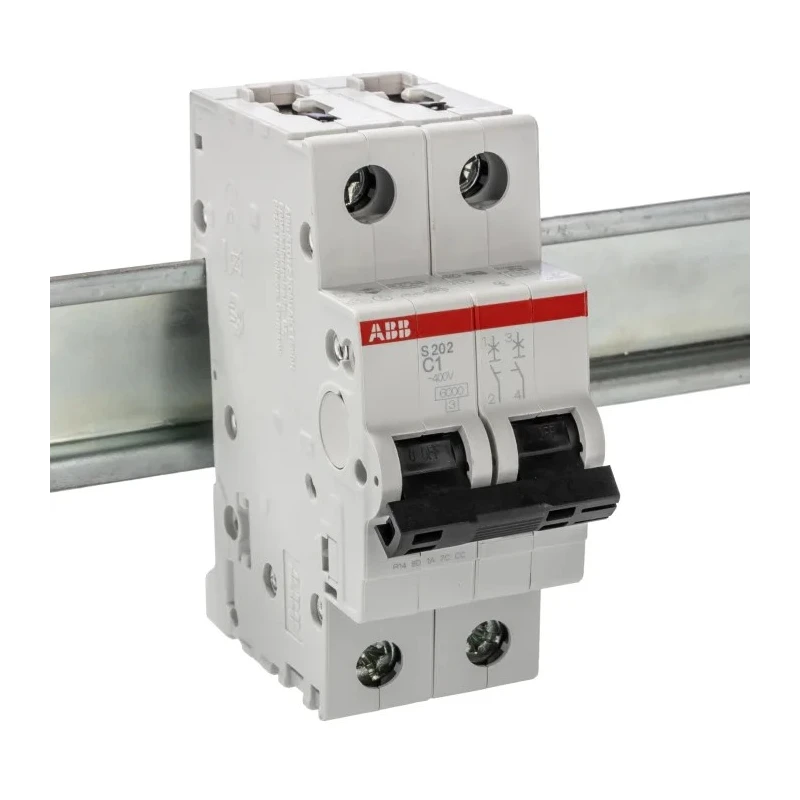

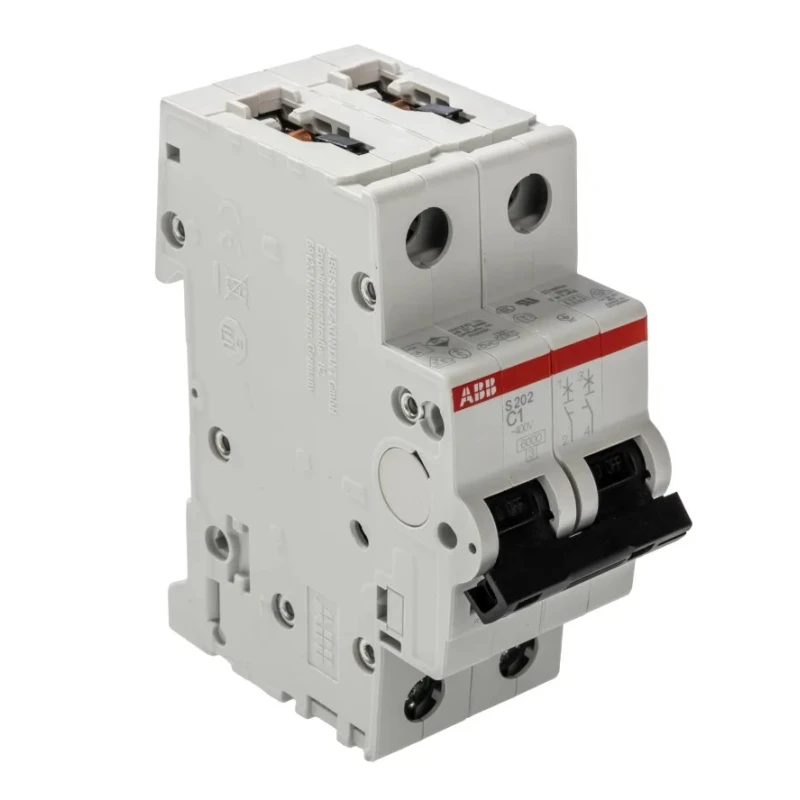

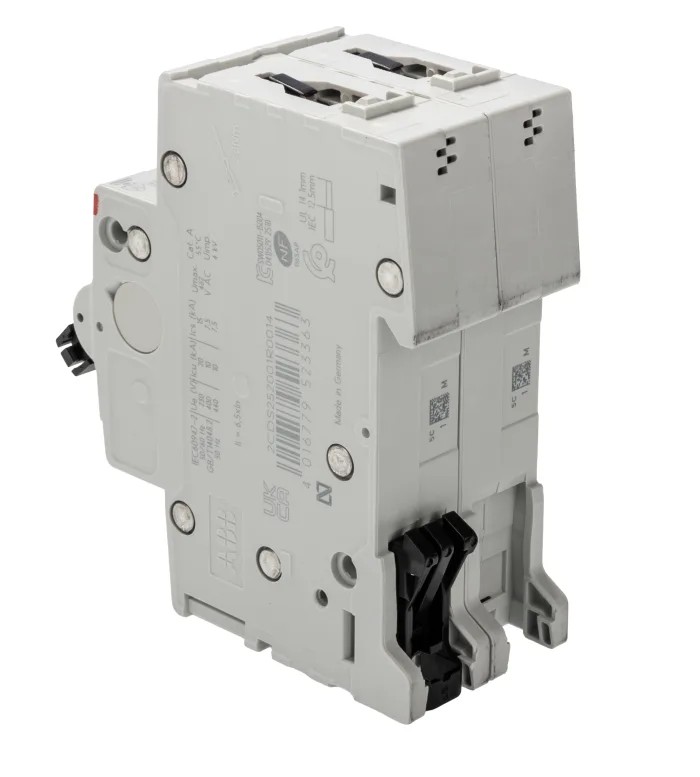

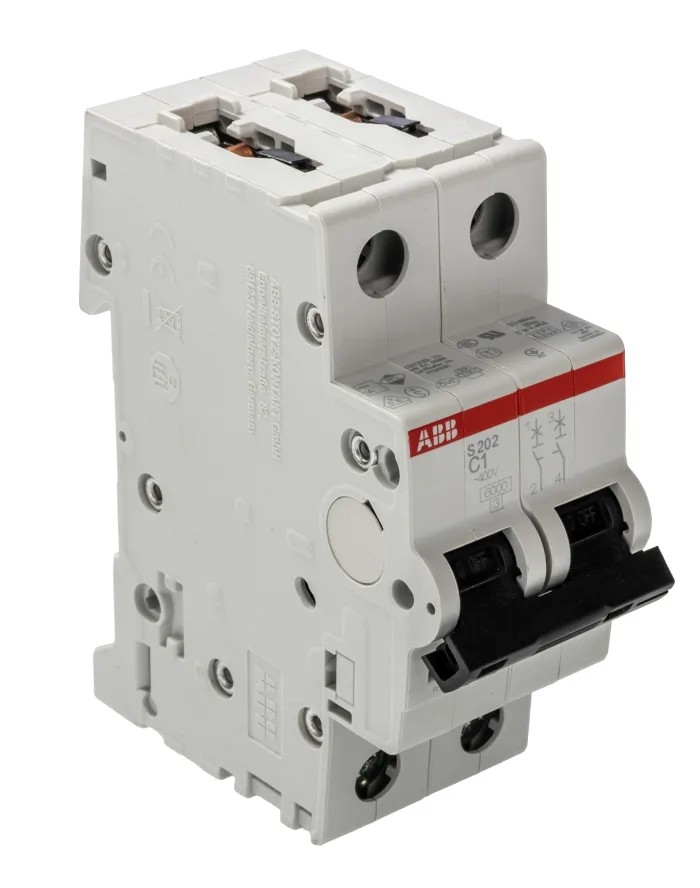

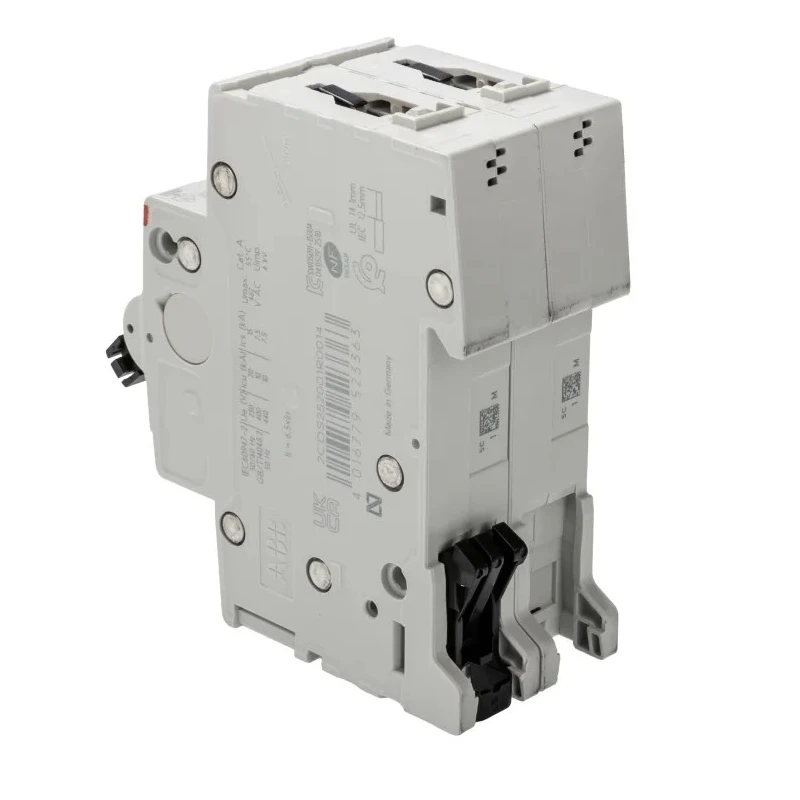

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 1A, Type C, 400V AC, 125V DC, 6 kA 2CDS252001R0014 S202-C1

ABB 2CDS252001R0014 S202-C1 System Pro M Compact S200 Series Miniature Circuit Breaker is a 2-pole device rated at 1 ampere with a type C tripping characteristic. It operates at 400V AC and 125V DC, designed for robust electrical system protection in industrial, commercial, and automation applications.

This miniature circuit breaker efficiently protects downstream equipment from electrical faults such as overloads and short circuits by breaking the circuit within milliseconds. The type C trip curve makes it ideal for installations experiencing moderate inductive loads, common in motor and lighting circuits.

The unit mounts easily on DIN rails and includes screw terminals designed with bi-directional cylinder-lift technology to maintain stable electrical connections even in environments subject to vibrations. The compact size reduces panel space requirements, measuring only 35mm wide and 69mm deep.

Engineered to withstand harsh conditions, this MCB operates reliably within a temperature range of -25°C to +55°C. Its breaking capacity of 6kA ensures safe interruption of short circuits and fault currents, protecting equipment and personnel.

Additional features include a lever-operated reset actuator for fast resetting, an integrated contact position indicator for visual confirmation of breaker status, and its design supports up to 20,000 mechanical operation cycles, ensuring longevity and dependable performance.

Applications of this product include mining equipment systems, oil and gas industry installations, security system circuits, and high-fidelity audio device protection. The product is manufactured in Germany, ensuring premium quality and adherence to rigorous international standards.

The System Pro M Compact series by ABB combines advanced technology with user convenience, making it a reliable choice for circuit protection. This model, 2CDS252001R0014 S202-C1, offers both performance and safety required in modern electrical networks.

Explore the extensive range of circuit breakers and electrical protection devices from ABB and other leading manufacturers at EnvMart to find solutions tailored to your industrial and commercial needs.

This Miniature Circuit Breaker offers reliable protection against short circuits and overloads. It features a type C tripping characteristic suitable for inductive loads. Designed for DIN rail mounting with screw terminal types for secure installation.

Operating temperature range from -25°C to +55°C ensures durability in harsh environments. Compact dimensions with 35mm width and 69mm depth for space-saving installation. Breaking capacity of 6 kA allows safe interruption of heavy-duty electrical faults.

Equipped with a lever reset actuator for quick and easy resetting after trips. Built-in contact position indicator for clear status visibility. Mechanical endurance rated for 20,000 cycles ensures long-term operational reliability.

Manufactured in Germany, meeting high standards of quality and performance.
