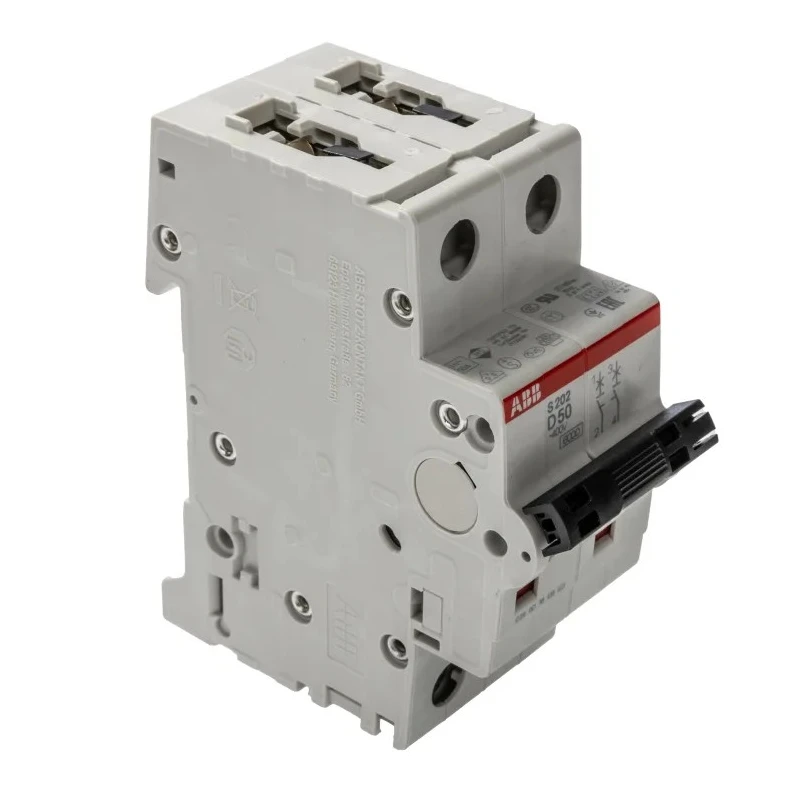

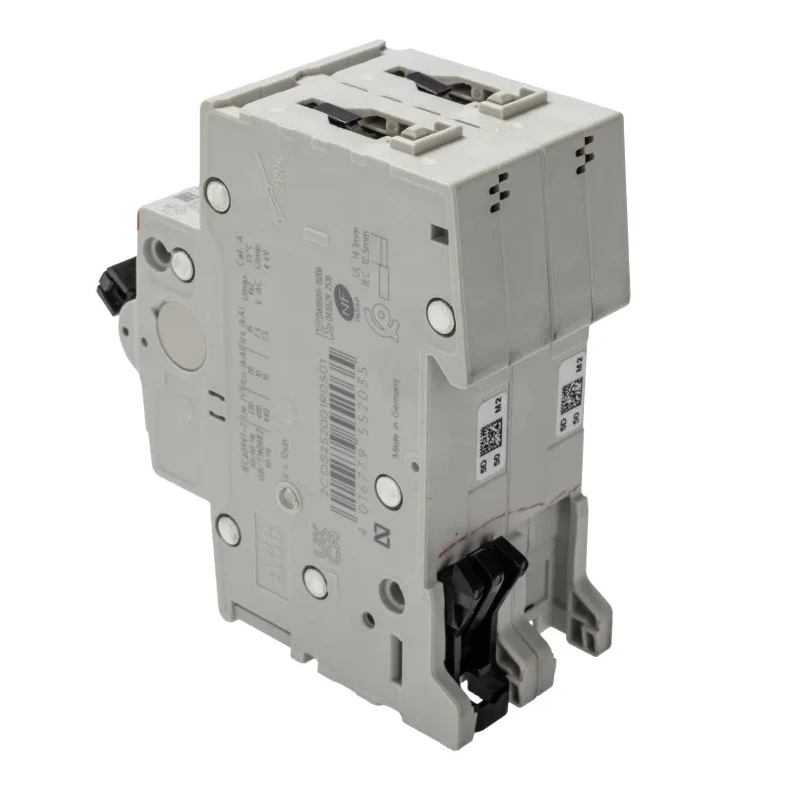

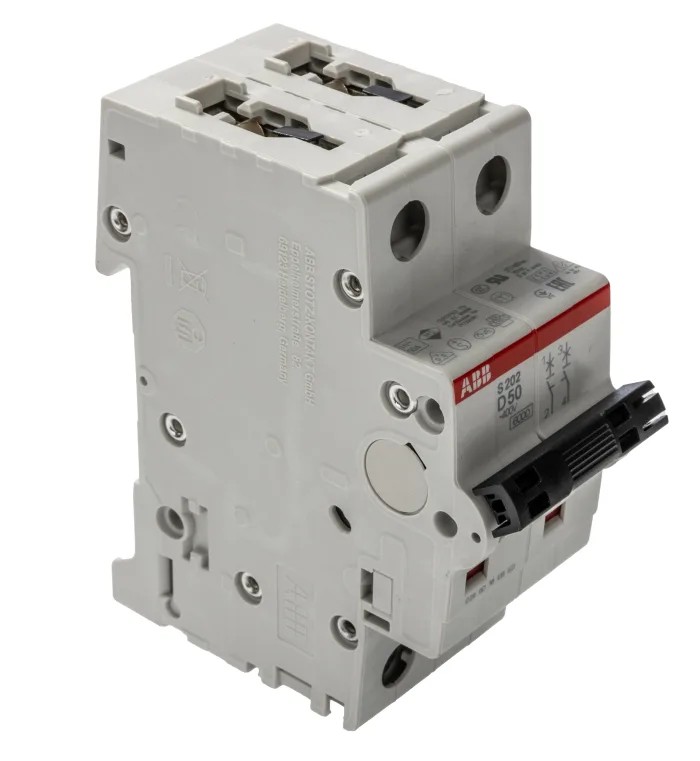

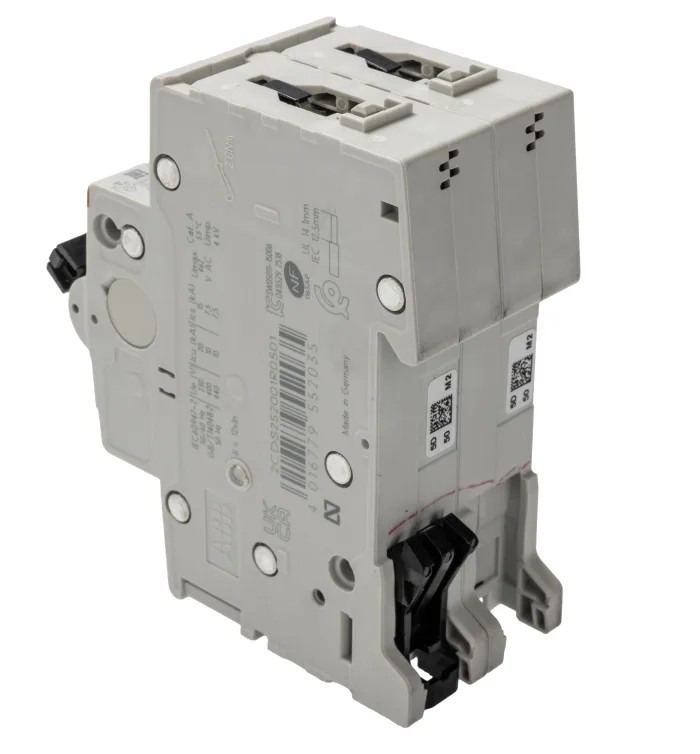

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 50A, Type D, 400V AC, 125V DC 2CDS252001R0501 S202-D50

ABB 2CDS252001R0501 S202-D50 Model Miniature Circuit Breaker from the System Pro M Compact S200 series is designed to provide reliable overload and short circuit protection for electrical circuits. With a current rating of 50A and a breaking capacity of 10kA, this two-pole MCB supports dual voltage operation of 400V AC and 125V DC, making it versatile for different electrical environments in industrial, commercial, and automation applications.

This circuit breaker operates on combined electromagnetic and thermomagnetic tripping mechanisms for enhanced safety, ensuring fast response to overcurrent and short circuits. Its lever actuator simplifies resetting after trips, allowing quick restoration of service. The unit mounts easily on conventional DIN rails, optimizing panel space and installation efficiency.

The MCB features screw terminals for secure electrical connections and achieves IP40 and IP20 ratings, providing protection against dust and contact with hazardous parts. It complies with international IEC/EN 60898-1 and IEC/EN 60947-2 standards to guarantee quality and safety.

Ideal for panel boards in commercial and industrial machinery, the device safeguards equipment by interrupting faulty currents effectively. The compact physical dimensions (69mm height, 35mm width, and 69mm depth) aid in fitting into constrained electrical enclosures.

This product is designed for sustainability in line with Better World principles, featuring easy disassembly for recycling and maintenance. Applications include commercial electrical installations, industrial machinery protection, and automation systems requiring dependable circuit protection.

Features dual voltage ratings: 400V AC and 125V DC for versatile applications. Designed with electromagnetic and thermomagnetic tripping mechanisms for enhanced safety. Simple lever actuator allows easy reset after a trip.

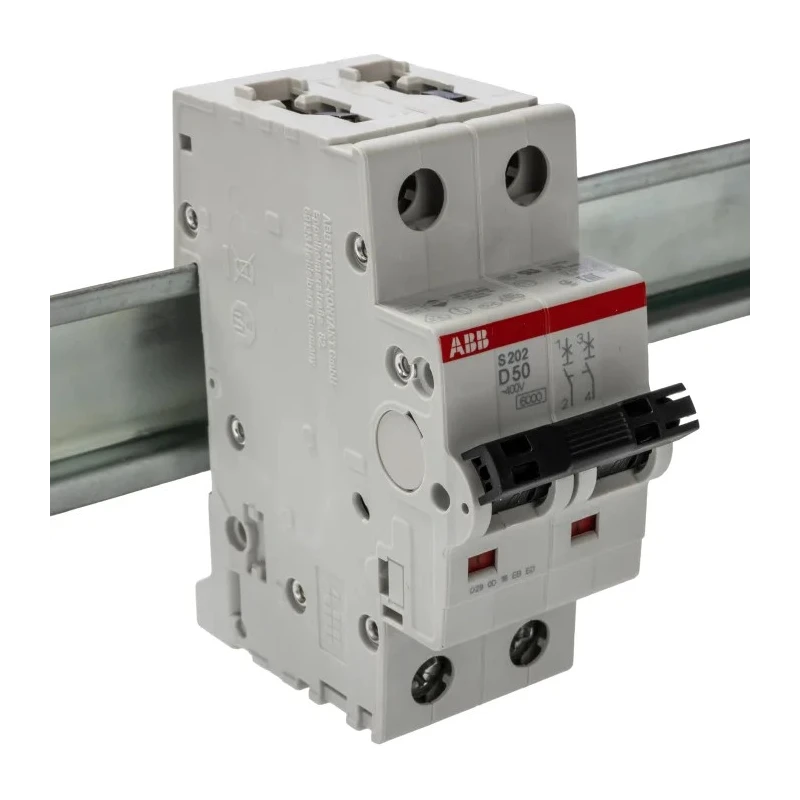

Mounts conveniently on DIN rails for efficient panel installation. Robust screw terminal type ensures secure wire connections. Compact size with dimensions 69mm height, 35mm width, and 69mm depth. Rated with IP40 and IP20 for protection against solid objects.

Conforms to IEC/EN 60898-1 and IEC/EN 60947-2 standards. Engineered for industrial and commercial electrical circuit protection needs.

For optimal performance, installation should comply with local electrical regulations and ensure secure mounting on DIN rails. This ensures safety and longevity of electrical systems in diverse industrial, laboratory, commercial, and automation settings. Explore the ABB range of circuit breakers in EnvMart for comprehensive electrical protection solutions.
