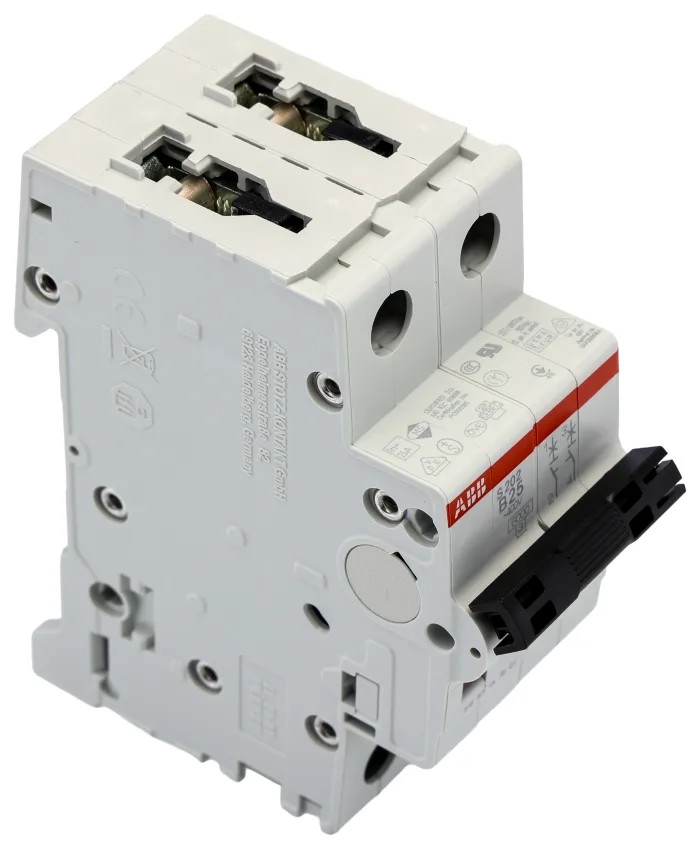

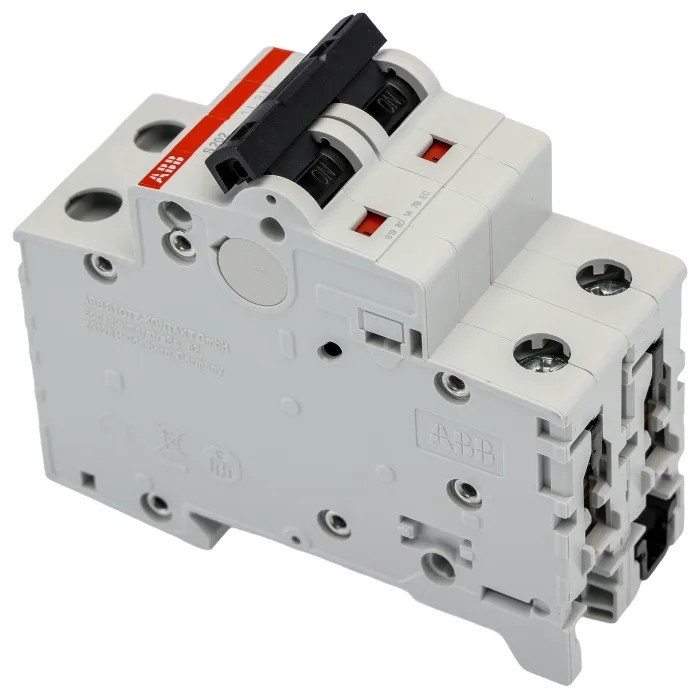

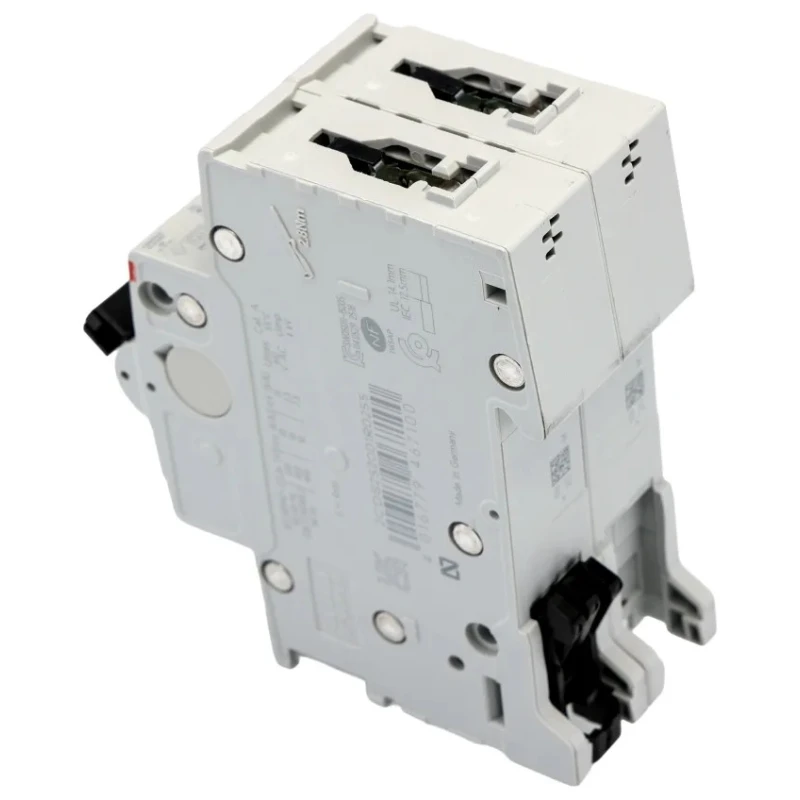

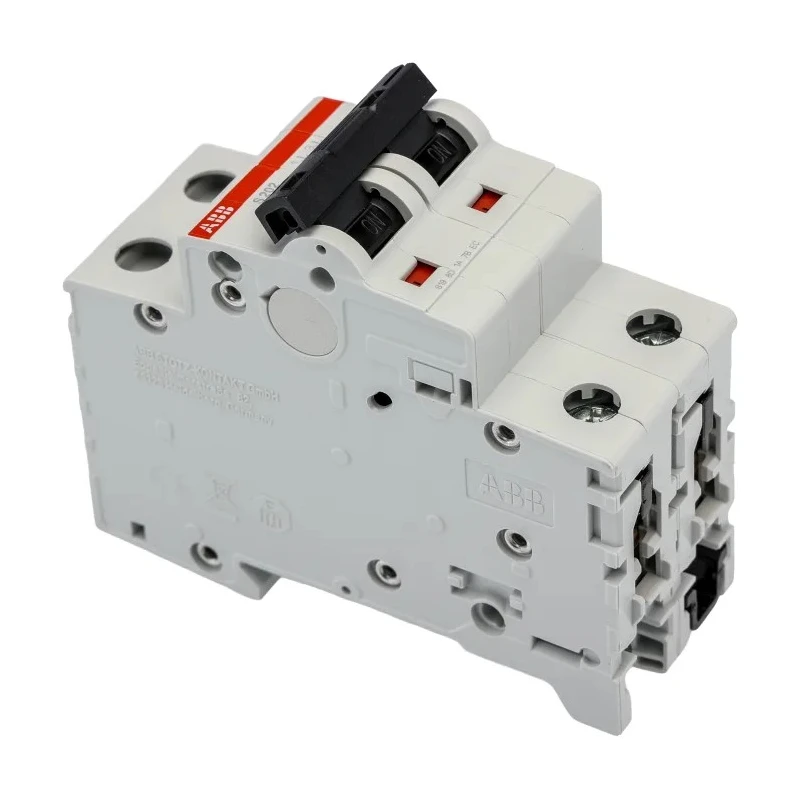

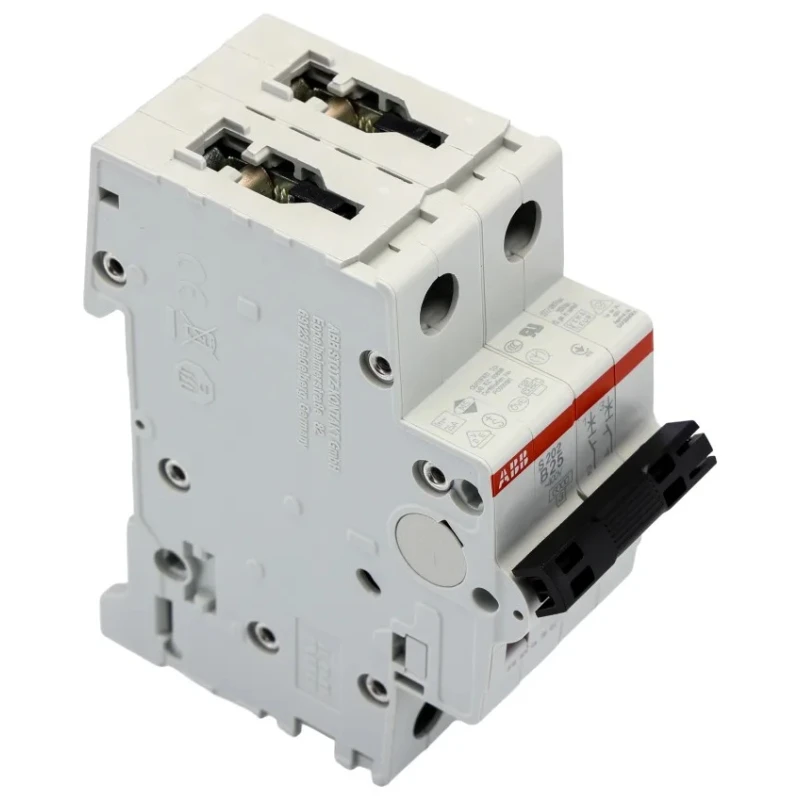

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 25A, Type B, 400V AC, 125V DC, 6 2CDS252001R0255 S202-B25

ABB 2CDS252001R0255 S202-B25 System Pro M Compact S200 Miniature Circuit Breaker is engineered for commercial and industrial electrical protection applications. It features a 2-pole design with a 25A current rating to provide reliable overload and fault protection.

This breaker uses a thermal tripping mechanism that safeguards circuits by disconnecting power when current exceeds safe limits, preventing overheating and equipment damage. With a Type B trip characteristic, it is suitable for standard load scenarios.

With compact dimensions of 35mm width, 69mm depth, and 88mm height, it offers space-saving installation on standard DIN rails. The breaker employs a reliable screw terminal system for secure wiring connections and is equipped with a toggle switch for manual reset control.

The product supports AC voltage up to 400V and DC voltage up to 125V, with a breaking capacity of 6 kA that ensures safe interruption of fault currents, protecting both equipment and personnel. It carries IP20 and IP40 ratings, providing ingress protection appropriate for typical installation environments.

Manufactured in Germany and compliant with IEC/EN 60898-1 and IEC/EN 60947-2 standards, this breaker meets stringent quality and safety norms. The design also emphasizes environmental responsibility with features for disassembly and recycling, aligning with sustainable practices.

Type B tripping characteristics ensure appropriate protection for common load types. Thermal trip mechanism prevents circuit damage due to overload. Compact construction helps optimize panel space utilization. DIN rail mounting and screw terminals enable straightforward installation.

6 kA breaking capacity for reliable fault current interruption. Rated for both 400V AC and 125V DC applications. IP20 and IP40 ingress protection for safety in installation environments. Toggle switch actuator facilitates easy manual reset.

Designed for disassembly to assist maintenance and promote recycling. Certified to IEC/EN electrical safety standards.

This Miniature Circuit Breaker is ideal for commercial electrical installations, industrial facilities, and automation systems requiring dependable circuit protection and easy maintenance. Available as part of the ABB System Pro M Compact S200 range, it supports flexible electrical design and system expansion with compatible auxiliary components.
