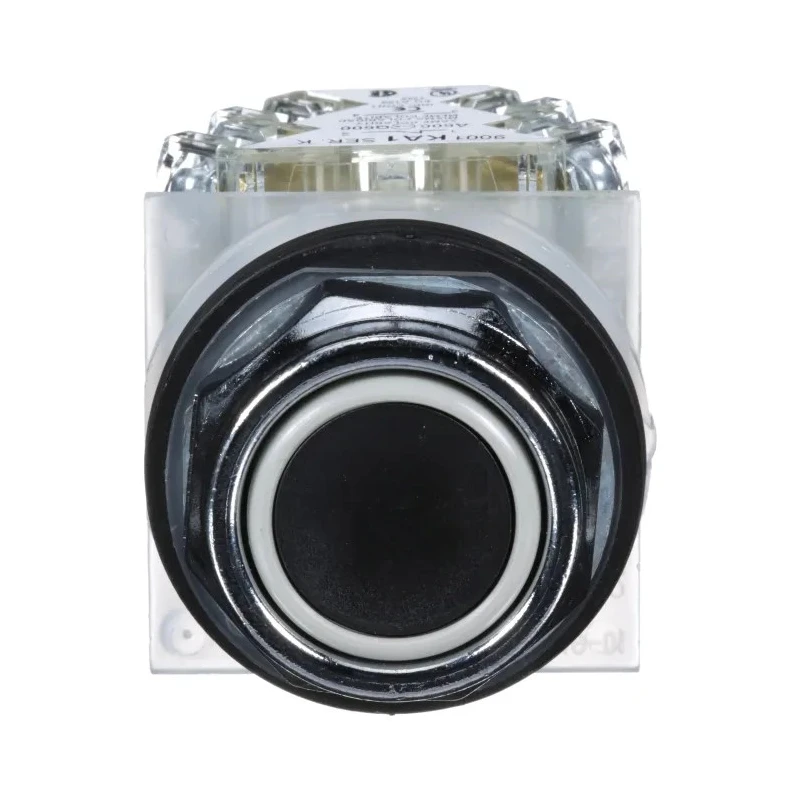

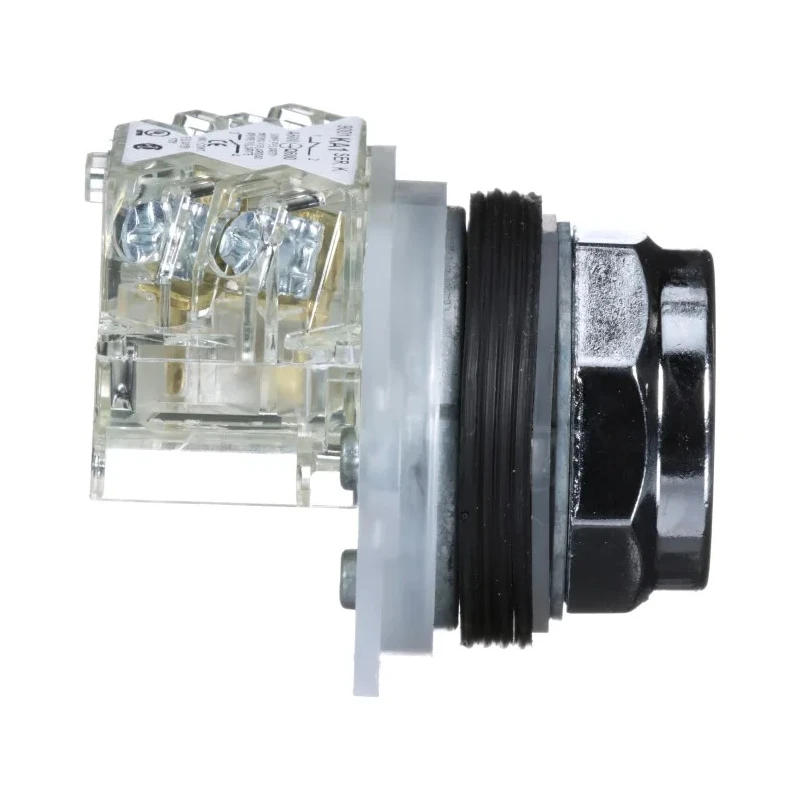

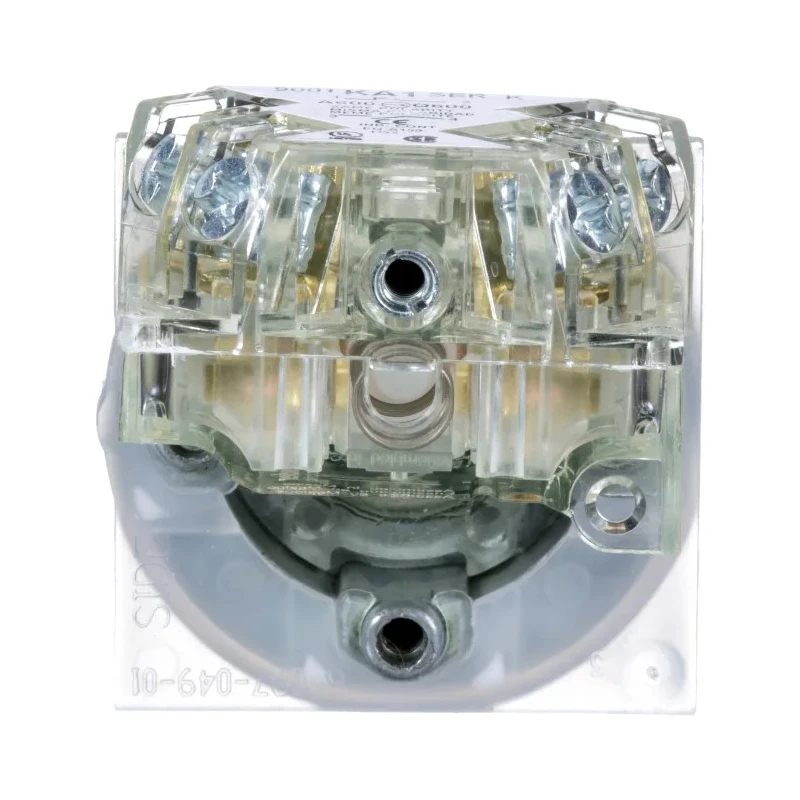

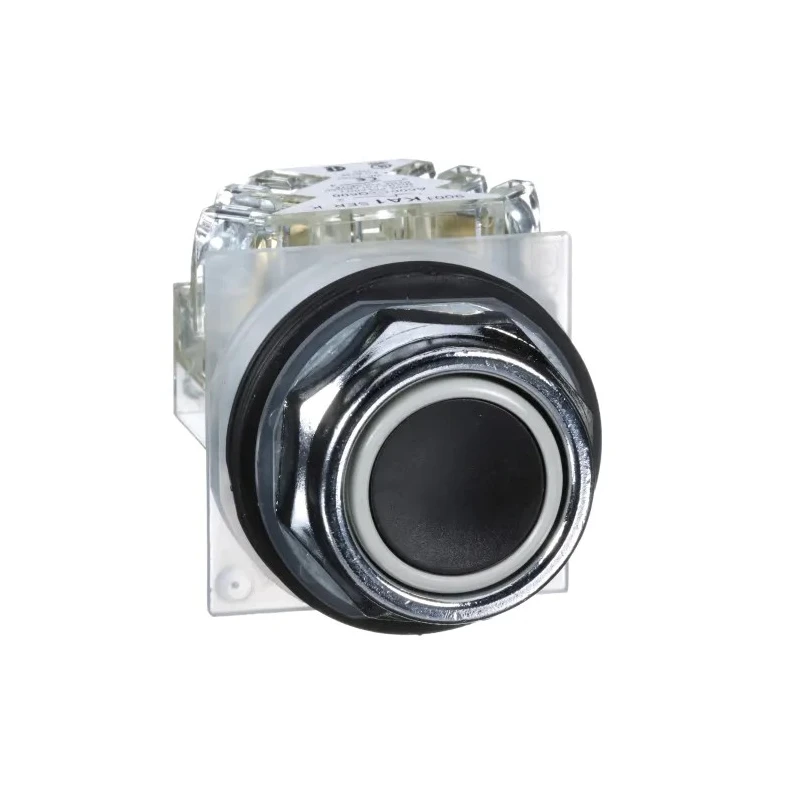

Schneider Electric Harmony 9001K Series Push Button Switch, Spring Return, 30 mm Cutout, 1 CO, Black LED, IP66 9001KR1BH13

Name: Schneider Electric Harmony 9001K Series Push Button Switch, Spring Return, 30 mm Cutout, 1 CO, Black LED, IP66 9001KR1BH13
Brand: Schneider Electric
SKU: 225276
Price: 8651.37 INR
Availability: InStock



Category Push Button Switches Brand Schneider Electric Condition New

Specifications

Country of Origin	France
Brand	Schneider Electric
Height	45mm
Length	56mm
Model	9001KR1BH13
IP Rating	IP66
Width	48mm
Series	Harmony 9001K
Maximum Operating Temperature	70°C
Contact Configuration	1 CO
Minimum Operating Temperature	-25°C
Panel Cutout Size	30 mm
Terminal type	Screw
Standards/Approvals	RoHS, WEEE, REACH, EU RoHS
LED Colour	Black
Switch Operation	Spring Return
Actuator Colour	Black
Contact DC Voltage	125V dc
Actuator Style	Octagonal
Contact AC Voltage	240V ac

Key Features

Features a black octagonal actuator with a black LED for clear indication.
Constructed for heavy-duty performance with IP66 rated protection against dust and water.
Operates within temperature range of -25°C to 70°C ensuring durability in extreme environments.
Includes a 1 changeover (1 CO) contact configuration with screw terminal connection.
Compatible with 240V AC and 125V DC contact voltages for versatile use.
Chromium plated metal finish with zinc alloy fixing collar for enhanced durability.
Achieves high mechanical reliability with 5,000,000 operational cycles.
Meets international standards including RoHS, WEEE, REACH, EU RoHS, EN/IEC 60947-5-1, and UL 508.

Product Description

Schneider Electric 9001KR1BH13 Harmony 9001K Series push button switch offers dependable performance with a spring return mechanism and a 30 mm cutout size, optimized for industrial and automation applications.

The switch features a black octagonal actuator with an integrated black LED that provides clear operational status indication. Its chromium plated metal construction paired with a zamak-based fixing collar ensures robust durability in demanding conditions.

Engineered to withstand a wide temperature range from -25°C to 70°C and rated IP66, this push button switch is completely protected against dust ingress and strong water jets, making it suitable for indoor and outdoor use. The device supports 1 CO (changeover) contact configuration with secure screw terminal connections, compatible with 240V AC and 125V DC contact voltages.

It boasts high mechanical endurance, rated for 5 million operational cycles, ensuring consistent reliability in safety-critical environments. Compliance with international standards such as RoHS, WEEE, REACH, EU RoHS, EN/IEC 60947-5-1, and UL 508 guarantees its quality and safety requirements.

This push button switch is ideal for control stations, emergency stop functions, and industrial automation in automotive production lines, commercial warehouses, and manufacturing plants requiring reliable operator interfaces.

Black octagonal actuator with black LED for status indication. Spring return operation with 5,000,000 mechanical cycles durability. Rated IP66 protection according to IEC 60529 standards. 1 CO contact configuration with screw terminal type connection.

Suitable for 240V AC and 125V DC operating voltages. Operates reliably in temperature range -25°C to 70°C. Chromium plated metal finish with zamak collar for durability. Complies with RoHS, WEEE, REACH, EU RoHS, EN/IEC 60947-5-1, and UL 508 certifications.

Applications include control stations, emergency stops, and industrial automation. Discover more quality Push Button Switches from Schneider Electric and explore EnvMart's comprehensive catalog for your industrial control requirements.
