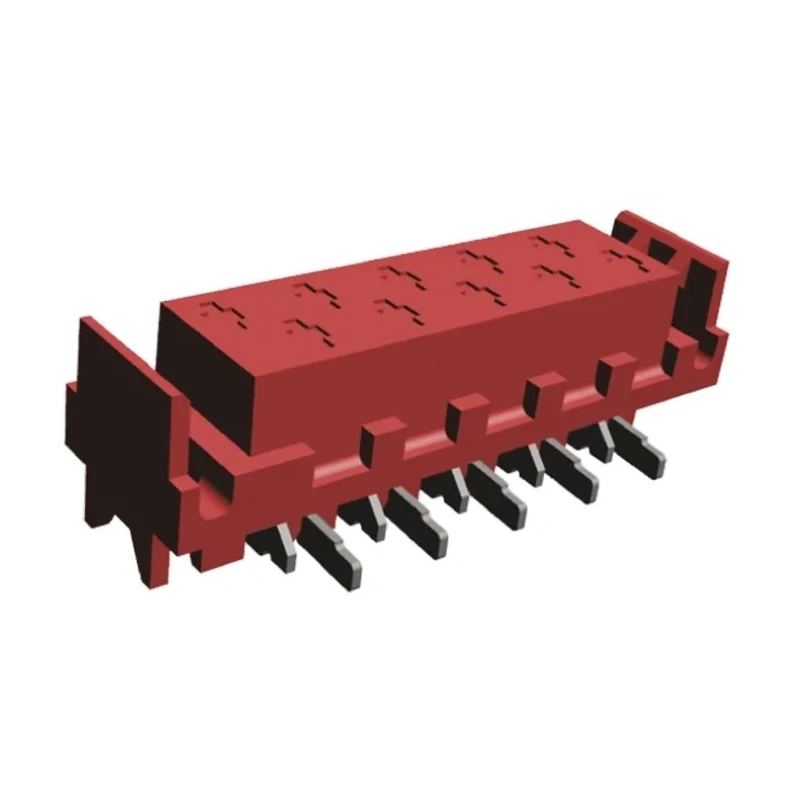

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket 10-Contact 2 Row 2.54 mm Pitch Solder 1-338069-0

TE Connectivity 1-338069-0 Micro-MaTch Series Straight Surface PCB Socket is a high-quality female-on-board SMT connector designed for board-to-board applications. It features 10 contacts in 2 rows with a 2.54 mm pitch and uses solder termination, providing a robust and reliable electrical connection on printed circuit boards.

The compact and space-saving design allows for efficient use of PCB area. The bronze contacts with tin plating provide excellent conductivity and corrosion resistance. A contact spring system inside the socket prevents fretting corrosion by maintaining a gas-tight connection, enhancing reliability especially in vibrating or thermally expanding environments.

The socket housing is made from liquid crystal polymer that ensures high mechanical strength and stability. This connector is polarized to prevent incorrect mating and has a straight orientation for straightforward assembly. It supports a maximum current of 1.5 A and voltage rating of 100 V, with an operating temperature range of -40°C to 125°C, suitable for demanding industrial environments.

Applications include production and material handling equipment, robotics, motors, control units, central heating units, car radios, navigation systems, audio equipment, and other electronic devices requiring reliable PCB connectivity.

This PCB socket features 10 contacts arranged in 2 rows for efficient connectivity. The 2.54 mm pitch allows for precise and secure mounting on printed circuit boards. Made with bronze contacts plated with tin to ensure corrosion resistance and durability.

Surface mount type with a straight orientation for versatile PCB assembly. Supports current up to 1.5 A and voltage up to 100 V suitable for low power applications. Housing is constructed from liquid crystal polymer material providing high mechanical strength.

The contact spring system prevents fretting corrosion and ensures a gas-tight reliable connection. Operating temperature range from -40°C to 125°C enables use in various environments. Polarized design prevents mismating and ensures proper connection orientation.

Ideal for use in robotics, control units, navigation systems, audio equipment, and industrial electronics. Explore our extensive selection of TE Connectivity PCB Sockets and connectors to meet your electronic design and manufacturing requirements at EnvMart.
