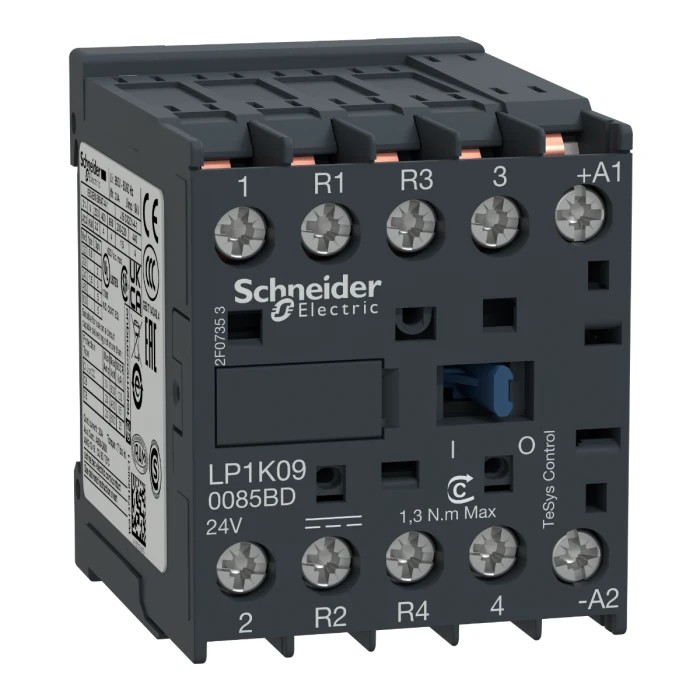

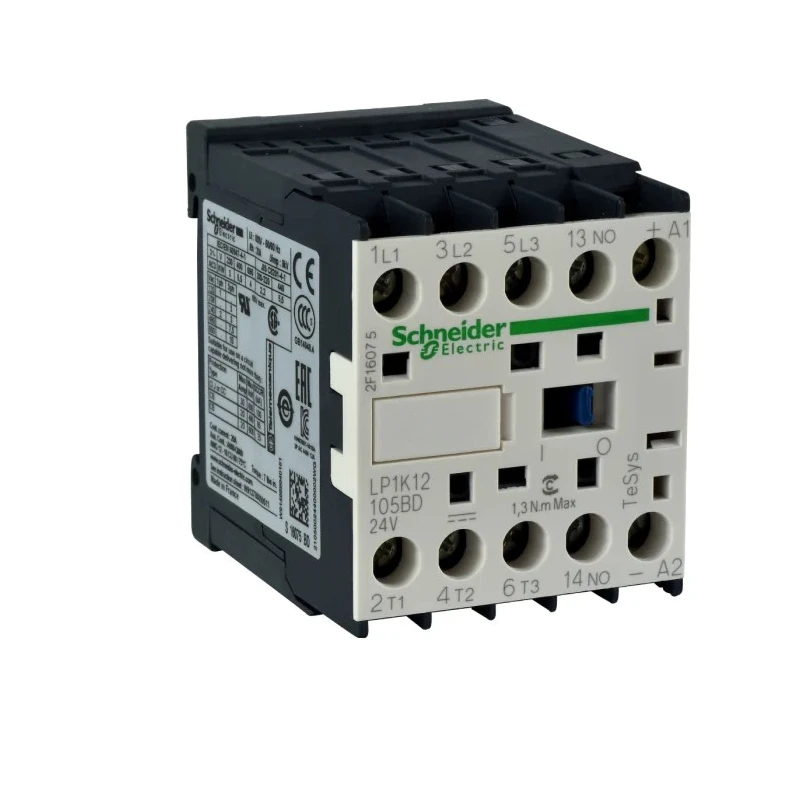

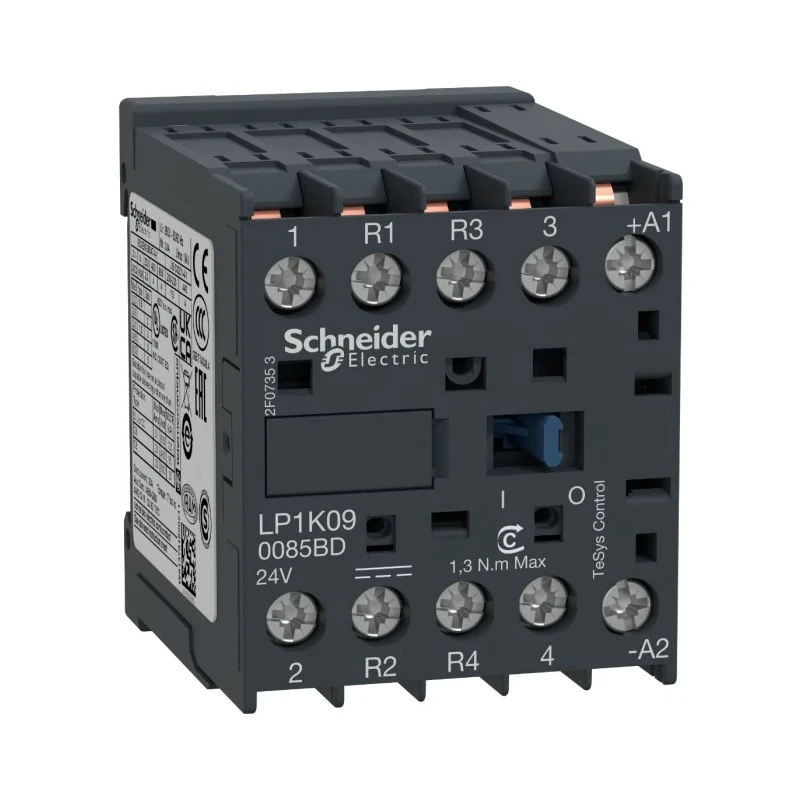

Schneider Electric Miniature 4-Pole Contactor, 230V DC Coil, 20 A 220V AC, 2 NO/2 NC, 690V AC LP1K
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Length | 58mm |
| Model | LP1K |
| Depth | 57mm |
| Width | 45mm |
| Series | LP1K |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder Pin |
| Number of Poles | 4 |
| Contact Voltage | 690V ac |
| Coil Voltage | 230V dc |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 20A |
| Control Circuit Voltage Uc | 220V |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
Key Features
- The contactor offers a compact 4-pole design for effective circuit switching.
- Coil voltage is rated at 230V DC for reliable operation.
- Contact voltage is supported up to 690V AC with 20 A current rating.
- Includes solder pin terminals with IP20 finger-safe protection.
- Designed for use in industrial automation and control gear.
- Temperature operating range from -25 to 50 degrees Celsius ensures durability.
- Can be mounted on panels or DIN rails for flexible installation.
- The device complies with multiple international standards ensuring safety and quality.
Product Description
Schneider Electric LP1K model miniature contactor is a 4-pole device with a 230V DC coil designed for industrial automation and control gear applications. It offers a robust 20 A full load contact current at 690V AC, suitable for general switching in electrical distribution systems. This contactor includes 2 normally open (NO) and 2 normally closed (NC) contacts, providing flexible control options.
The LP1K series is optimized for quiet operation and reliable performance in environments sensitive to electrical noise. The coil incorporates a rectifier to facilitate DC operation, making it suitable for use in applications exposed to high interference mains supplies. Installation is made convenient through panel mounting or DIN rail options with screw connections and IP20 finger-safe terminal protection.
The device operates safely within a temperature range of -25°C to 50°C and conforms to numerous international safety and performance standards including JIS C8201-4-1, CE, CSA, GB/T 14048.4, CCC, EN/IEC 60947-4-1, UL, UKCA, EAC, UL 60947-4-1, and CB scheme certifications, ensuring wide acceptance in global markets. It also supports high fault short circuit current ratings that provide installation flexibility.
Schneider Electric's Better World environmental initiative is reflected in the LP1K series with design for disassembly, helping reduce environmental impact and improving sustainability. Auxiliary contacts built-in provide additional switching functions for complex control strategies.
Typical uses include industrial motor control, automation systems, HVAC units, and process control in manufacturing plants. The compact design facilitates space-saving installations in control panels and switchboards. This model is an ideal choice for professionals seeking reliable and standards-compliant contactors for demanding industrial environments.
The Contactor supports AC1 and AC3 utilization categories suitable for resistive loads and squirrel cage motor control. It is rated for AC4 applications up to 440V AC, enabling use in high-demand motor switching scenarios.
The uniform physical size allows easy replacement and panel footprint standardization across the LP1K range. Easily installable accessories and instantaneous auxiliary contacts enhance operational flexibility. Screw connections are clearly marked for North American and international standards, simplifying wiring.
Explore more Schneider Electric automation and control gear products at EnvMart for quality and innovation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this miniature contactor is 20 A at 690V AC.
The coil voltage for this model is rated at 230V DC.
It operates safely within a temperature range of -25°C to 50°C.
This model features a 4-pole design.
It includes 2 normally open (NO) and 2 normally closed (NC) contacts.
It is equipped with solder pin terminals that have IP20 finger-safe protection.
Yes, it can be mounted on panels or DIN rails for flexible installation.
The dimensions are 58mm in length, 57mm in depth, and 45mm in width.
It complies with multiple international standards including JIS C8201-4-1, CE, CSA, and UL, among others.
Typical applications include industrial motor control, automation systems, HVAC units, and process control in manufacturing plants.
The maximum contact voltage supported is 690V AC.
Yes, it supports AC1 and AC3 utilization categories suitable for resistive loads and squirrel cage motor control.
