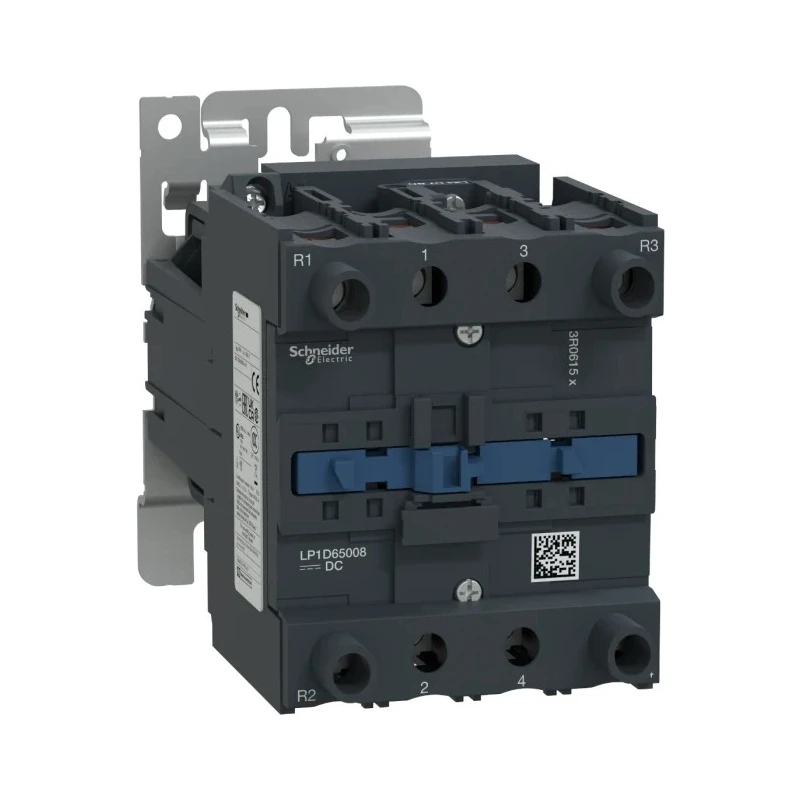

Schneider Electric LP1D Contactor, 24V DC Coil, 4-Pole, 80A, 2 NO/2 NC, 690V AC/DC LP1D65008BD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 127mm |
| Model | LP1D65008BD |
| Depth | 125mm |
| Width | 85mm |
| Mount Type | DIN Rail |
| Series | LP1D |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -60°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 24V dc |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 80A |
| Number of Auxiliary Contacts | 4 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 80A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for motor control and resistive loads with high reliability.
- Equipped with a 24V DC coil and 4-pole configuration.
- Features 2 normally open and 2 normally closed contacts for versatile control.
- Compact design with dimensions 127mm length, 85mm width, and 125mm depth.
- Mounts easily on DIN rail with IP20 finger-safe screw terminals.
- Operating temperature range from -60°C to 80°C for wide application conditions.
- Complies with UL and CSA standards ensuring safety and quality.
- Includes 4 auxiliary contacts configured as 2 NO and 2 NC for additional control functions.
Product Description
Schneider Electric LP1D65008BD Contactor is a high-quality motor control device featuring a 24V DC coil and 4 poles capable of handling 80A current at 690V AC/DC. It is engineered for demanding industrial control systems, combining robust mechanical and electrical life for reliable operation.
The contactor is designed to manage motor control and resistive load applications efficiently, with 2 normally open and 2 normally closed contacts providing flexible circuit configurations. It supports DIN rail mounting with a compact form factor of 127mm length, 85mm width, and 125mm depth, saving panel space without compromising performance.
Operational temperature ranges from -60°C to 80°C, making it suitable for a wide range of environments. Screw-type terminals feature IP20 finger-safe protection, and the unit meets UL and CSA safety standards, ensuring compliance with international regulatory requirements.
The product also includes 4 auxiliary contacts configured as 2 NO and 2 NC for integration of additional control or signaling functions. Schneider Electric's TeSys D range emphasizes energy efficiency and sustainability, with this model marked as a 'Better World Product' designed for easy disassembly.
Applications include industrial automation, motor starters, HVAC systems, manufacturing control panels, and electrical distribution systems. Its robust performance and compliance make it ideal for manufacturing, industrial, and commercial installations requiring reliable contactor solutions.
Designed for motor control and resistive loads with high reliability. Equipped with a 24V DC coil and 4-pole configuration. Features 2 normally open and 2 normally closed contacts for versatile control. Compact design with dimensions 127mm length, 85mm width, and 125mm depth.
Mounts easily on DIN rail with IP20 finger-safe screw terminals. Operating temperature range from -60°C to 80°C for wide application conditions. Complies with UL and CSA standards ensuring safety and quality. Includes 4 auxiliary contacts configured as 2 NO and 2 NC for additional control functions.
Designed for disassembly contributing to sustainability and environmental responsibility. Suitable for industrial, automation, and electrical control system use cases. Explore more Schneider Electric control gear and Contactors on EnvMart to improve your automation installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LP1D65008BD contactor has a coil voltage of 24V DC.
This model can handle a maximum current of 80A.
It operates within a temperature range of -60°C to 80°C.
The contactor features a 4-pole configuration.
It is designed for motor control and resistive load applications.
The dimensions are 127mm in length, 85mm in width, and 125mm in depth.
It features screw-type terminals with IP20 finger-safe protection.
It includes 4 auxiliary contacts configured as 2 normally open and 2 normally closed.
Yes, it complies with UL and CSA safety standards.
It mounts easily on DIN rail.
The contact voltage rating is 690V AC/DC.
It is suitable for industrial automation, motor starters, HVAC systems, and electrical distribution systems.
