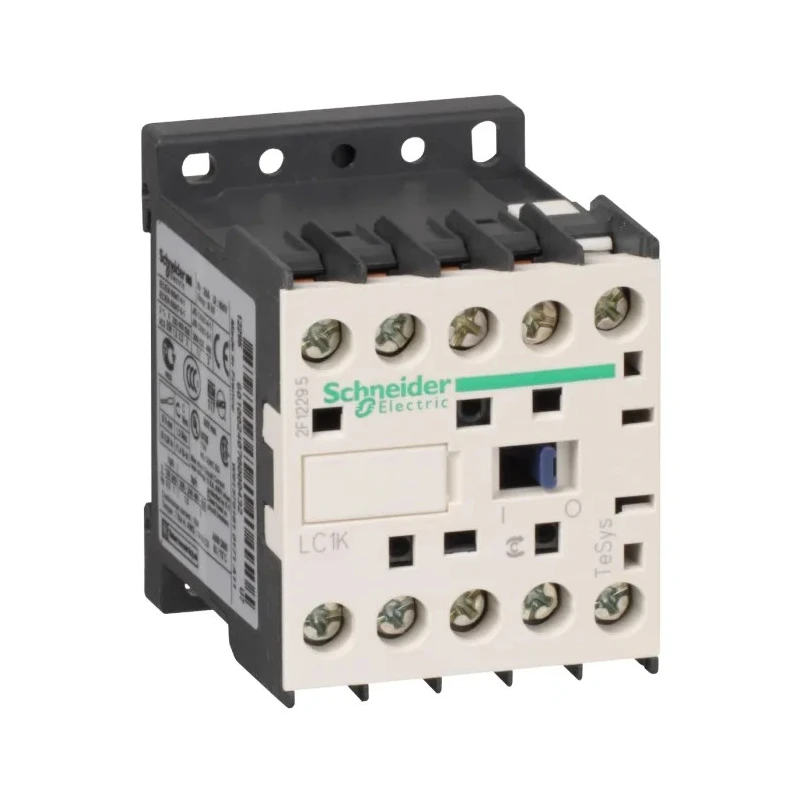

Schneider Electric LC1K Contactor 3-Pole 16 A 7.04 kW 110V AC Coil DIN Rail Mount LC1K1610F7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 58mm |
| Model | LC1K1610F7 |
| Depth | 57mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1K |
| Power Rating | 7.04kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 16A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 16A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3P |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 110V AC coil voltage ensuring efficient energisation.
- Features a 3-pole design supporting high current loads up to 16 A.
- Power rated at 7.04 kW suitable for motor control applications.
- Mount type is DIN Rail facilitating easy installation.
- Includes one auxiliary contact configured as 1 NO for additional circuit control.
- Terminal type is screw ensuring secure and reliable electrical connections.
- Operates reliably between -25°C and 50°C for varied environments.
- Complies with international standards CSA and UL for safety and performance.
Product Description
Schneider Electric LC1K1610F7 Contactor is a high-quality 3-pole electrical contactor designed for motor control applications operating with a 110V AC coil voltage. It supports a contact current up to 16 A and a power rating of 7.04 kW, making it suitable for robust industrial switching tasks. The DIN Rail mount type enables quick and secure installation into control panels.
This contactor includes one auxiliary contact (1 NO) for supplementary switching needs, and utilizes screw terminals for strong electrical connections. It operates efficiently within a temperature range from -25°C to 50°C, ensuring performance in diverse industrial environments.
Built to adhere to CSA and UL standards, the LC1K1610F7 contactor offers reliable safety and operational approvals. The physical dimensions of 58 mm length, 45 mm width, and 57 mm depth ensure a compact form factor suitable for various electrical cabinets.
Schneider Electric's Better World program underpins this product's design for disassembly, promoting sustainability and ease of maintenance. This contactor is ideal for use in industrial automation, manufacturing, HVAC systems, water treatment controls, and other commercial electrical applications requiring durable and efficient power switching.
Equipped with a 110V AC coil voltage ensuring efficient energisation. Features a 3-pole design supporting high current loads up to 16 A. Power rated at 7.04 kW suitable for motor control applications. Mount type is DIN Rail facilitating easy installation.
Includes one auxiliary contact configured as 1 NO for additional circuit control. Terminal type is screw ensuring secure and reliable electrical connections. Operates reliably between -25°C and 50°C for varied environments.
Complies with international standards CSA and UL for safety and performance. Dimensions are compact with length 58 mm, width 45 mm, and depth 57 mm. Designed for disassembly as part of Better World sustainability initiatives.
Explore our extensive selection of Contactors and automation equipment on EnvMart for reliable industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1K1610F7 contactor has a power rating of 7.04 kW, making it suitable for motor control applications.
This model can handle a maximum contact current of 16 A.
The coil voltage for this contactor is 110V AC, ensuring efficient energization.
The dimensions of this contactor are 58 mm in length, 45 mm in width, and 57 mm in depth.
This contactor features a 3-pole design, supporting high current loads.
The contactor is designed for DIN Rail mounting, facilitating easy installation.
It operates reliably between -25°C and 50°C, suitable for varied environments.
Yes, it includes one auxiliary contact configured as 1 NO for additional circuit control.
This contactor complies with international standards CSA and UL for safety and performance.
It utilizes screw terminals, ensuring secure and reliable electrical connections.
This model is suitable for motor control applications, including industrial automation and HVAC systems.
The normal state configuration for this contactor is 3 NO (Normally Open).
