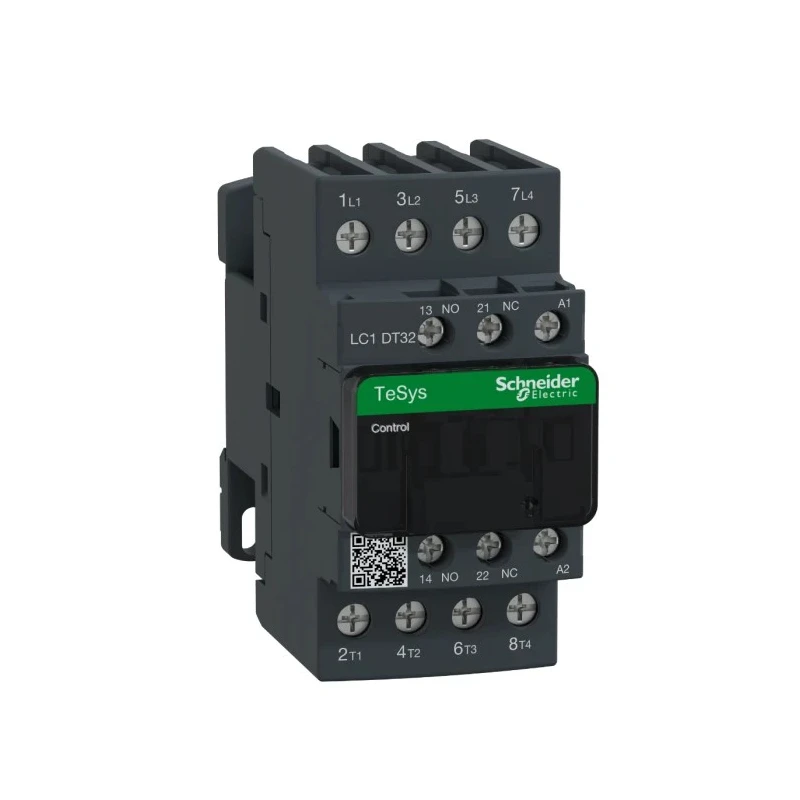

Schneider Electric LC1D Contactor 4-Pole, 32A, 220V AC Coil, 4 NO, 690V AC/DC LC1DT32M7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 91mm |
| Model | LC1DT32M7 |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 220V ac |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 220V ac |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- The contactor features four normally open (NO) contacts for reliable electrical switching.
- Equipped with a 220V AC coil voltage for flexible control circuit compatibility.
- Designed for DIN Rail mounting with screw terminal connections ensuring easy installation.
- Capable of handling contact voltage up to 690V AC/DC for industrial-grade applications.
- Operates efficiently within a wide temperature range from -40°C to 60°C.
- Includes two auxiliary contacts configured as one normally open (NO) contact.
- Complies with UL and CSA standards for safety and quality assurance.
- Constructed with IP20 finger-safe terminals, compatible with North American and International terminal markings.
Product Description
Schneider Electric LC1DT32M7 is a 4-pole contactor designed for motor control and resistive load switching, featuring a 220V AC coil and a rated contact current of 32A. This contactor offers high reliability with long mechanical and electrical life, suitable for integration in various industrial control systems. With a contact voltage rating of 690V AC/DC, it is suitable for a wide range of electrical applications.
The LC1D series contactors by Schneider Electric support easy installation on DIN rails and panel mounting using screws. The screw terminal connections are IP20 finger-safe, marked for both North American and International standards, ensuring user safety and compliance. The robust construction provides excellent resistance against shock and vibration, extending operational durability in demanding environments.
This contactor includes two auxiliary contacts configured as one normally open (NO) contact, enhancing control flexibility. It operates reliably within a temperature range from -40°C up to 60°C, making it adaptable for various operating conditions.
Typical applications include motor starters, resistive loads, and automation systems in industrial, manufacturing, construction, and HVAC settings. The device conforms to UL and CSA safety standards, ensuring dependable and safe operation.
The LC1DT32M7 represents a Better World product by Schneider Electric, designed for disassembly to support sustainability in electrical component lifecycle management. The Contactor features four normally open (NO) contacts for reliable electrical switching.
Equipped with a 220V AC coil voltage for flexible control circuit compatibility. Designed for DIN Rail mounting with screw terminal connections ensuring easy installation. Capable of handling contact voltage up to 690V AC/DC for industrial-grade applications.
Operates efficiently within a wide temperature range from -40°C to 60°C. Includes two auxiliary contacts configured as one normally open (NO) contact. Complies with UL and CSA standards for safety and quality assurance. Constructed with IP20 finger-safe terminals, compatible with North American and International terminal markings.
Provides high reliability, shock and vibration resistance for durable performance. Supports application categories AC-1 and AC-3 suitable for resistive loads and motor control scenarios. Explore more Schneider Electric Automation & Control Gear products on EnvMart for advanced industrial control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can handle a maximum contact voltage of 690V AC/DC, making it suitable for various industrial applications.
This model has a rated contact current of 32A, allowing it to manage substantial electrical loads effectively.
The coil voltage for this contactor is 220V AC, providing compatibility with various control circuits.
The dimensions of this contactor are 91mm in length, 99mm in depth, and 45mm in width.
It features four poles, configured as four normally open (NO) contacts for reliable electrical switching.
It is designed for DIN Rail mounting, which facilitates easy installation in various setups.
It operates efficiently within a temperature range from -40°C to 60°C, suitable for diverse environments.
This model includes two auxiliary contacts configured as one normally open (NO) contact, enhancing control flexibility.
It complies with UL and CSA standards, ensuring safety and quality assurance for users.
It is suitable for motor control and resistive loads, making it versatile for various industrial applications.
It features IP20 finger-safe terminals with both North American and International terminal markings for user safety.
The primary function of this contactor is for motor control and switching of resistive loads in industrial settings.
