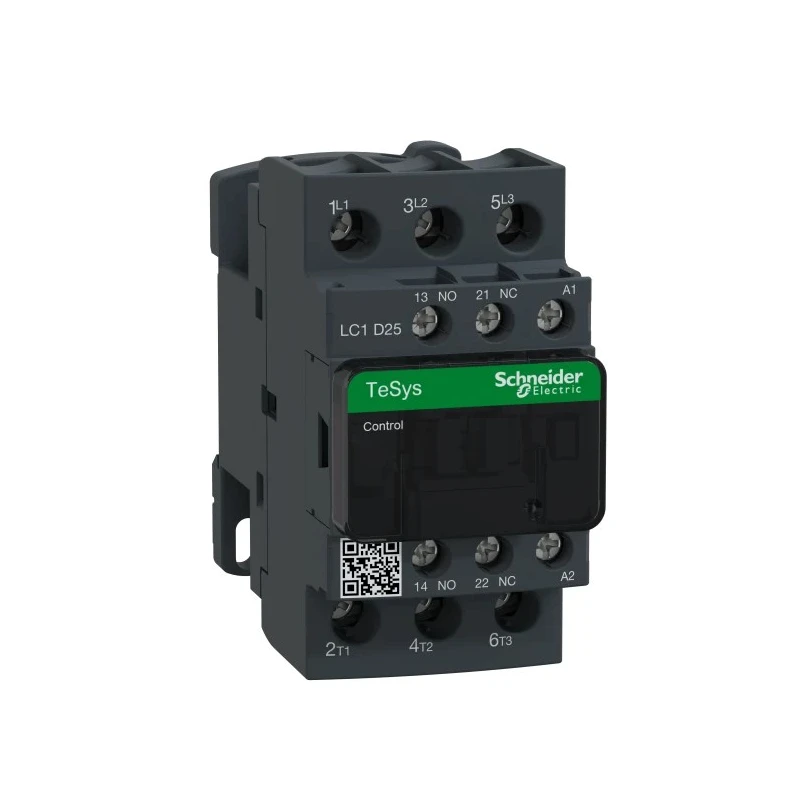

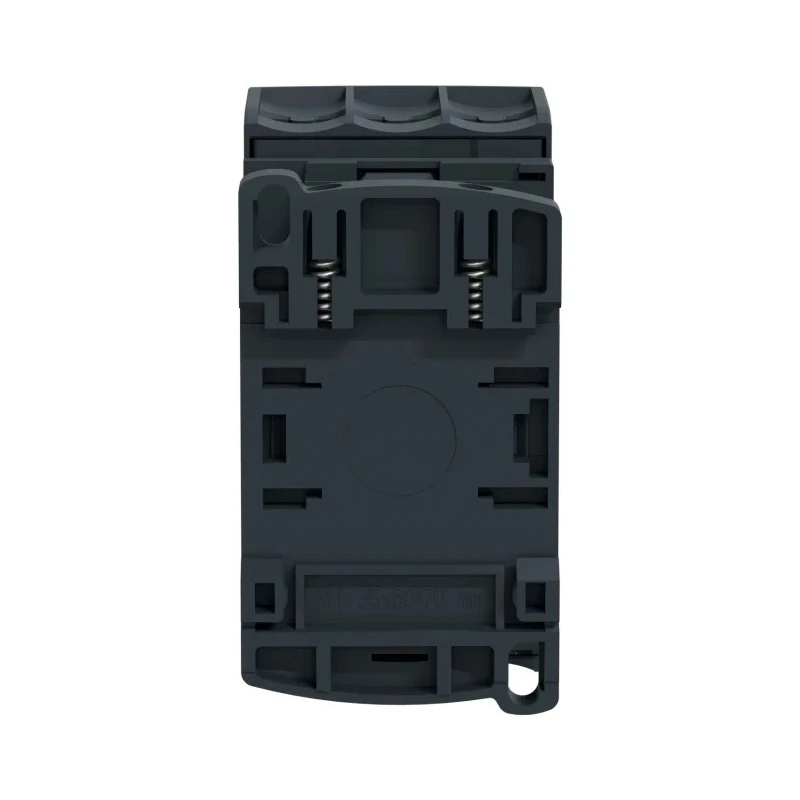

Schneider Electric LC1D Contactor, 25A 3-Pole, 3 HP 120V Motor Control, 110V AC Coil LC1D25G7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 85mm |
| Model | LC1D25G7 |
| Depth | 92mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 3HP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 120V |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for motor control and resistive load applications with reliable switching performance.
- Equipped with 3 normally open (NO) main contacts and 2 auxiliary contacts (1 NO, 1 NC) for enhanced functionality.
- Mountable on DIN rail or panel, facilitating flexible installation options.
- Screw-type terminal connections with IP20 finger-safe protection including North American and international markings.
- Robust design supports operational temperatures from -5°C to 60°C ensuring durability in varied environments.
- Suitable for AC-1 and AC-3 utilization categories, compliant with UL and CSA standards.
- Includes built-in bidirectional peak limiting diode suppressor protecting the coil circuit.
- Designed for easy accessory installation and configured with screw terminals for secure connections.
Product Description
Schneider Electric LC1D25G7 is a high-performance contactor designed for motor control and resistive load applications. Featuring a 110V AC coil and a 25A contact current rating, this 3-pole contactor efficiently manages 3 horsepower loads at 120V, making it suitable for diverse industrial automation and control systems.
This contactor supports 3 normally open contacts with an additional 2 auxiliary contacts configured as 1 NO and 1 NC, enabling versatile switching scenarios. Its DIN rail and panel mount compatibility along with screw terminals provide easy and reliable installation. The IP20 finger-safe terminals have markings suitable for North American and international standards ensuring safety compliance.
Operating temperature range from -5°C up to 60°C ensures performance stability in various environmental conditions. The device complies with UL and CSA standards, underscoring its quality and safety credentials. The built-in bidirectional peak limiting diode protects the coil from voltage spikes, enhancing durability and maintenance intervals.
The compact size with 85mm length, 45mm width, and 92mm depth allows efficient panel space utilization. The contactor’s design accommodates AC-1 category applications like resistive load heating and distribution systems, as well as AC-3 category for squirrel cage motors used in lifts, conveyors, pumps, and air conditioning units.
Accessories available include auxiliary contact blocks with serrated wiping action, dust-tight front mount auxiliary contacts, pneumatic time delay blocks, transient voltage surge suppressors, and electronic timers, enabling customized configurations to suit varied industrial requirements.
Schneider Electric’s TeSys D contactors combine long mechanical and electrical life with straightforward integration into control systems. Designed for disassembly, the product supports sustainable practices and ease of maintenance.
Set contains 1 Schneider Electric LC1D25G7 Contactor with 110V AC Coil, 3-Pole, 25A, 3 HP 120V rating, and 3 NO contacts. Explore more Schneider Electric products and Contactors at EnvMart for reliable industrial automation solutions.
Designed for motor control and resistive load applications. Built-in auxiliary contacts enhance switching capabilities. Flexible installation with DIN rail and panel mounts. Complies with UL and CSA safety standards. Operates within a wide temperature range (-5°C to 60°C).
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schneider Electric LC1D25G7 has a contact current rating of 25A.
This contactor operates with a coil voltage of 110V AC.
It features a 3-pole configuration.
The maximum operating temperature is 60°C.
It uses screw-type terminal connections with IP20 finger-safe protection.
It is designed for motor control and resistive load applications, including AC-1 and AC-3 categories.
The dimensions are 85mm in length, 45mm in width, and 92mm in depth.
This model includes 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
The contact voltage rating is 690V AC/DC.
It can be mounted on DIN rail or panel, offering flexible installation options.
It complies with UL and CSA standards, ensuring safety and quality.
The operational temperature range is from -5°C to 60°C.
