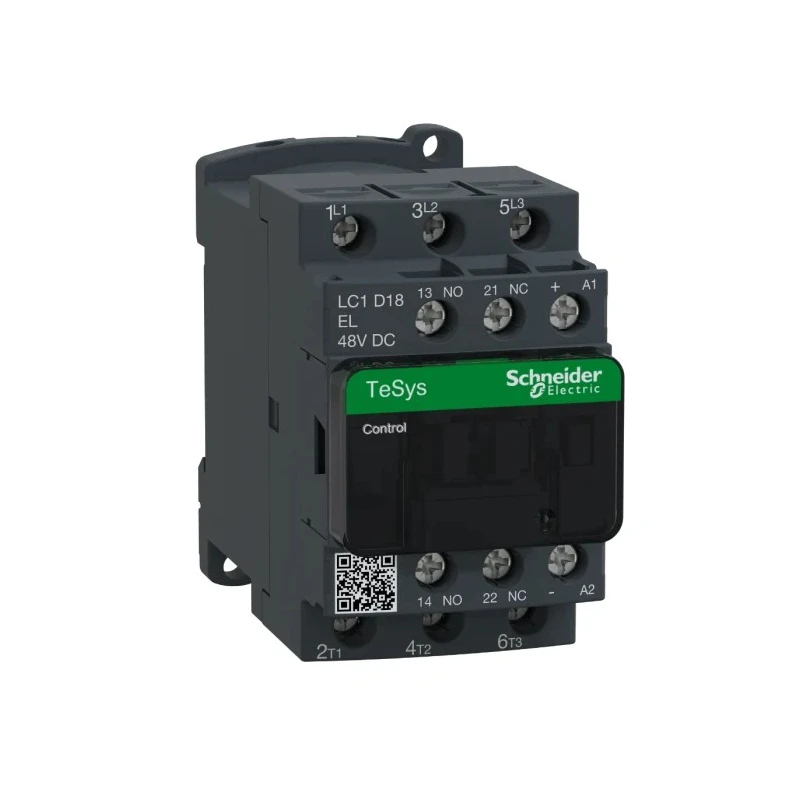

Schneider Electric LC1D Contactor, 48V DC Coil, 3-Pole, 18A, 1 HP, 3 NO, 690V AC/DC LC1D18EL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D18EL |
| Depth | 95mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 1HP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 48V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 48V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Operates at a coil voltage of 48V DC for reliable performance.
- Equipped with 3 normally open (NO) poles for control of AC/DC contact voltage up to 690V.
- Rated for an 18A operational current and 1 HP power rating at 48V DC.
- Includes 2 auxiliary contacts configured as 1 NO and 1 NC for additional control functions.
- Designed for DIN rail mounting with screw terminal connections.
- Operating temperature range from -5°C to 60°C suits diverse industrial environments.
- Compliance with CSA and UL standards ensures safety and quality.
- Built with a 3-pole, 3 NO configuration for efficient motor and load switching.
Product Description
Schneider Electric LC1D18EL is a robust 3-pole contactor designed for motor control and resistive load applications. Operating with a 48V DC coil, it supports a contact voltage up to 690V AC/DC and an operational current of 18A, making it suitable for commercial and industrial electrical automation systems.
This contactor features 3 normally open poles and 2 auxiliary contacts (1 NO and 1 NC) providing versatile switching configurations. Its DIN rail mounting design and screw terminal connections facilitate easy installation in control panels.
Environmental operating conditions span from -5°C up to 60°C, ensuring reliable functioning in varied industrial environments. The device complies with CSA and UL standards, guaranteeing high safety and quality manufacturing benchmarks.
Compact in size with dimensions of 77mm length, 45mm width, and 95mm depth, the LC1D18EL contactor supports efficient space management in automation equipment.
The contactor is part of Schneider Electric’s LC1D series renowned for combining a long electrical and mechanical lifespan with high reliability. It includes built-in coil suppression to reduce electrical noise and extend service life. Typical applications include motor control, resistive loads, lifts, escalators, conveyors, and HVAC systems.
Operates at 48V DC coil voltage for stable control. Consists of 3 NO poles for primary switching function. Includes 1 NO plus 1 NC auxiliary contacts for auxiliary control. Mounts on DIN rails with screw terminal fittings for installation ease.
Supports contact voltage up to 690V AC/DC with 18A current rating. Designed to operate within -5°C to 60°C ambient temperature range. Certified to CSA and UL safety and quality standards. Compact dimensions suitable for diverse electrical control setups.
Ideal for motor control, resistive loads, and industrial automation. Enhanced durability with built-in coil suppression features. Explore more Schneider Electric Contactors in the Automation & Control Gear category at EnvMart for industrial quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of the LC1D18EL contactor is 48V DC.
This contactor supports a maximum contact voltage of 690V AC/DC.
The operational current rating of this model is 18A.
The LC1D18EL contactor has 3 poles, all configured as normally open (NO).
The dimensions of the LC1D18EL are 77mm in length, 45mm in width, and 95mm in depth.
This model is designed for DIN rail mounting with screw terminal connections.
The operating temperature range for this contactor is from -5°C to 60°C.
The LC1D18EL includes 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
This contactor complies with CSA and UL standards, ensuring safety and quality.
This contactor is suitable for motor control and resistive load applications, including lifts, escalators, conveyors, and HVAC systems.
The power rating of this model is 1 HP.
The primary function of the LC1D18EL is motor control and switching of resistive loads.
