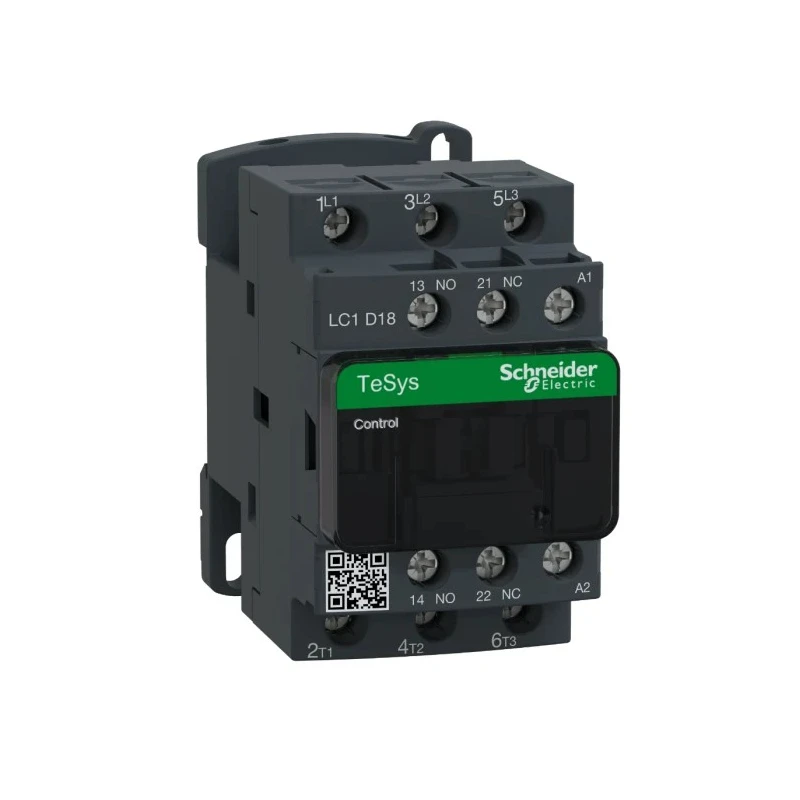

Schneider Electric LC1D Contactor, 120V AC Coil, 3-Pole, 18 A, 1 HP 230V, 3 NO, 690V AC/DC LC1D18G7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 77mm |
| Model | LC1D18G7 |
| Depth | 86mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 1HP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 120V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 250A |
| Control Circuit Voltage Uc | 230V |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with 3 normally open (NO) contacts for reliable switching.
- Supports contact voltage up to 690V AC/DC for versatile operation.
- Includes 2 auxiliary contacts configured as 1 NO and 1 NC for added control flexibility.
- Mountable on DIN rails with IP20 finger-safe screw terminals for secure connection.
- Operates reliably between -5°C and 60°C temperature range.
- Designed for motor control applications with operational current of 250A.
- Certified to UL and CSA standards ensuring quality and safety compliance.
Product Description
Schneider Electric LC1D18G7 is a high-performance TeSys D series contactor designed for motor control applications in industrial, commercial, and automation environments. This 3-pole contactor features a 120V AC coil and supports 18 A current with a power rating of 1 HP at 230V, making it ideal for controlling squirrel cage motors and other inductive loads.
The contactor offers reliable switching with three normally open (3 NO) contacts and is capable of handling contact voltages up to 690V AC/DC. It includes 2 auxiliary contacts configured as 1 NO and 1 NC, enabling flexible integration into complex control circuits. Its DIN rail mounting and IP20 finger-safe screw terminals with dual North American and international terminal markings ensure easy and safe installation in electrical control panels.
Engineered for robust operational use, the LC1D18G7 can operate efficiently in ambient temperatures ranging from -5°C to 60°C and supports an operational current of 250 A. The device measures 77mm in length, 45mm in width, and 86mm in depth, allowing compact panel design without sacrificing performance.
Certified to UL and CSA standards, this contactor ensures compliance with global quality and safety benchmarks. It features a bidirectional peak limiting diode suppressor to protect the coil and utilizes linear translation movement technology for double pole breaking, enhancing safety and reliability.
The contactor is suitable for use in a wide range of industrial applications including motor starters for escalators, conveyors, pumps, compressors, mixers, and air conditioning systems. Its flexible control circuit and easily installed accessories support diverse customer requirements and system integrations.
Equipped with 3 normally open (NO) contacts for reliable switching. Supports contact voltage up to 690V AC/DC enabling broad application. Contains 2 auxiliary contacts with 1 NO and 1 NC configuration. Mount type: DIN Rail with IP20 finger-safe screw connections.
Operational temperature from -5°C to 60°C ensures environmental flexibility. Motor control rated with 1 HP power at 230V and 18 A contact current. Dimensions: 77mm length, 45mm width, and 86mm depth for efficient panel integration.
UL and CSA certification for worldwide compliance and reliability.
Choose Schneider Electric’s LC1D18G7 Contactor for dependable motor control, energy efficiency, and ease of installation in automation and control gear applications. Explore the broad range of related electrical control components and accessories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D18G7 contactor has a power rating of 1 HP at 230V.
It supports contact voltages up to 690V AC/DC.
The operational temperature range is from -5°C to 60°C.
This contactor features 3 poles.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
The contactor measures 77mm in length, 45mm in width, and 86mm in depth.
It features IP20 finger-safe screw terminals with both North American and international terminal markings.
The rated contact current is 18 A.
It is certified to UL and CSA standards, ensuring quality and safety compliance.
It is designed for motor control applications, suitable for controlling squirrel cage motors and other inductive loads.
This model is mountable on DIN rails, allowing for easy installation in electrical control panels.
The operational current rating is 250 A.
