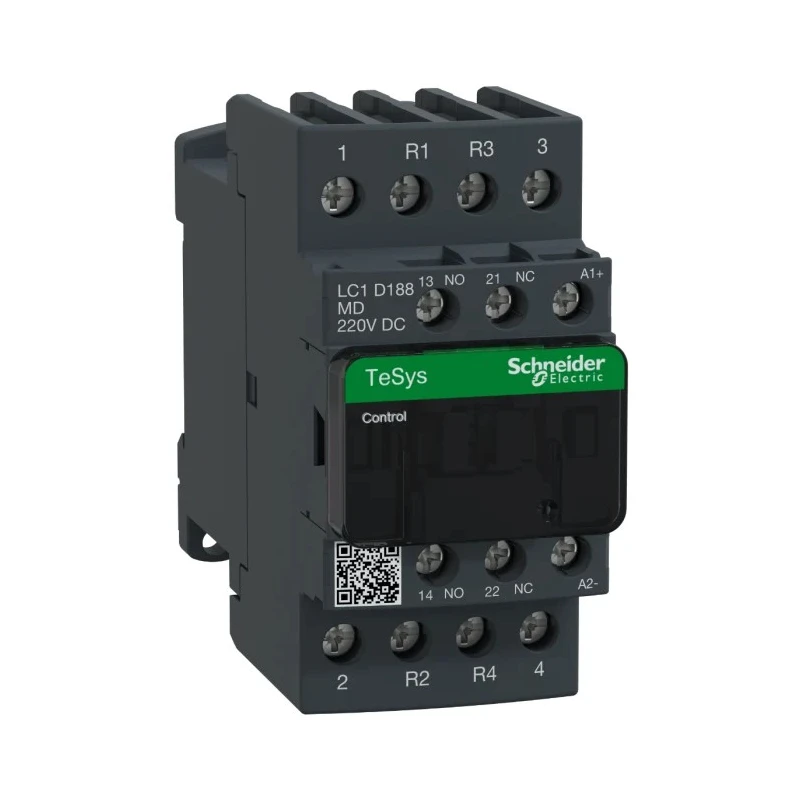

Schneider Electric LC1D TeSys D Contactor, 230V DC Coil, 4-Pole, 32A Operational Current, 2 NO/2 NC, 690V AC/DC LC1D188MD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 91mm |
| Model | LC1D188MD |
| Depth | 107mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 230V dc |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 220V |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with 2 normally open (NO) and 2 normally closed (NC) contacts for versatile switching.
- Operational current rated at 32 A with a contact voltage of up to 690 V AC/DC.
- Mounts easily on DIN rails or panels with screw connections.
- Suitable for control circuits requiring 220 V coil control voltage.
- Features IP20 finger-safe terminals with international and North American markings.
- Operates in temperature ranges from -5°C to 60°C for reliable industrial performance.
- Designed with linear translation movement for double break pole operation.
- Complies with UL and CSA safety standards ensuring industrial quality.
Product Description
Schneider Electric LC1D188MD TeSys D Contactor features a 230V DC coil and a robust 4-pole contactor design capable of handling up to 32 A operational current with 690V AC/DC contact voltage. This contactor is engineered for motor control applications and resistive loads, seamlessly integrating into automation control systems.
Constructed with screw terminal connections that are IP20 finger-safe, the device supports both North American and international terminal markings, ensuring compliance and ease of installation. It can be mounted on standard DIN rails or panels via screws, providing versatile mounting options.
The control coil voltage of 220V supports reliable operation in control circuits, while the operational temperature range from -5°C to 60°C allows stable performance in various industrial environments. The Contactor includes 2 auxiliary contacts (1 NO/1 NC), which add control capabilities.
The LC1D188MD belongs to the Schneider Electric TeSys D series, recognized for long mechanical and electrical life, offering high reliability and excellent quality. Its design includes a linear translation movement providing double break poles to ensure higher contact performance and durability.
Typical applications include controlling resistive loads and motors in industrial settings such as manufacturing plants, HVAC systems, pumps, compressors, and other automated machinery. The device complies with UL and CSA standards, guaranteeing safety and quality compliance.
230V DC coil voltage for energy-efficient operation. 4 Poles with 2 NO and 2 NC contacts for flexible control. Rated operational current of 32A at 690V AC/DC for robust performance. DIN Rail mountable with secure screw terminals.
IP20 finger-safe terminals enhance operator safety. Wide operating temperature from -5°C to 60°C. Auxiliary contacts configured as 1 NO and 1 NC. Double break pole design for improved reliability. UL and CSA approved for international standards compliance.
Designed for disassembly to support sustainability. Explore more Schneider Electric automation and control products at EnvMart for industrial and commercial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D188MD contactor has an operational current rating of 32 A.
It can handle contact voltages of up to 690 V AC/DC.
This model operates with a coil voltage of 230 V DC.
The LC1D188MD operates effectively in temperatures ranging from -5°C to 60°C.
It can be mounted on standard DIN rails or panels using screw connections.
The contactor features a configuration of 2 normally open (NO) and 2 normally closed (NC) contacts.
The dimensions are 91 mm in length, 107 mm in depth, and 45 mm in width.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
It complies with UL and CSA safety standards.
This contactor is designed for motor control applications and resistive loads.
It features IP20 finger-safe terminals with both North American and international markings.
The LC1D188MD is designed for disassembly, supporting sustainability efforts.
