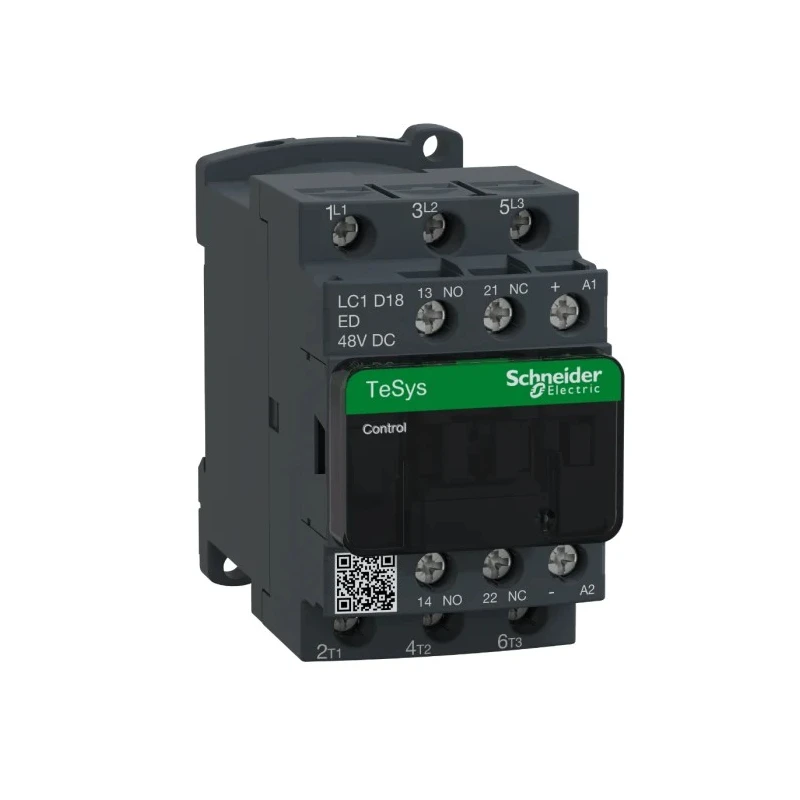

Schneider Electric LC1D Contactor, 48V DC Coil, 3-Pole, 18 A, 1 HP, 3 NO, 690V AC/DC LC1D18ED
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D18ED |
| Depth | 95mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 1HP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 48V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 48V dc |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3 |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Operates on a 48V DC coil voltage ensuring compatibility with DC control circuits.
- Features 3 poles with 3 normally open (NO) contacts for effective load management.
- Designed for motor control and resistive load applications providing versatility.
- Includes 2 auxiliary contacts with a configuration of 1 NO and 1 NC to support control functions.
- Compact dimensions with 77mm length, 45mm width, and 95mm depth for easy DIN rail mounting.
- Power rated at 1 HP and contact current at 18 A suitable for various industrial equipments.
- Terminal type is screw, providing secure and reliable electrical connections.
- Operational temperature range from -5°C to 60°C suitable for diverse environments.
Product Description
Schneider Electric LC1D18ED is a robust and reliable 3-pole contactor designed for industrial and automation applications requiring motor control and resistive load switching. It operates on a 48V DC coil voltage making it compatible with DC control circuits while managing contact currents up to 18 A with a power rating of 1 HP.
The contactor features 3 normally open (NO) main contacts along with 2 auxiliary contacts (1 NO + 1 NC) facilitating additional control and monitoring functions. Its screw terminal type ensures secure connections, and it is designed for easy DIN rail mounting, offering compact dimensions of 77mm length, 45mm width, and 95mm depth to fit in varied electrical panels.
Operating safely over a temperature range from -5°C to 60°C, this contactor complies with UL and CSA standards, guaranteeing quality and safety in demanding industrial environments. The device is engineered for disassembly, supporting sustainability objectives and ease of maintenance.
Typical applications include controlling resistive loads and squirrel cage motors, making it suitable for HVAC, manufacturing, water treatment, and other commercial and industrial uses. With quick installation features and built-in coil suppression, it enhances operational efficiency and longevity.
Operates on a 48V DC coil voltage, compatible with direct current control circuits. 3 poles with 3 normally open contacts for effective load switching. Auxiliary contacts configured as 1 NO and 1 NC support control and feedback functions.
Robust DIN rail mounting type with compact physical dimensions. Rated at 18 A contact current and 1 HP power suitable for motor control. UL and CSA certified ensuring compliance with international safety standards. Supports wide operational temperature from -5°C to 60°C enabling versatile applications.
Designed with built-in coil suppression and quick setup accessories. Constructed for disassembly promoting environmental sustainability.
Schneider Electric LC1D18ED contactor is ideal for electrical automation systems in industrial, manufacturing, HVAC, and water treatment sectors requiring reliable motor control and switching solutions. Explore more in EnvMart's extensive collection of Contactors and automation controls to optimize your industrial installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor is 48V DC, making it compatible with DC control circuits.
The maximum contact current rating for the LC1D18ED is 18 A, suitable for various industrial applications.
This model has compact dimensions of 77mm in length, 45mm in width, and 95mm in depth, allowing for easy DIN rail mounting.
The contactor features 3 poles, each with 3 normally open (NO) contacts for effective load management.
The LC1D18ED uses screw terminals, providing secure and reliable electrical connections.
It operates within a temperature range from -5°C to 60°C, suitable for diverse environments.
This contactor is designed for motor control and resistive load applications, making it suitable for HVAC, manufacturing, and water treatment sectors.
This model is certified by UL and CSA, ensuring compliance with international safety standards.
The LC1D18ED includes 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
The power rating of this contactor is 1 HP, suitable for various industrial equipment.
It is designed for DIN rail mounting, facilitating easy installation in electrical panels.
The contact voltage rating is 690V AC/DC, making it versatile for different applications.
