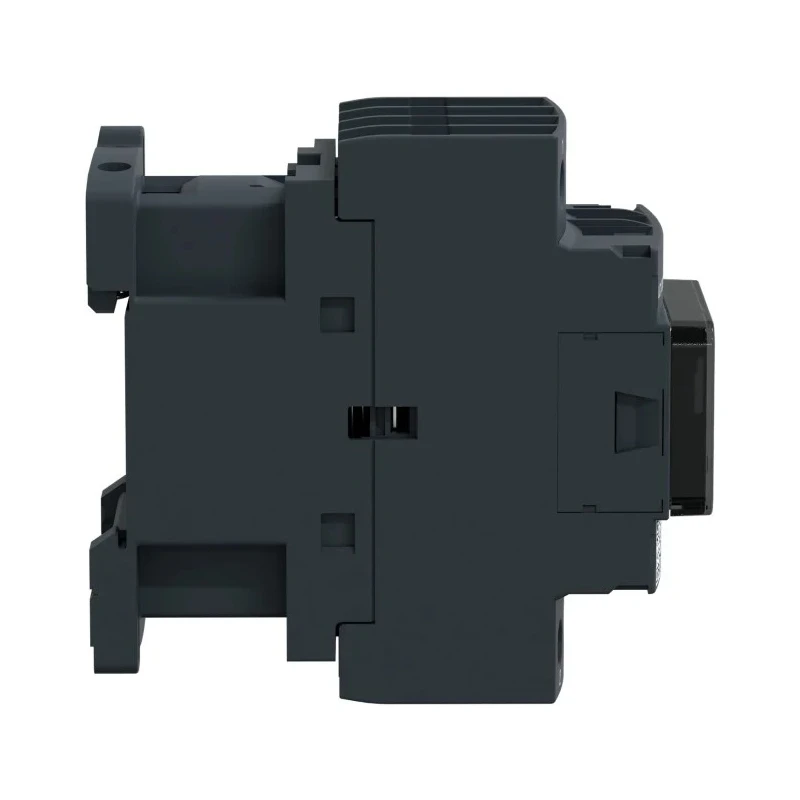

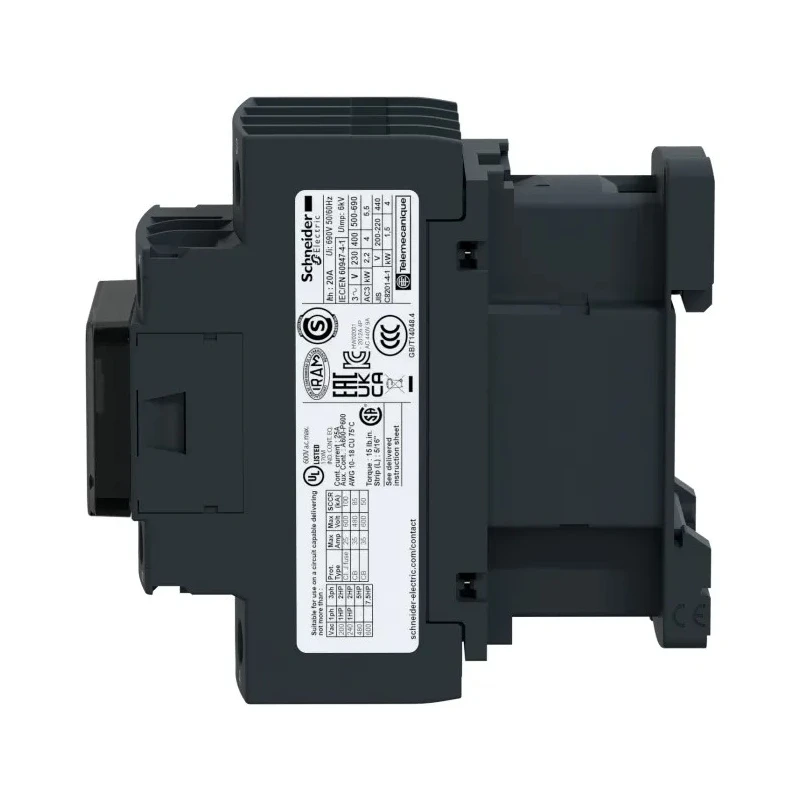

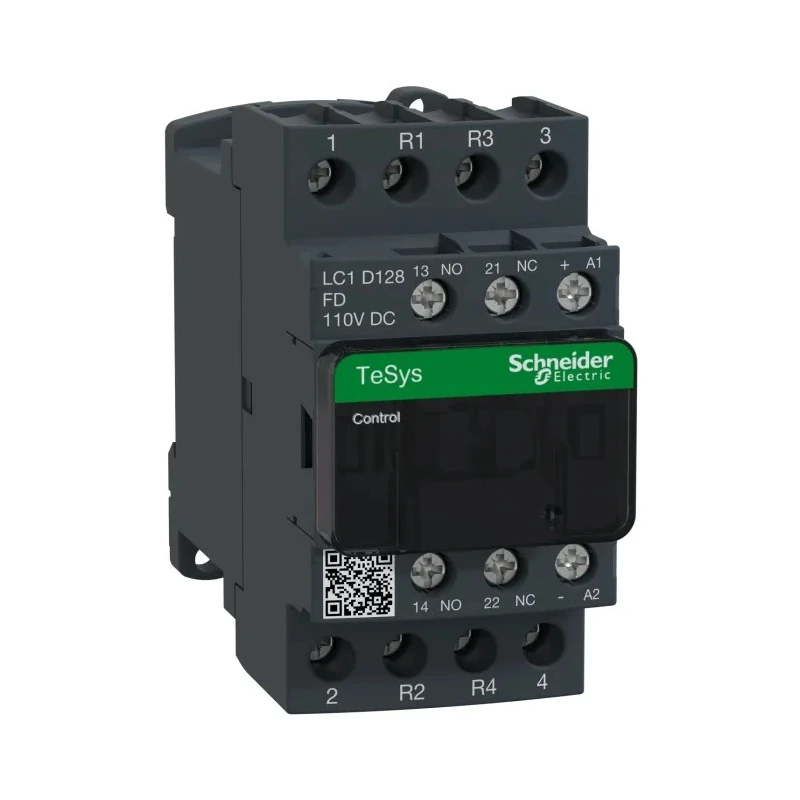

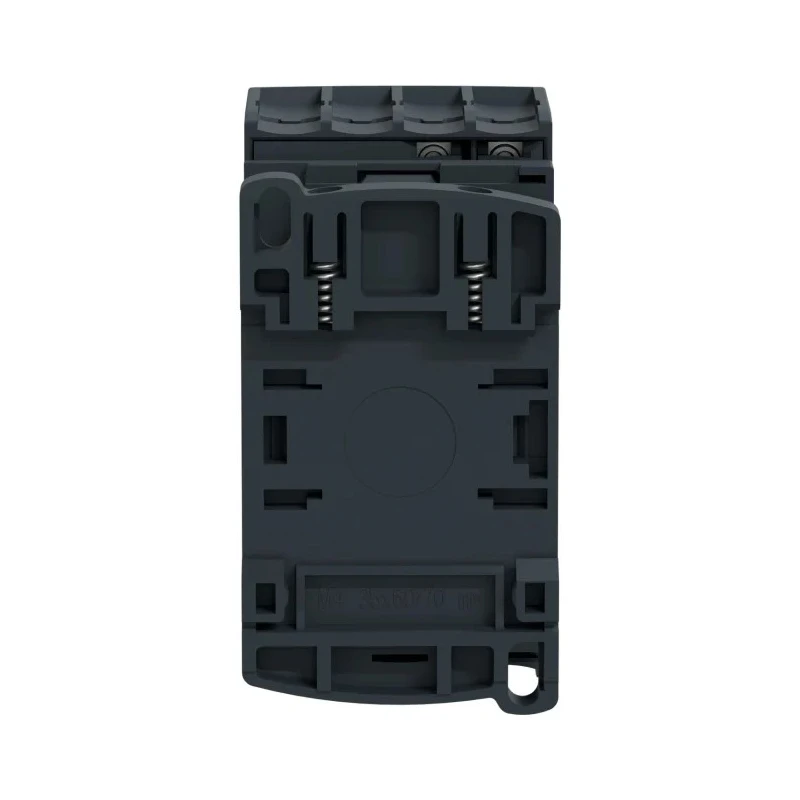

Schneider Electric LC1D Contactor, 110V DC Coil, 4-Pole, 25A Operational Current, 2 NO/2 NC, 690V AC/DC LC1D128FD

Schneider Electric LC1D128FD Contactor is a high-performance 4-pole switching device featuring a 110V DC control coil designed for industrial resistive load applications. With an operational current rating of 25A and contact voltage rating up to 690V AC/DC, this contactor is ideal for automation, electrical panels, and signaling circuits.

The contactor accommodates screw clamp terminals enabling secure connections with conductors from 1 to 4mm², suitable for both flexible and solid wires. The device supports a maximum switching rate of 3600 cycles per hour, ensuring reliable operation under frequent switching demands.

The coil includes integral suppression to reduce voltage spikes, protecting the control circuitry and enhancing longevity. It functions efficiently within ambient temperatures ranging from -40°C to 60°C, making it adaptable to diverse industrial conditions.

The auxiliary contacts provide 1 normally open (NO) and 1 normally closed (NC) mechanically linked contacts, suitable for signaling and control circuit requirements requiring micro-load switching down to 17V and 5mA.

Constructed with a compact design measuring 45mm in width, 85mm in length, and 99mm in depth, the contactor fits easily into control panels or rail mounts. It adheres to EN 60947-4-1 safety and performance standards, ensuring dependable and safe operation.

Applications include resistive heating element switching in industrial processes, machinery control using AC and DC circuits up to 690V, and control panels requiring compact devices integrated with signaling circuits that demand mechanically linked auxiliary contacts.

110V DC coil with integral suppression to minimize coil spikes. Four-pole configuration providing 2 NO and 2 NC contacts for diverse control needs. Rated for 25A operational current suitable for resistive loads at high voltages.

Compact 45mm width facilitating panel or rail mounting in tight spaces. Screw clamp terminals supporting 1 to 4mm² conductors for reliable connections. Wide operating temperature range from -40°C to 60°C for industrial reliability.

3600 cycles/hour switching capability for frequent industrial use. Includes 1 NO and 1 NC mechanically linked auxiliary contacts for signaling circuits. Complies with EN 60947-4-1 standard ensuring performance and safety.
