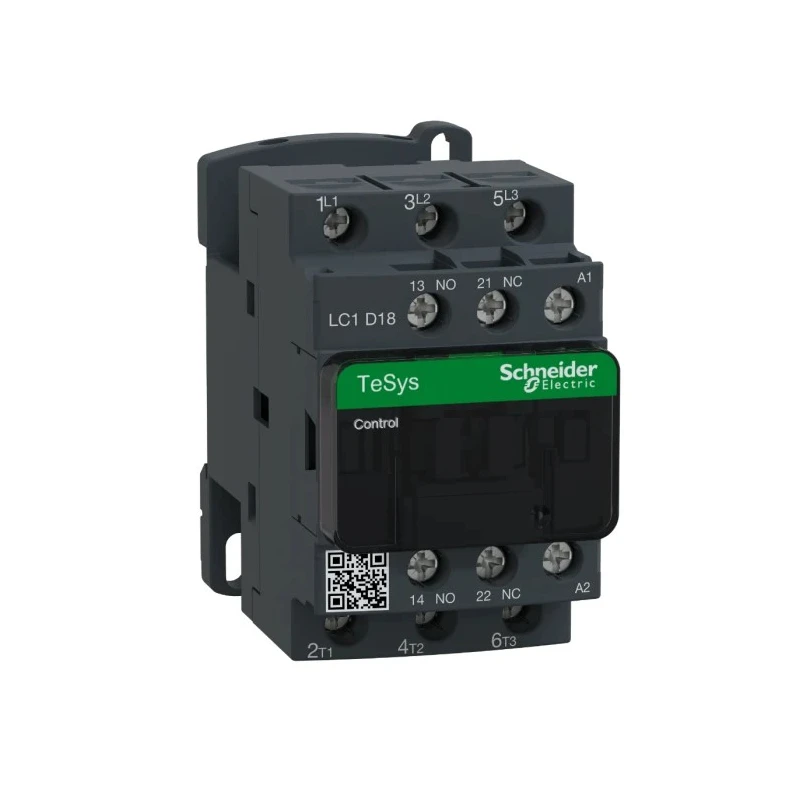

Schneider Electric LC1D Contactor, 36V AC Coil, 3-Pole, 18 A, 4 kW Power Rating, 3 NO, 690V AC/DC LC1D18C7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D18C7 |
| Depth | 86mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 4kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | EN 60947-4-1 |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 36V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 32V |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with a 36V AC coil for precise control.
- Features 3 poles suitable for robust applications.
- Supports 18 A contact current for reliable operation.
- Power rating of 4 kW ensures capability for various loads.
- Contains 3 normally open (NO) contacts for circuit control.

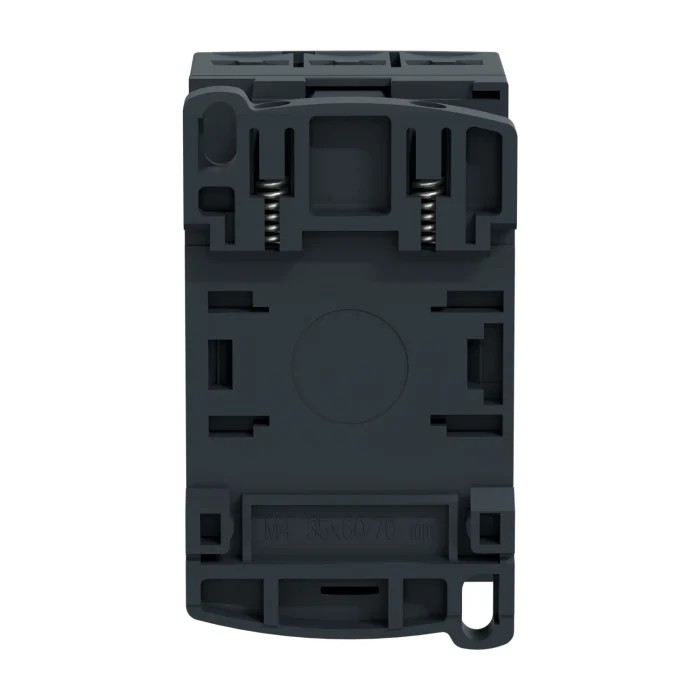

- Designed to be mounted on a DIN rail for easy installation.
- Includes 1 NO and 1 NC auxiliary contacts for added switching options.
- IP20 finger-safe screw terminals with international markings.
Product Description
Schneider Electric LC1D18C7 contactor is engineered to provide reliable motor control and resistive load switching for industrial and commercial applications. Featuring a 36V AC coil and 3 poles, it supports a contact current of 18 A with a 4 kW power rating, making it suitable for diverse uses including motor starters and control systems.
This contactor includes built-in auxiliary contacts configured as one normally open and one normally closed, enhancing switching capability. Its IP20 finger-safe screw terminals are marked for both North American and International standards, promoting safe and straightforward wiring practices.
Designed for DIN rail installation, the LC1D18C7 ensures quick and secure mounting within control panels. The device operates effectively in temperature ranges from -5°C up to 60°C, with compliance to EN 60947-4-1 standards assuring its durability and operational safety.
The contactor supports various control circuit voltages with a Uc of 32V and an operational current Ie of 32A. It features a bidirectional peak limiting diode suppressor to protect the coil, extending component life and reliability.
Typical applications include motor control for pumps, compressors, mixers, air conditioning units, lifts, conveyors, and other industrial machinery, making the LC1D18C7 versatile for automation needs in manufacturing, HVAC, water treatment, and commercial sectors.
Equipped with a 36V AC coil for precise control. Features 3 poles suitable for robust applications. Supports 18 A contact current for reliable operation. Power rating of 4 kW ensures capability for various loads. Contains 3 normally open (NO) contacts for circuit control.
Designed to be mounted on a DIN rail for easy installation. Includes 1 NO and 1 NC auxiliary contacts for added switching options. IP20 finger-safe screw terminals with international markings. Operates within -5°C to 60°C temperature range.
Complies with EN 60947-4-1 standards ensuring quality and safety.
This Schneider Electric Contactor is part of the TeSys D series, known for long mechanical and electrical life, providing high reliability and easy integration in control systems. Designed for disassembly, it supports sustainability goals in modern industrial environments.
Explore the full range of Schneider Electric automation and control products on EnvMart to enhance your electrical and industrial installation efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D18C7 contactor has a power rating of 4 kW, making it suitable for various loads.
This model supports a contact current of 18 A, ensuring reliable operation for motor control and resistive load applications.
The dimensions of the LC1D18C7 are 77 mm in length, 86 mm in depth, and 45 mm in width.
It is equipped with a 36V AC coil, providing precise control for various applications.
This contactor features 3 poles, suitable for robust applications.
The maximum operating temperature for the LC1D18C7 is 60°C, allowing it to function effectively in various environments.
The contactor includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC), enhancing its switching capability.
The LC1D18C7 is designed for DIN rail mounting, ensuring easy and secure installation within control panels.
It complies with EN 60947-4-1 standards, ensuring quality and safety for industrial applications.
The contact voltage rating for the LC1D18C7 is 690V AC/DC, suitable for various electrical systems.
The normal state configuration for this contactor is 3 normally open (NO) contacts, allowing for effective circuit control.
This contactor is suitable for motor control and resistive load applications, including pumps, compressors, and HVAC systems.
