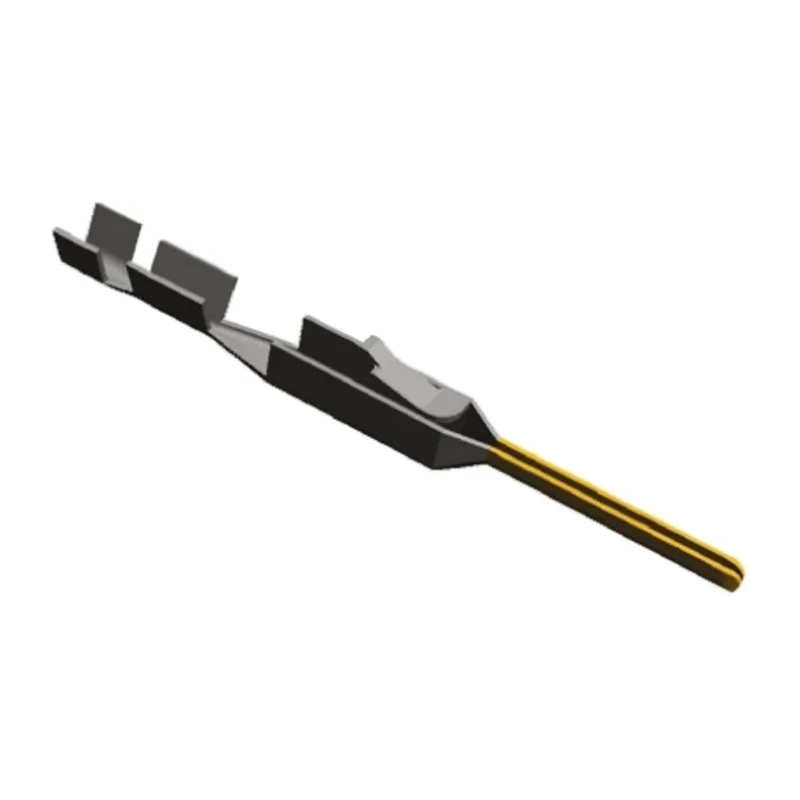

TE Connectivity AMPMODU MTE Series Male Crimp Terminal, 26 AWG Min Crimp, 22 AWG Max 5-104505-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 20.47mm |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MTE |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| For Use With | AMPMODU MTE Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 12mΩ |
Key Features
- Designed for use with AMPMODU MTE connector housings for secure electrical connections.
- Constructed with phosphor bronze contact material plated with gold for reliable conductivity.
- Supports a maximum current rating of 3 amps.
- Crimp termination type ensures efficient and durable wire connections.
- Operating temperature range from -65°C to 105°C for versatile applications.
- Maximum contact resistance is 12 milliohms ensuring minimal signal loss.
- Ideal for wire-to-board and wire-to-wire electronic interconnections.
- Part of the AMPMODU MTE 2.54mm pitch connector system facilitating labor and cost savings in mass termination.
Product Description
TE Connectivity 5-104505-5 AMPMODU MTE Series Male Crimp Terminal is engineered to provide secure electrical connections within the AMPMODU MTE connector housing system. It supports wire sizes ranging from 26 AWG minimum to 22 AWG maximum, accommodating various wiring requirements in electronics manufacturing.
This male Crimp Terminal features contacts made from phosphor bronze for mechanical strength and durability, plated with gold to enhance electrical conductivity and resist corrosion. It delivers a stable current rating of 3 amps and handles operating temperatures from -65°C up to 105°C, making it suitable for demanding industrial and electronic applications.
The crimp termination allows for efficient and robust wire attachment, reducing assembly time and improving reliability. With a length of 20.47mm and maximum contact resistance of only 12 milliohms, this terminal assures effective signal integrity in wire-to-board and wire-to-wire configurations.
The terminal is a key component in the AMPMODU MTE 2.54 mm pitch connector system, which utilizes insulation displacement contact (IDC) technology for fast and economical wire terminations. This system eliminates the need for wire stripping, thereby reducing manufacturing labor costs and increasing production throughput.
Compatible with AMPMODU MTE connector housings dedicated for mass termination. Phosphor bronze contacts plated with gold for excellent conductivity and corrosion resistance. High current carrying capability of up to 3A with low contact resistance.
Wide operating temperature range ensures reliable performance in harsh environments. Designed to enhance assembly efficiency and electrical connection reliability.
Applications of this terminal include industrial electronics, telecommunications, automotive wiring harnesses, HVAC systems, and other commercial electronic assembly uses. The product's precise design supports a broad range of manufacturing and repair tasks in electronic interconnection industries.
Explore more products under the TE Connectivity brand and the AMPMODU MTE connector family in the EnvMart catalog for comprehensive electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this terminal is 3 amps.
This model supports wire sizes ranging from 26 AWG minimum to 22 AWG maximum.
It operates within a temperature range of -65°C to 105°C.
The contacts are made from phosphor bronze and are plated with gold to enhance conductivity and resist corrosion.
The length of this terminal is 20.47 mm.
The maximum contact resistance is 12 milliohms, ensuring minimal signal loss.
It is designed for use with AMPMODU MTE connector housings.
This model uses a crimp termination type for efficient and durable wire connections.
It is suitable for applications in industrial electronics, telecommunications, automotive wiring harnesses, and HVAC systems.
This terminal is part of the AMPMODU MTE 2.54 mm pitch connector system, which facilitates labor and cost savings in mass termination.
The crimp termination allows for quick and reliable wire attachment, reducing assembly time during installation.
The country of origin for this terminal is India.
