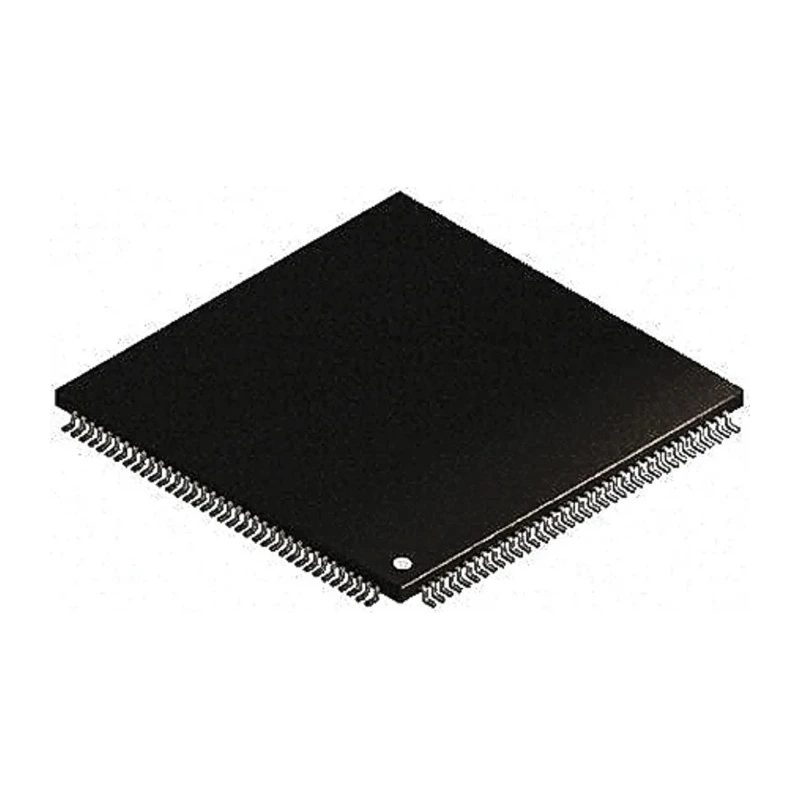

STMicroelectronics STM32H743ZIT6 32-bit ARM Cortex-M7 Microcontroller 400 MHz, 2MB Flash, 144-Pin LQFP

The STMicroelectronics STM32H743ZIT6 is a high-performance 32-bit ARM Cortex-M7 microcontroller operating at 400 MHz. Featuring 2MB of Flash memory and 1MB of RAM, it is designed for demanding embedded applications requiring fast processing and extensive memory resources.

This microcontroller incorporates an ARM Cortex-M7 core with a floating-point unit supporting both single and double precision (IEEE 754 compliant), enabling complex mathematical calculations. The device supports a wide voltage range from 1.62 V to 3.6 V, making it adaptable to various power supply designs.

With 168 programmable I/O pins and multiple timers (5 total), the STM32H743ZIT6 offers extensive interface options suitable for industrial automation, automotive systems, and advanced control applications. It includes 20 16-bit ADC channels and 2 12-bit DAC channels for precise analog signal processing.

Memory capabilities include up to 2MB of Flash with support for read-while-write functionality, and SRAM of 1MB. The package type is a 144-pin Low-profile Quad Flat Package (LQFP) with dimensions of 20.2 mm x 20.2 mm x 1.45 mm, which offers a compact footprint for space-constrained designs.

Designed for low power consumption, the STM32H743ZIT6 supports various low-power modes such as Sleep, Stop, and Standby with VBAT, enabling battery-powered and energy-efficient system designs. Additional features include dual-mode Quad-SPI memory interface running up to 133 MHz and a flexible external memory controller supporting a 32-bit data bus.

This microcontroller is ideal for use in industrial, automotive, and commercial embedded systems that demand high processing speed, large memory, and advanced analog features. This microcontroller is based on the ARM Cortex-M7 32-bit RISC core with double-precision FPU.

It features up to 2MB Flash memory supporting read-while-write. Provides 1MB RAM and operates at a maximum clock frequency of 400 MHz. Includes 168 programmable I/O ports with interrupt capability. Equipped with 20 16-bit ADCs and 2 12-bit DACs for analog interfacing.

Supports various low-power modes including Sleep, Stop, and Standby with VBAT. Operates within a supply voltage range of 1.62 V to 3.6 V for flexibility. Package dimensions include 20.2 mm length, 20.2 mm width, and 1.45 mm height.

Suitable for industrial, automotive, and embedded system applications requiring high processing power and analog capabilities. Explore other Microcontroller products and accessories at EnvMart, your source for industrial and electronics components.
