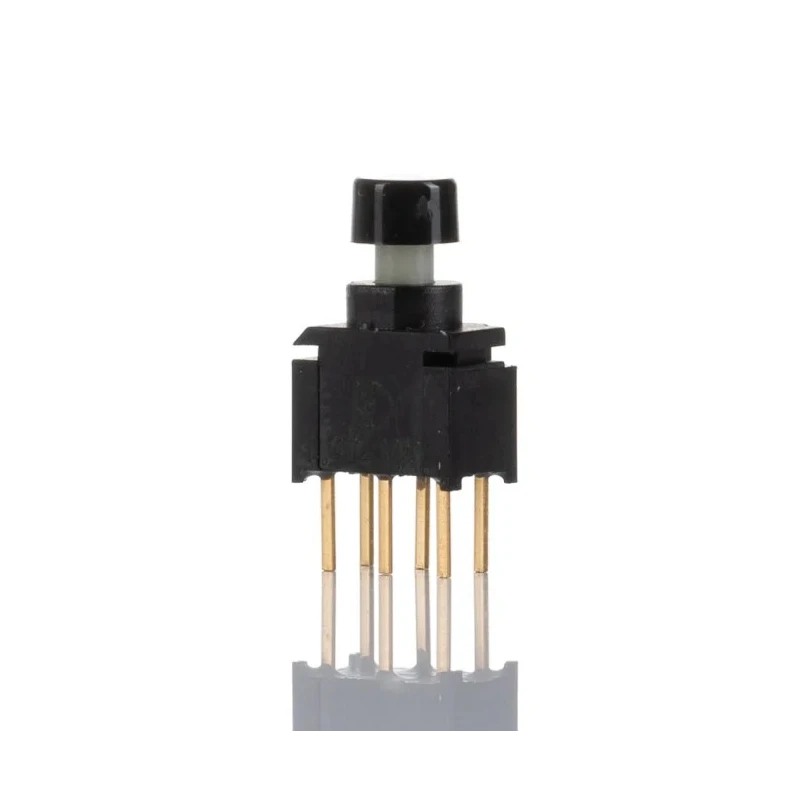

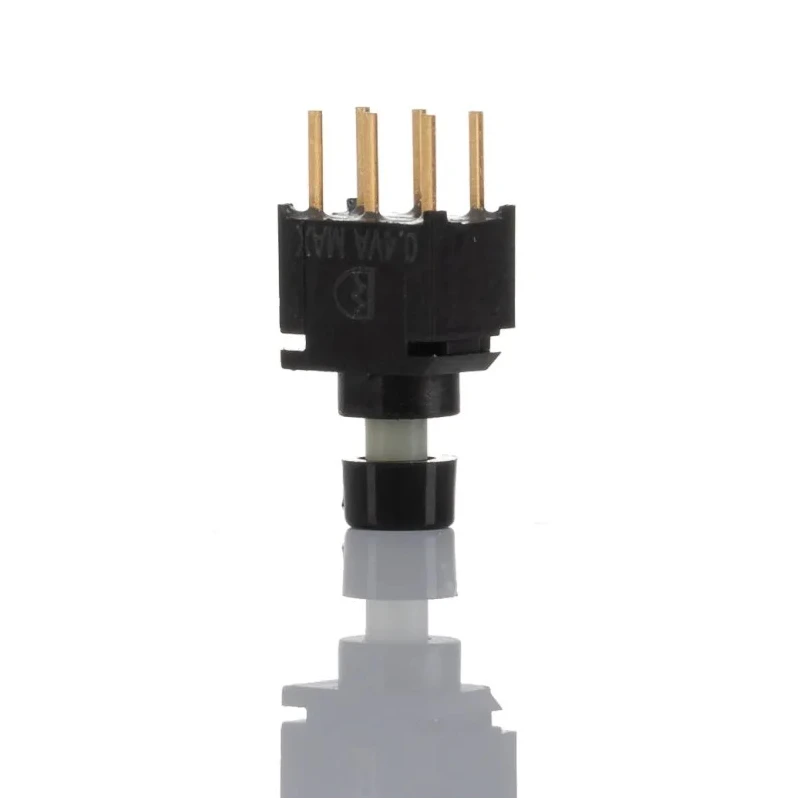

RS PRO Miniature Push Button Switch Momentary PCB DPDT Black LED IP67 20V 734-6763
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 734-6763 |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | DPDT |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| LED Colour | Black |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Style | Cap |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 20V |
| Standards and Approvals | RoHS compliant |
Key Features
- The switch features a black cap actuator with momentary ON-(ON) action.
- It has a double pole double throw (DPDT) contact configuration suitable for multiple switching applications.
- Gold plated copper contacts ensure reliable conductivity and resistance to oxidation.
- Designed for PCB through-hole mounting with an IP67 sealing rating for protection against dust and water ingress.
- Operates reliably across a temperature range from -30°C to 85°C.
- Contact AC voltage rated at 20V with a contact current capacity of 400mA.
- Mechanical life is rated up to 40,000 cycles providing durable performance.
- Switch contact resistance is below 100mΩ initially, ensuring efficient electrical switching.
Product Description
RS PRO 734-6763 Miniature Push Button Switch is an industrial-grade, momentary action DPDT switch designed for PCB mount applications with a black LED indicator and IP67 rating, capable of handling up to 20V AC or DC. This compact, ultraminiature switch is enclosed in a flame-retardant glass-filled nylon case to UL94V-0 standards, providing resistance to mechanical and environmental stress.
The switch actuator is a black colored cap style, providing tactile feedback with ON-(ON) momentary switching action. Gold plated copper contacts ensure long-term reliability by resisting oxidation, maintaining stable conductivity over an extensive mechanical life of 40,000 cycles.
Rated for a contact current of 400mA and a maximum contact voltage of 20V, this switch supports a broad range of applications including automotive systems, network equipment, small instrumentation, and control panels. Its IP67 rating affords dust-tight and water ingress protection, making it suitable for harsh environmental conditions.
Designed for through-hole PCB mounting, it offers a compact solution for electronic assemblies requiring reliable push button control with momentary contact functionality. The device features momentary operation with DPDT contact configuration.
Gold plating on contacts and terminals ensures durability and oxidation resistance. Mechanical life is rated at 40,000 cycles ensuring longevity. Contact resistance is kept below 100mΩ for efficient switching performance.
Wide operating temperature range from -30°C to 85°C supports industrial use. Constructed with UL94V-0 glass-filled nylon case and actuator for safety. Sealed with an internal O-ring to protect from soldering and cleaning processes.
Meets RoHS environmental standards to reduce hazardous substances.
This miniature push button switch is ideal for industrial, laboratory, manufacturing, electronic instrumentation, automotive, and networking applications. Its resilient construction and reliable contact system make it a trusted component in demanding electrical and electronics use cases.
Explore more RS PRO products and switch solutions in EnvMart’s extensive catalog.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double pole double throw (DPDT) contact configuration, suitable for multiple switching applications.
The maximum operating temperature for this switch is 85°C.
It has an IP67 rating, providing protection against dust and water ingress.
The contact current capacity is rated at 400mA.
This switch is designed for through-hole PCB mounting.
The mechanical life of this switch is rated up to 40,000 cycles.
The minimum operating temperature is -30°C.
This model has a black cap actuator for momentary switching action.
Yes, this switch meets RoHS environmental standards to reduce hazardous substances.
It is rated for a contact AC voltage of 20V.
The LED indicator on this switch is black.
The switch is enclosed in a flame-retardant glass-filled nylon case to UL94V-0 standards.
