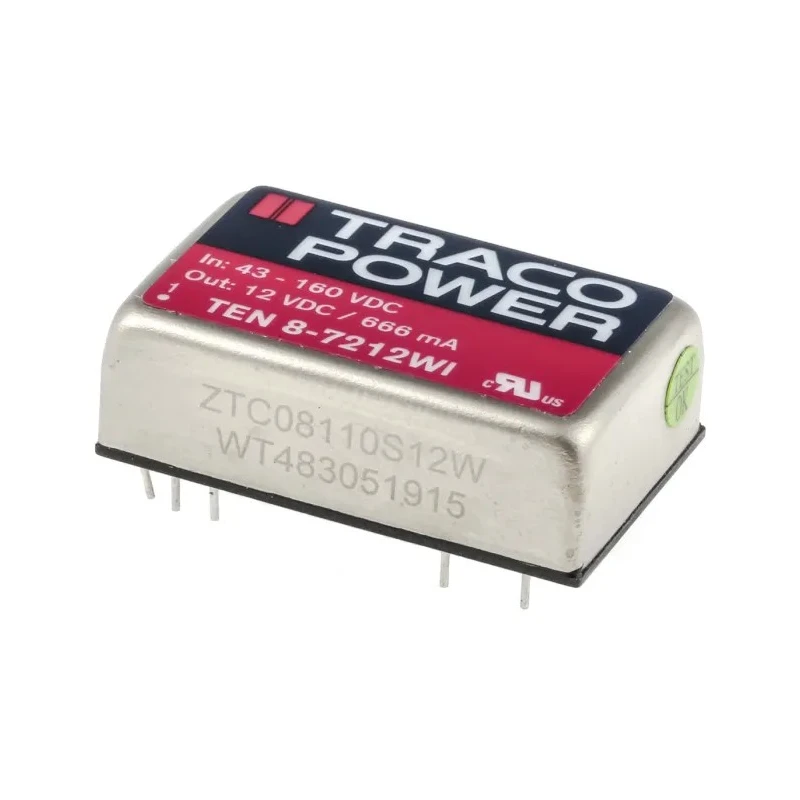

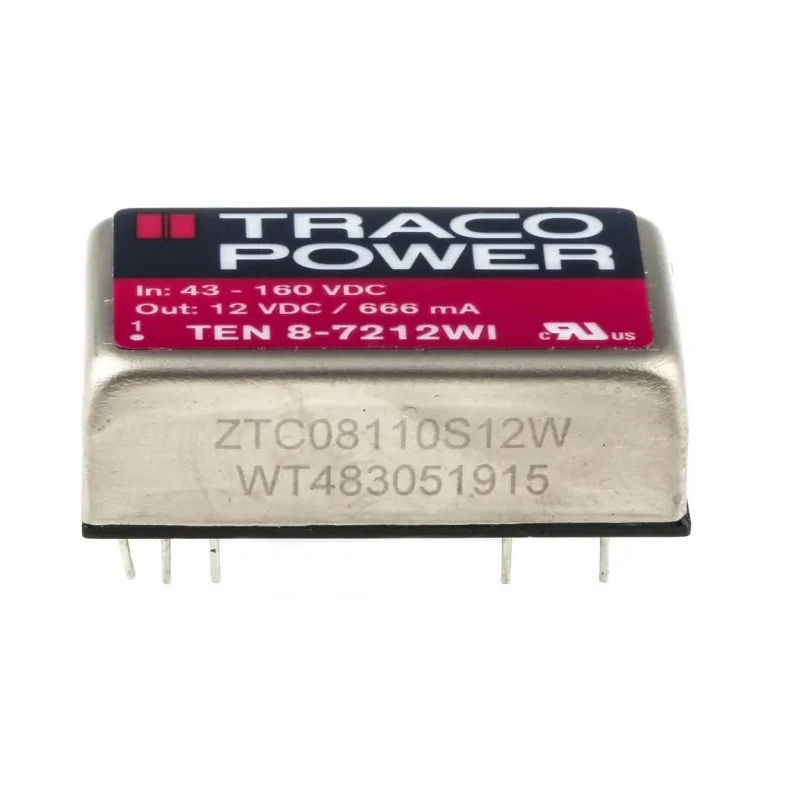

TRACOPOWER 8 Watt Regulated Isolated DC-DC Converter 12V DC Output 666 mA 43-160V DC Input TEN 8-7212WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 8WI DC/DC Converter, 12V dc/ 666 mA |
| Brand | TRACOPOWER |
| Efficiency | 86% |
| Length | 32mm |
| Model | TEN 8-7212WI |
| Depth | 10.2mm |
| Width | 20.3mm |
| Mount Type | PCB |
| Series | TEN 8WI |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 160V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 43V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 666mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 1:6 |
| Input Ratio1 | 6 |
Key Features
- Single output with a power rating of 3 Watts.
- Designed with a DIP-24 PCB mounting package and shielded metal case with insulated base plate.
- Operating temperature range from -40°C to 85°C suitable for harsh environments.
- Features high efficiency of up to 86% and remote On/Off control capability.
- Excellent EMC performance compliant with EN 50155 for railway and transportation applications.
- Includes thermal shock and vibration resistance according to EN 61373 standards.
- Lead-free and RoHS compliant design for environmental safety.
- Isolation voltage rated at 1.5 kV DC for enhanced safety.
Product Description
TRACOPOWER TEN 8-7212WI is an industrial-grade 8 Watt DC-DC converter offering regulated and isolated output, delivering 12V DC at 666 mA.
This converter operates over an ultra-wide input voltage range of 43V to 160V DC, enabling versatile use in diverse power supply conditions. It features a DIP-24 metal package designed for PCB mounting, with a shielded metal case and insulated base plate providing thermal management and electrical safety.
The device supports a maximum output power of 3 Watts with high efficiency rated at 86%, ensuring minimal energy loss. Its wide operating temperature range from -40°C up to 85°C makes it suitable for industrial, railway, transportation, telecommunication, and measurement equipment environments.
Robust EMC characteristics and EN 50155 approval further certify this product for critical railway applications. The converter is built for resilience, complying with EN 61373 standards for thermal shock and vibration resistance, ensuring operational stability under harsh mechanical conditions.
The design is lead-free and RoHS compliant, aligning with environmental regulations. It also includes remote On/Off control and an under-voltage lockout circuit, enhancing system control and protection.
Ultra-wide 4:1 input voltage range from 43V to 160V DC. High isolation voltage of 1.5 kV DC for secure signal separation. Compact DIP-24 metal package suitable for PCB mounting. Operating temperature range from -40°C to 85°C for extended environmental tolerance.
High efficiency up to 86% to reduce energy consumption and heat generation. EN 50155 certification suitable for railway and transport systems. Thermal shock and vibration resistant to EN 61373 standards. Remote On/Off and under-voltage lock-out functionalities for enhanced control.
Lead-free, RoHS compliant for environmental safety. MTBF of 700,000 hours assures long-term reliability and performance.
This TRACOPOWER DC-DC Converter is especially recommended for applications in industrial power supplies, railway and transportation systems, wireless network infrastructures, telecom/datacom equipment, industrial control systems, and precision measurement instruments.
Choose TRACOPOWER for reliable, efficient, and robust DC-DC conversion solutions suitable for demanding industrial environments. Explore more high-quality DC/DC converters in the EnvMart Electronics & Electricals catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides an output voltage of 12V DC and an output current of 666 mA.
The input voltage range for the TEN 8-7212WI is from 43V to 160V DC.
The maximum output power of this unit is 3 Watts.
The dimensions of this model are 32mm in length, 20.3mm in width, and 10.2mm in depth.
It has a high efficiency rating of up to 86%.
The operating temperature range for the TEN 8-7212WI is from -40°C to 85°C.
This unit is designed for PCB mounting and comes in a DIP package type.
It includes an isolation voltage rated at 1.5 kV DC and features remote On/Off control and under-voltage lockout for enhanced safety.
Yes, it is compliant with RoHS and EN 50155 standards, making it suitable for railway applications.
This model is suitable for industrial power supplies, railway and transportation systems, and telecommunication equipment.
The MTBF for the TEN 8-7212WI is rated at 700,000 hours, indicating long-term reliability.
It meets environmental ratings for thermal shock and vibration resistance according to EN 61373 standards.
