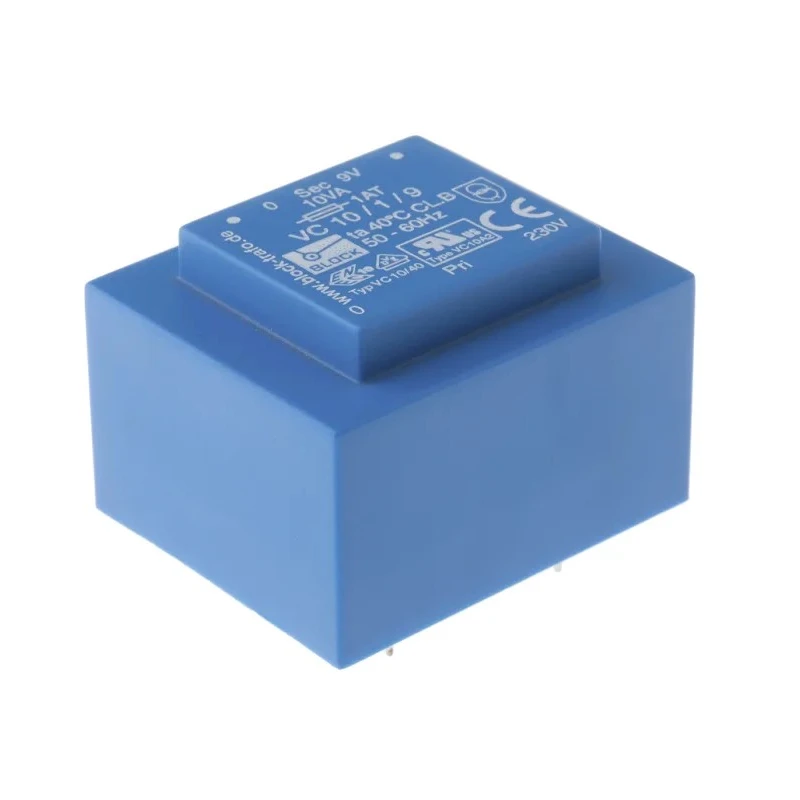

Block 9 V AC 1 Output Pin PCB Transformer 10 VA, Pin Mount, C-UL-US, ENEC 10 (VDE) VC 10/1/9

Block VC 10/1/9 PCB Transformer is engineered for power supply applications requiring a reliable 10 VA transformer with a primary voltage of 230 V AC and a secondary output of 9 V AC. It is designed for efficient PCB mounting using a pin mount configuration, offering low inter-winding capacitance that minimizes noise and interference during operation.

This transformer features vacuum resin moulding compliant with UL94-V0 fire safety standards, providing robust insulation and stability. It is tested thoroughly including electrical and flash testing procedures to guarantee reliability and safety.

The device operates effectively within a frequency range of 50 Hz to 60 Hz and withstands a maximum operating temperature of 40°C, making it suitable for various electronic and industrial PCB-based power supply systems.

With an isolation voltage of 5000V, the transformer ensures excellent electrical isolation between the primary and secondary circuits, promoting safety in sensitive applications. Its efficiency of 74% helps optimize power usage.

Certified by C-UL-US and ENEC 10 (VDE) standards, this transformer meets stringent international quality and safety requirements. Its compact form factor with dimensions 51 mm length, 43 mm width, and 34.6 mm depth supports convenient PCB integration.

Pin mount type for secure PCB installation. Single output with 1 output pin. Isolation voltage rating of 5000V ensuring safe electrical separation. Efficiency of 74% for reliable power transfer. Operates within 50 Hz to 60 Hz frequency range.

Maximum operating temperature of 40°C for stable functioning. Vacuum resin moulded to UL94-V0 standard for fire resistance. Low inter-winding capacitance and low radiated noise. Tested 100% electrically and flash tested for quality assurance.

Complies with C-UL-US and ENEC 10 (VDE) standards.

This PCB transformer is ideal for use in industrial, laboratory, electronic equipment manufacturing, and power supply distribution systems, providing dependable voltage conversion and isolation. Its design supports a wide range of applications needing 9 V AC output with assured quality and safety certifications.
