Block PCB Transformer 15 V ac, 2.8 VA Power, Pin Mount, 32.3x27.3x34 mm Dimensions VB 2,8/1/15

Free Delivery in India | Lowest Global Shipping Charges

Block PCB Transformer 15 V ac, 2.8 VA Power, Pin Mount, 32.3x27.3x34 mm Dimensions VB 2,8/1/15

Name: Block PCB Transformer 15 V ac, 2.8 VA Power, Pin Mount, 32.3x27.3x34 mm Dimensions VB 2,8/1/15
Brand: Block
SKU: 222521
Price: 16.65 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	57%
Length	32.3mm
Model	VB 2,8/1/15
Depth	34mm
Gross Weight	140g
Width	27.3mm
Mount Type	Pin
Series	VB 2.8/1/15
Maximum Operating Temperature	0°C
Number of outputs	1
Isolation Voltage	5000V
Primary Voltage	230 V ac
Secondary Voltage	15 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Block 15V ac 1 Output Through Hole PCB Transformer, 3.2VABrand	Block

Key Features

Operates at 230 V ac primary voltage with 50 to 60 Hz frequency range.
Compact dimensions of 32.3 mm length, 27.3 mm width, and 34 mm depth.
Short circuit proof design with vacuum epoxy resin moulded to UL94-V0 rating for safety.
Isolation voltage of 5000 V ensures high electrical safety standards.
Efficient operation with 57% efficiency and low inter-winding capacitance.
High-quality double section glass fibre reinforced polyamide bobbins for durability.
Meets multiple standards including DIN EN 61558-2-1, ENEC 10 (VDE), VDE 0570 parts, and IEC 61558-2-1.
Maximum operating temperature of 0°C designed for reliable performance.

Product Description

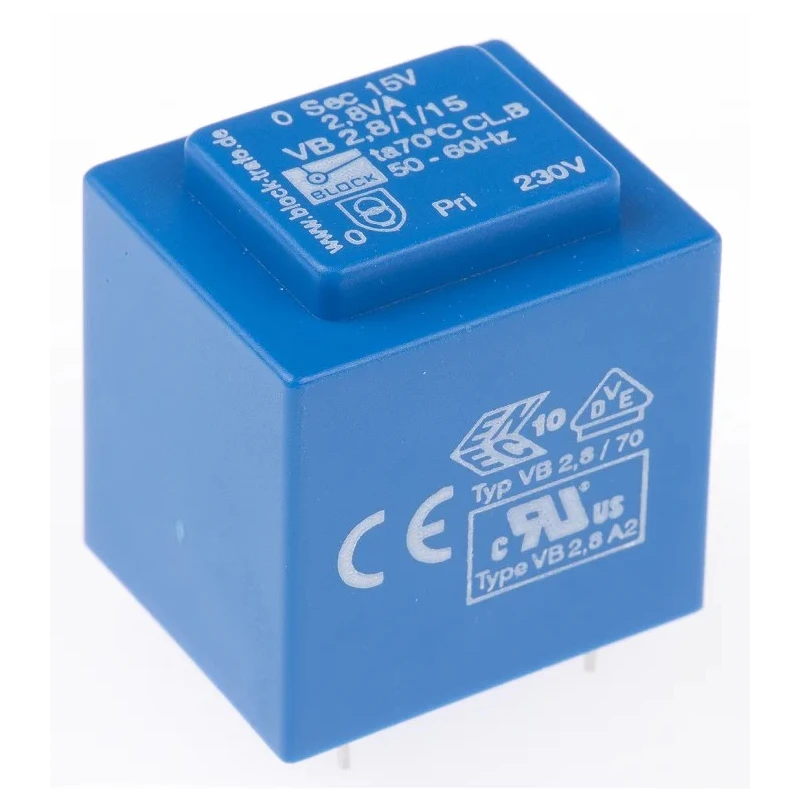

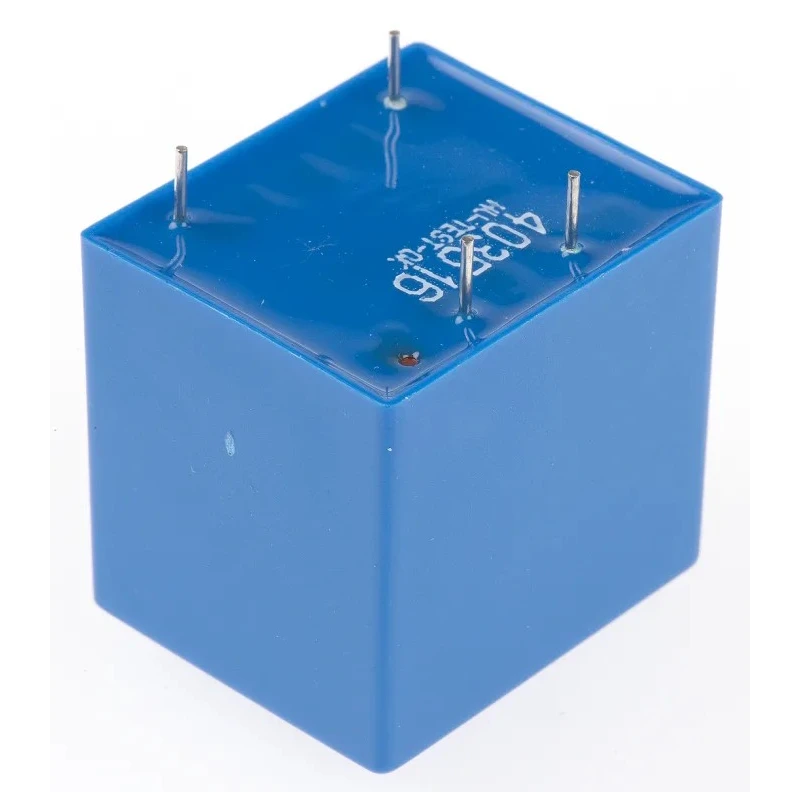

Block VB 2,8/1/15 PCB Transformer is a compact, pin-mounted transformer designed for electronic components requiring 15 V ac output at 2.8 VA power rating. It operates on a 230 V ac primary voltage with frequency between 50 Hz and 60 Hz, suitable for standard power supplies.

This transformer series VB 2.8/1/15 is inherently short circuit proof, enhancing safety in demanding applications. The design incorporates vacuum epoxy resin encapsulation with UL94-V0 rating to resist electrical breakdown and environmental stress.

Constructed with double section glass fibre reinforced polyamide bobbins, the transformer sustains durability and ensures low radiated noise and minimal temperature rise, with an efficient rating of 57%. Isolation voltage rating is 5000 V, promoting electrical safety across circuits.

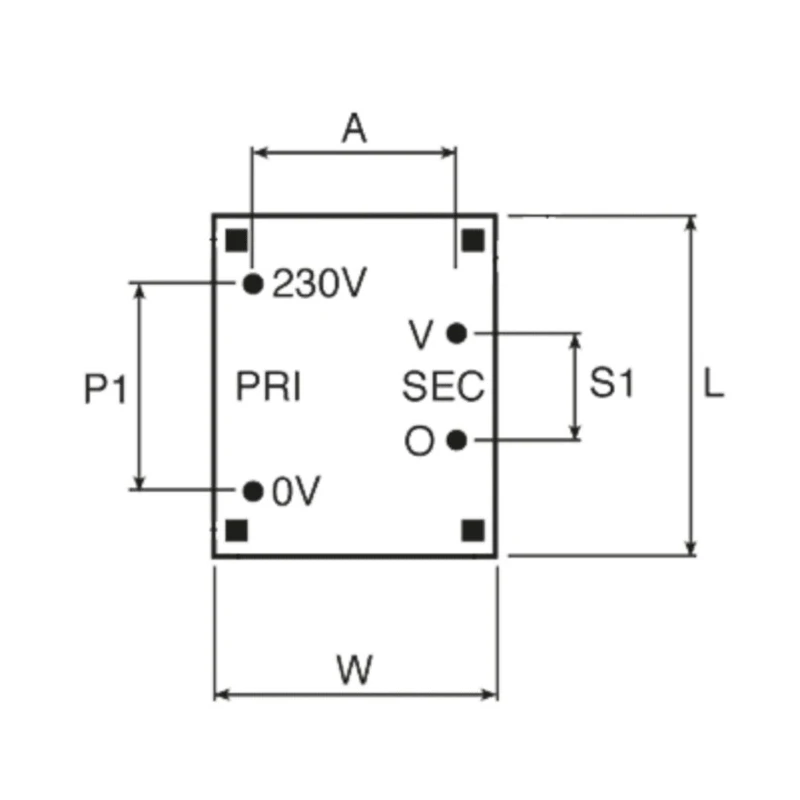

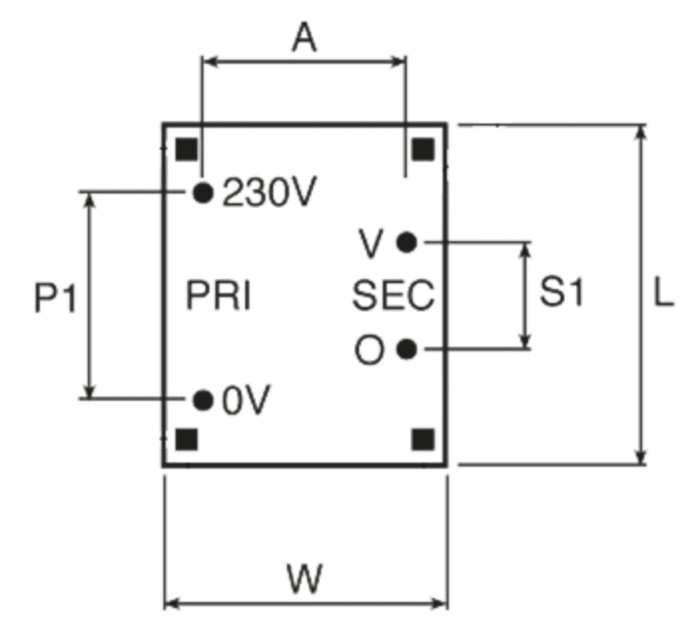

The dimensions of length 32.3 mm, width 27.3 mm, and depth 34 mm allow easy mounting on PCBs with standard pin footprint. With a gross weight of 140 grams, it offers a lightweight yet robust solution.

This product complies with various international standards including DIN EN 61558-2-1, ENEC 10 (VDE), VDE 0570 Part 2-6, VDE 0570 part 2-1, IEC 61558-2-1, and is UL recognized. These certifications confirm its quality and suitability for industrial, laboratory, and commercial power supply applications.

Operates at 230 V ac primary voltage with 50 to 60 Hz frequency range. Compact and durable pin mount design for PCB integration. High isolation voltage of 5000 V ensures safe electrical separation. Short circuit proof with vacuum epoxy resin moulding and UL94-V0 rating.

Meets multiple European and international safety standards. Lightweight at 140 g and efficient with 57% energy conversion. High reliability with low radiated noise and low inter-winding capacitance.

This transformer is ideal for industrial electronic equipment, power supplies, manufacturing, and laboratory instruments requiring reliable low-voltage AC power. It is designed for long-term usage under specified operating conditions. Explore more PCB Transformers and power supply components in the Electronics & Electricals category at EnvMart.
