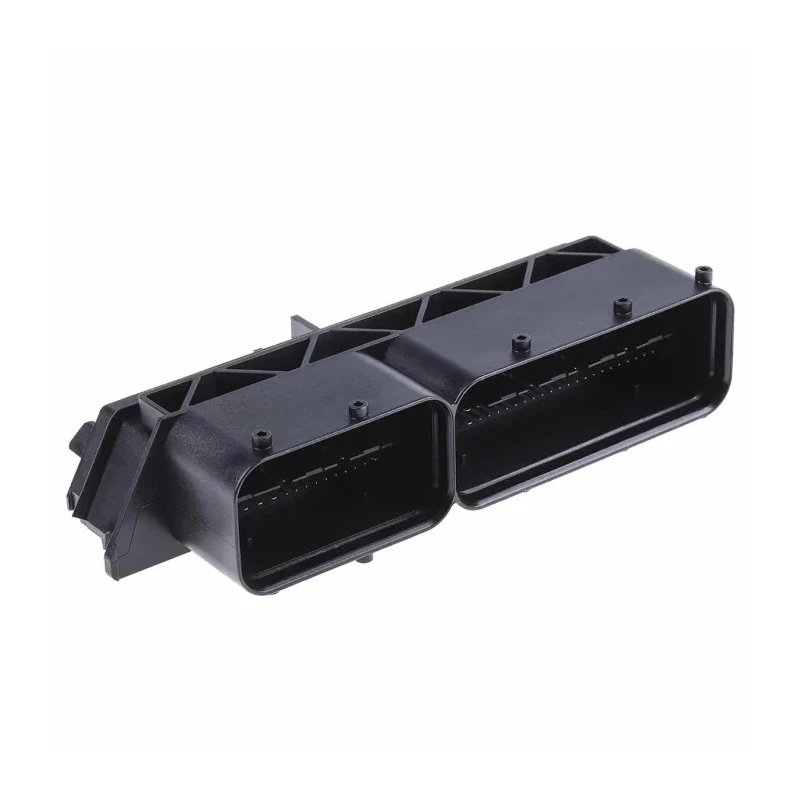

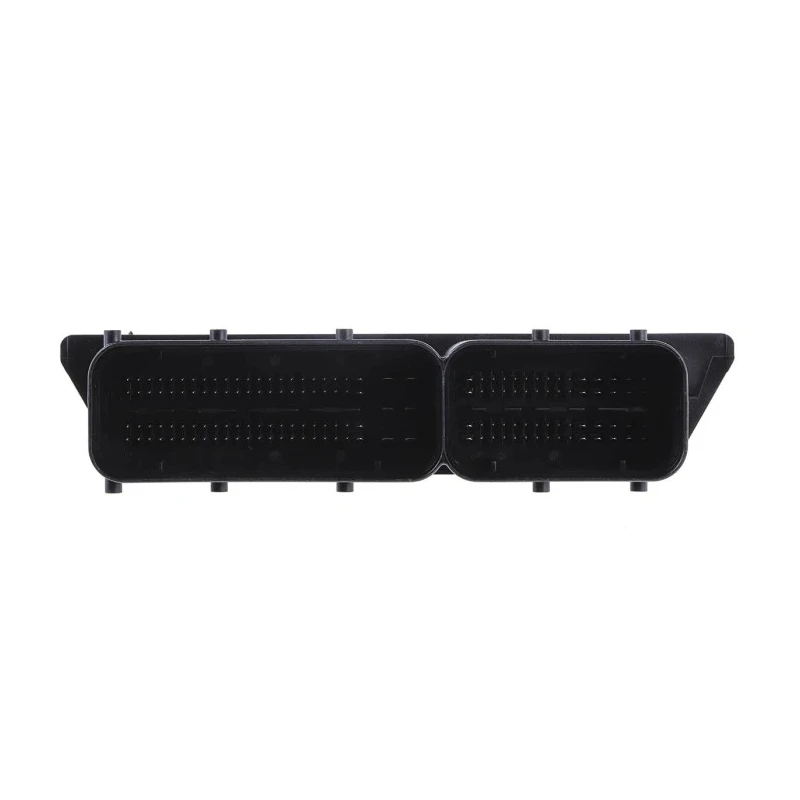

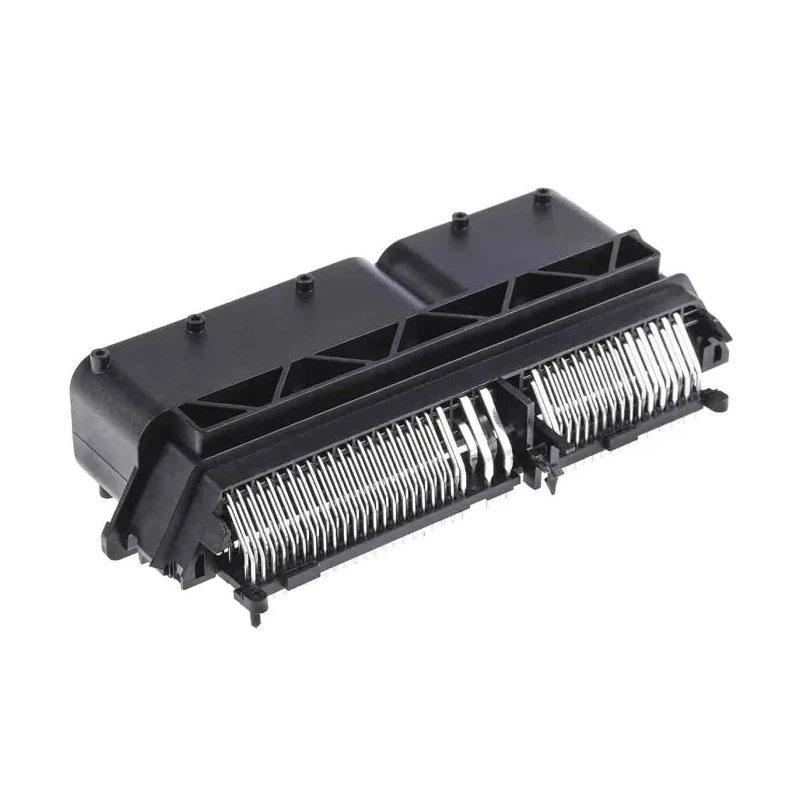

TE Connectivity Micro Quadlok System Automotive Connector Male Through Hole 154 Way Solder Termination 284617-1
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 60.7mm |
| Brand | TE Connectivity |
| Height | 27mm |
| Model | 284617-1 |
| Depth | 60.7mm |
| Width | 155.6mm |
| Gender | Male |
| Mount Type | Through Hole |
| Series | Micro Quadlok System |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Sub Type | Header Assembly |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 4 |
| Contact Plating | Tin |
| Number of Contacts | 154 |
Key Features
- Features a header assembly with 154 contacts for versatile use.
- Includes 4 rows with Micro Quadlok System series for high-density connections.
- Constructed with tin-plated contacts ensuring good conductivity.
- Operates effectively between -40°C and 100°C for automotive environments.
- Designed for through-hole mounting facilitating secure PCB installation.
- Material housing is black PA 66-GF for durability and heat resistance.
- Male gender connector with solder termination enhances mechanical and electrical stability.
- Connector dimensions optimized for compact automotive assemblies.
Product Description
TE Connectivity 284617-1 Micro Quadlok System Automotive Connector is a high-performance header assembly designed for automotive electrical applications, providing robust connection solutions on PCBs through its 154 way contact configuration.
This connector incorporates male MCP and MQS contacts, combining 120 MQS contacts with 28 MCP 1.5 tab and 6 MCP 2.8 tab contacts, suitable for complex wiring harness designs and high-density electronic modules.
The housing is crafted from black PA 66-GF, a glass-filled nylon material offering excellent mechanical strength and thermal resistance suitable for automotive environments. Its through-hole mount type ensures secure placement on printed circuit boards, and the solder termination provides robust mechanical and electrical connections.
Operating temperature range from -40°C to 100°C ensures reliable performance in harsh automotive conditions. The connector’s dimensions include a width of 155.6mm, diameter of 60.7mm, height of 27mm, and depth of 60.7mm, designed for compact yet high-contact solutions.
The contact plating is tin, offering corrosion resistance and enhanced electrical conductivity. The Micro Quadlok System series is specifically engineered for automotive quality standards, though there are no specific certifications or approvals listed for this model.
Features a header assembly with 154 contacts for versatile use. Includes 4 rows with Micro Quadlok System series for high-density connections. Constructed with tin-plated contacts ensuring good conductivity. Operates effectively between -40°C and 100°C for automotive environments.
Designed for through-hole mounting facilitating secure PCB installation. Material housing is black PA 66-GF for durability and heat resistance. Male gender connector with solder termination enhances mechanical and electrical stability.
Connector dimensions optimized for compact automotive assemblies.
This Automotive Connector is ideal for use in industrial automotive electronics, including wiring harnesses, control modules, and embedded systems where secure and reliable electrical connections are necessary.
Explore advanced connector solutions in the Automotive Electrical Connectors category at EnvMart for premium industrial components and efficient product sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a total of 154 contacts, organized in 4 rows for high-density connections.
It operates effectively between -40°C and 100°C, making it suitable for harsh automotive environments.
This connector is designed for through-hole mounting, ensuring secure installation on printed circuit boards.
The housing is made from black PA 66-GF, a glass-filled nylon material, while the contacts are tin-plated for good conductivity.
It features a solder termination type, which enhances both mechanical and electrical stability.
The connector has a width of 155.6mm, a height of 27mm, and a diameter of 60.7mm, with a depth of 60.7mm.
This model is part of the Micro Quadlok System series, designed for high-density automotive connections.
This connector is a male gender type, suitable for various automotive applications.
The contacts are plated with tin, which provides corrosion resistance and enhances electrical conductivity.
It is ideal for use in industrial automotive electronics, including wiring harnesses, control modules, and embedded systems.
The country of origin for this connector is India.
This connector is classified as a header assembly, which is commonly used in various electronic applications.
