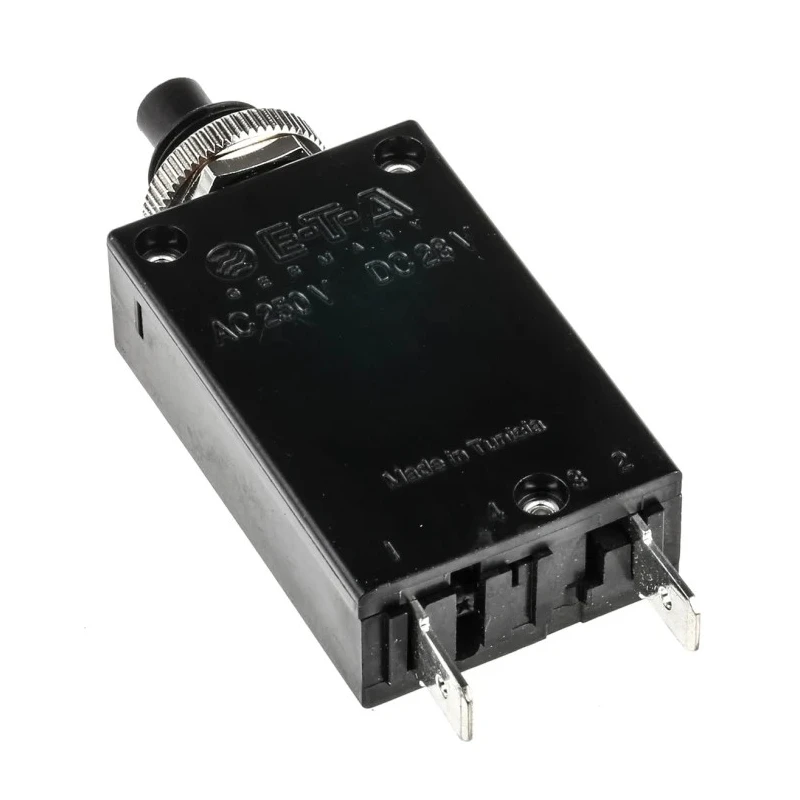

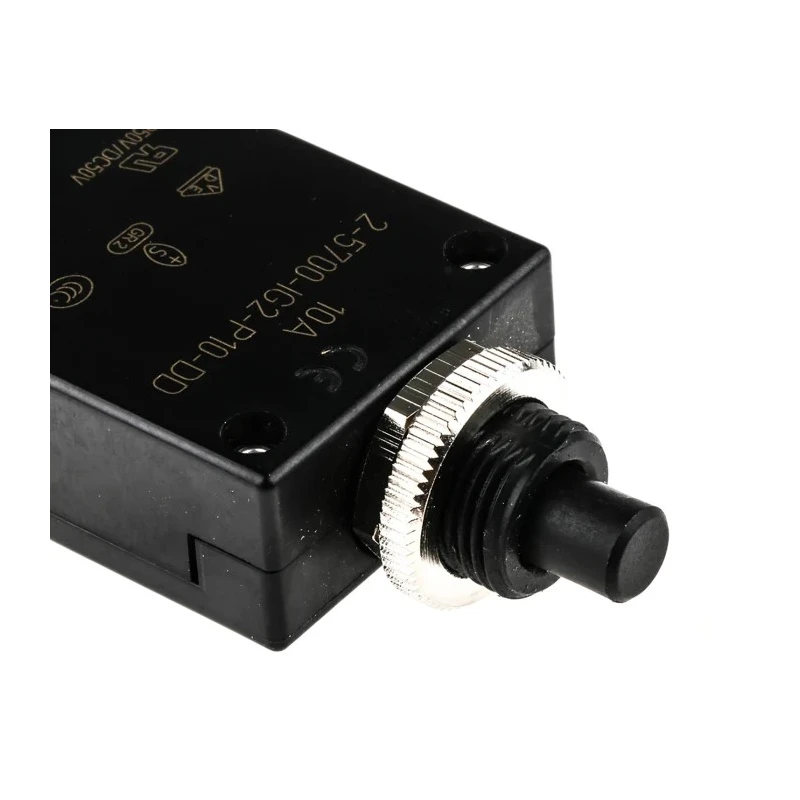

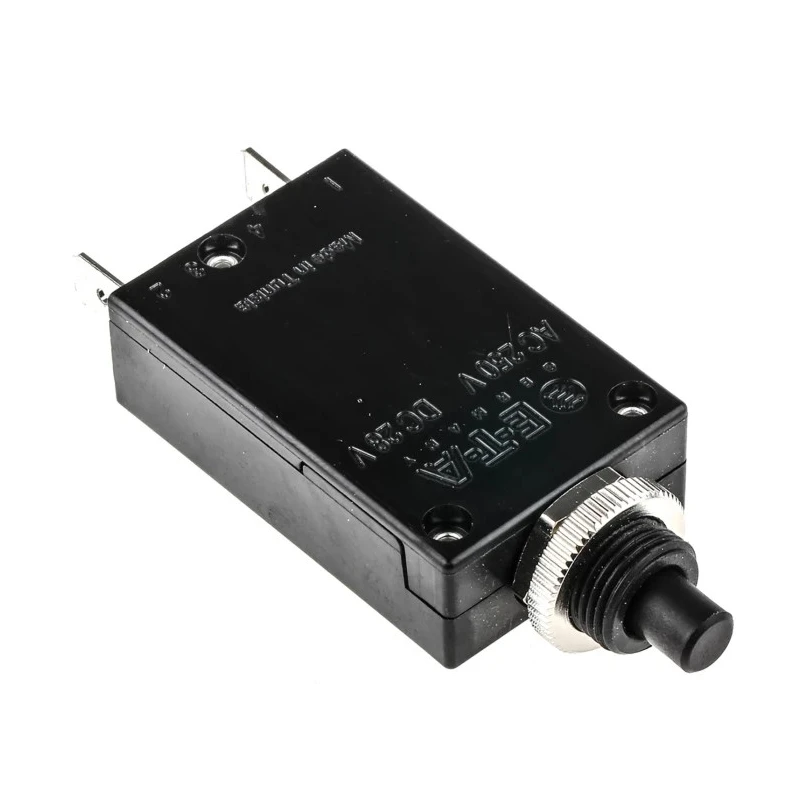

ETA Thermal Circuit Breaker 10A Current Rating 1-Pole Panel Mount 2-5700-IG2-P10-DD-000040-10A

ETA 2-5700-IG2-P10-DD-000040-10A Thermal Circuit Breaker is a high-quality electrical protection device rated for 10A current with a single pole (1-pole) panel mounting design. Its compact dimensions include a width of 15.7 mm and height of 44 mm, making it suitable for use in confined panel spaces.

This breaker employs a thermal tripping mechanism that provides dependable overload and short circuit protection, ideal for motors, transformers, power supplies, and extra low voltage systems. The device features a push-to-release and push-to-reset button actuator for convenient manual operation, along with an on/off status indication.

The 2-5700 series breaker has a breaking capacity of 25A, rated for 250V AC and 50V DC voltages, delivering reliable performance in industrial and commercial electrical circuits. It complies with CE and RoHS standards and holds UL, CSA, and VDE (EN60934) approvals, ensuring adherence to international quality norms.

Mounting is through a 3/8 inch or M12 moulded thread-neck single-hole panel fixing, with blade terminals sized 6.3-0.8 mm providing secure electrical connections. The device features a tease-free and trip-free mechanism for enhanced longevity and safety.

Designed primarily for motor protection and other industrial applications, the ETA thermal circuit breaker supports typical life expectancy of 5000 switching operations at twice the nominal current rating.

Provides overload and short circuit protection via thermal tripping mechanism. Panel mount type with blade terminals measuring 6.3-0.8 mm for secure connection. Compact dimensions with 15.7 mm width and 44 mm height optimize space usage.

Push-to-release and push-to-reset button actuator for easy manual control. Type R tripping characteristic suitable for motors, transformers, and extra low voltage systems. Breaking capacity of 25A ensures reliable interruption capability.

Rated for 250V AC and 50V DC applications. Complies with CE and RoHS standards and includes UL, CSA, and VDE (EN60934) approvals. Manufactured in Tunisia with robust design for a typical life of 5000 operations at twice nominal current.

This ETA thermal circuit breaker is an essential component for industrial automation, electrical distribution panels, manufacturing facilities, HVAC systems, and various low voltage applications requiring dependable protective switching.
