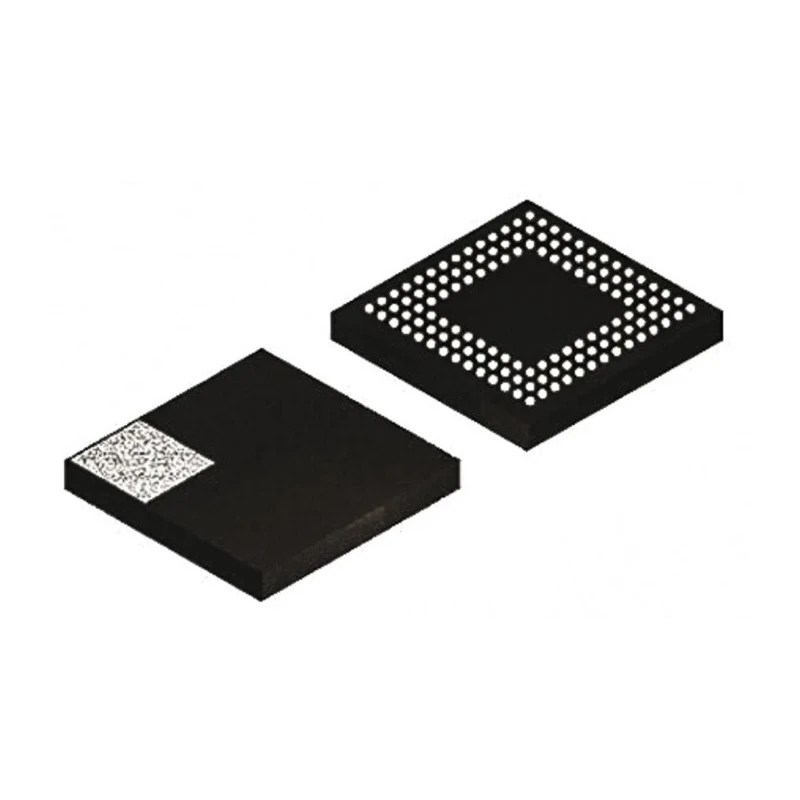

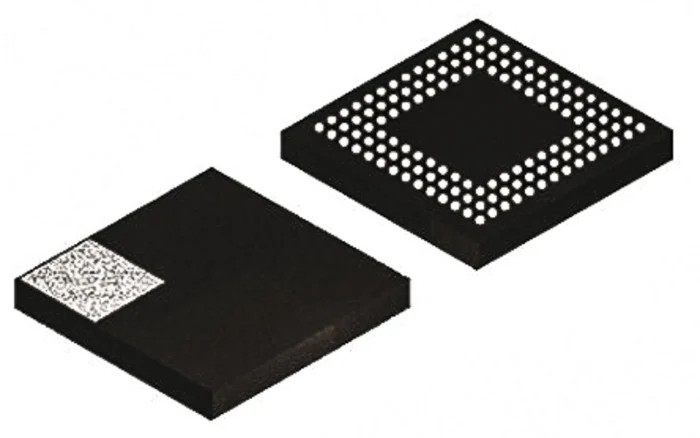

STMicroelectronics 32-bit ARM Cortex M4 STM32L4+ Microcontroller, 120 MHz, 2MB FLASH, 132-Pin UFBGA STM32L4R5QII6
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 490μm |
| Length | 7.15mm |
| Model | STM32L4R5QII6 |
| Width | 7.15mm |
| Mount Type | Surface |
| Series | STM32L4+ |
| Maximum Operating Temperature | 85°C |
| Package Type | UFBGA |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB, audio, ADC |
| Ram size | 640kB |
| Pin Count | 132 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 364mW |
| Minimum Supply Voltage | 1.71V |
| Device Core | ARM Cortex M4 |
| Program Memory Size | 2MB |
| Maximum Clock Frequency | 120MHz |
| Number of Programmable I/Os | 136 |
| Analogue Comparators | 2 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 16 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 12 Bit |
Key Features
- Features ARM Cortex M4 32-bit RISC core with single-precision floating-point unit.
- Operates at maximum clock frequency of 120 MHz.
- Includes 640 kB RAM for efficient data processing.
- 132-Pin Ultra Fine Ball Grid Array (UFBGA) package type suitable for surface mount.
- Supports ultra-low-power operation with 5 μs wakeup from Stop mode.
- Equipped with 16 x 12-bit ADCs for high-resolution analog to digital conversion.
- Has 2 x 12-bit DACs and 2 analogue comparators.
- Program memory type is FLASH with 2MB size for robust firmware storage.
Product Description
STMicroelectronics STM32L4R5QII6 is a high-performance 32-bit ARM Cortex M4 microcontroller from the STM32L4+ series, running at 120 MHz with 2MB FLASH memory and 640 kB RAM. It is designed for ultra-low-power applications while delivering real-time processing capability with its RISC architecture.
This microcontroller features advanced peripherals including 16 channels of 12-bit ADCs, 2 x 12 bit DACs, analogue comparators, and 5 timers, suitable for complex industrial, automotive, and consumer electronics applications. The 132-Pin UFBGA package is optimized for surface mounting providing a compact footprint measuring 7.15 mm by 7.15 mm with a height of 490 μm.
With a wide operating temperature from -40°C to 85°C and power dissipation capped at 364 mW, this device fits demanding environmental conditions and energy-efficient designs. It incorporates an internal low-power 32 kHz RC oscillator and multiple phase locked loops (PLLs) that facilitate clock management for USB, audio, and ADC functions.
Designed for industrial, laboratory, automotive, and embedded systems use, the STM32L4R5QII6 supports advanced security with memory protection units and DSP instructions for signal processing tasks.
ARM Cortex M4 core with FPU for high computational efficiency. 2MB of flash memory for robust program storage. 640kB RAM allows for advanced data handling and multitasking. Supports USB, audio, and ADC interfaces natively for flexible application integration.
Ultra-low power consumption with fast wake-up times suited for battery-operated systems. Wide temperature range supports harsh operational environments. Compact 132-Pin UFBGA package enables space-saving designs.
STMicroelectronics continues to provide quality microcontrollers trusted in automation, medical devices, consumer electronics, and automotive control units. Explore more STM32L4+ Microcontrollers and related products in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 120 MHz.
It has a program memory size of 2MB, which is FLASH type for robust firmware storage.
This model includes 640 kB of RAM for efficient data processing.
It comes in a 132-Pin Ultra Fine Ball Grid Array (UFBGA) package, measuring 7.15 mm by 7.15 mm with a height of 490 μm.
The STM32L4R5QII6 supports USB, audio, and ADC interfaces natively for flexible application integration.
It operates within a temperature range of -40°C to 85°C, making it suitable for harsh environments.
This microcontroller features 16 channels of 12-bit ADCs for high-resolution analog to digital conversion.
The maximum power dissipation is capped at 364 mW.
It is based on the ARM Cortex M4 architecture, which includes a single-precision floating-point unit.
This model has 136 programmable I/Os available for various applications.
It includes 2 x 12-bit DACs for analog output functionality.
It is designed for use in industrial, automotive, laboratory, and embedded systems applications.
