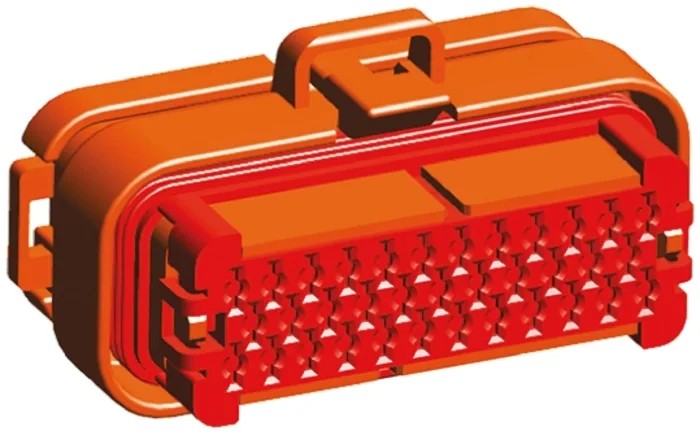

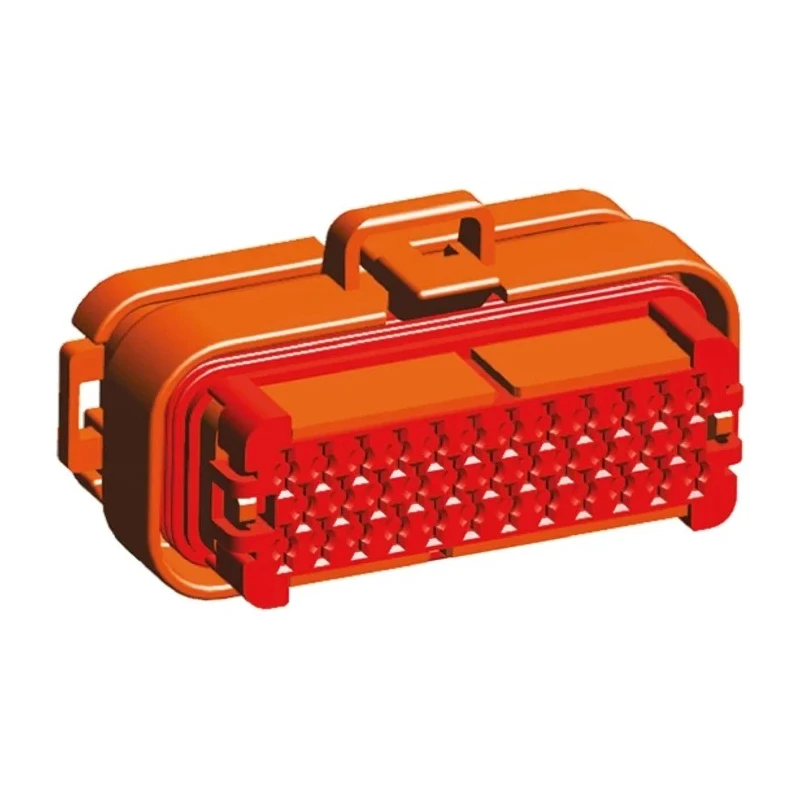

TE Connectivity Ampseal Automotive Connector Male Orange Cable 35 Way Crimp Termination 776164-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Orange |
| Current | 13A |
| Height | 34.6mm |
| Model | 776164-6 |
| Depth | 33.6mm |
| IP Rating | IP6K9K |
| Width | 63.4mm |
| Gender | Male |
| Mount Type | Cable |
| Housing Material | PBT |
| Series | Ampseal |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Standards/Approvals | EU RoHS, EU ELV |
| Contact Plating | Gold |
| Number of Contacts | 35 |
Key Features
- This male automotive connector features 35 contacts in a sturdy Ampseal series housing.
- It is designed for crimp termination and accepts wire sizes from 0.5 to 1.25 mm².
- The connector provides a rated current of 13A with gold plated contacts for superior conductivity.
- Operating temperature ranges from -40°C to 125°C, suitable for tough environments.
- It has an IP6K9K rating, ensuring resistance to dust, sand, and powerful water jets.
- The housing material is durable PBT plastic colored orange for easy identification.
- The connector includes a 2-piece contact hold with secondary locking to prevent contact damage.
- Widely used in off-road automotive, heavy industrial, and agricultural applications.
Product Description
TE Connectivity 776164-6 Ampseal Automotive Connector Male is a high-performance, rugged automotive connector designed for reliable electrical connections in harsh conditions. This 35-way connector is part of the Ampseal series known for outstanding durability and environmental protection.
Featuring a male gender and crimp termination type, this connector accepts wire sizes from 0.5 to 1.25 mm². The gold-plated contacts ensure high conductivity and corrosion resistance, while the dual-piece contact hold with secondary locking prevents accidental contact dislodging under vibration or mechanical stress.
The housing is produced from tough PBT plastic with an orange color to aid in quick visual identification. It is rated IP6K9K, meaning it is fully dust-tight and able to resist powerful water jets, making it ideal for off-road automotive, industrial machinery, and agricultural equipment where exposure to harsh environments is common.
Operating temperature spans from -40°C up to +125°C, ensuring stable performance in extreme climates. The connector dimensions are 63.4 mm wide, 34.6 mm high, and 33.6 mm deep with 3 rows of contacts organized to optimize space while delivering the 35 contact points.
This Automotive Connector is widely employed in off-road vehicles, heavy-duty industrial equipment, and agricultural applications. The Ampseal series design incorporates an integrated latch for secure mating and exceptional mechanical retention.
Compliant with EU RoHS and EU ELV standards, ensuring environmental safety and quality. Ideal for demanding electrical wiring harnesses requiring robust electrical and mechanical performance. Explore a wide range of automotive electrical connectors and accessories in the EnvMart Electronics & Electricals category for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This automotive connector has a rated current of 13A, making it suitable for various applications requiring reliable electrical connections.
It accepts wire sizes ranging from 0.5 to 1.25 mm², allowing for flexibility in wiring configurations.
The connector operates effectively within a temperature range of -40°C to 125°C, suitable for extreme environmental conditions.
It has an IP6K9K rating, indicating it is fully dust-tight and can withstand powerful water jets, making it ideal for harsh environments.
The housing is constructed from durable PBT plastic, which provides resistance to environmental factors and aids in longevity.
This model features 35 contacts organized in 3 rows, optimizing space while ensuring reliable connectivity.
It uses a crimp termination type, which is designed for secure and reliable electrical connections.
The connector housing is orange, which aids in quick visual identification in various applications.
It complies with EU RoHS and EU ELV standards, ensuring it meets environmental safety and quality requirements.
It is widely used in off-road vehicles, heavy-duty industrial equipment, and agricultural applications due to its rugged design.
The dimensions of this connector are 63.4 mm in width, 34.6 mm in height, and 33.6 mm in depth, making it compact for various installations.
